Gear Sensor/Switch: Service and Repair

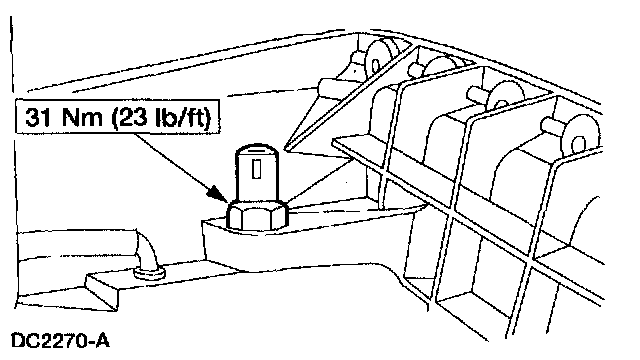

Mode Indication Switch

Removal and Installation
1. Raise and support the vehicle.

2. Disconnect the wiring harness connector.

3. Remove the mode indication switch.
4. To install, reverse the removal procedure.
