Center Registers

REMOVAL

NOTE: The center register barrels can be separately serviced. Removal of the instrument panel center finish panel is not required.

1. Remove the climate control assembly.

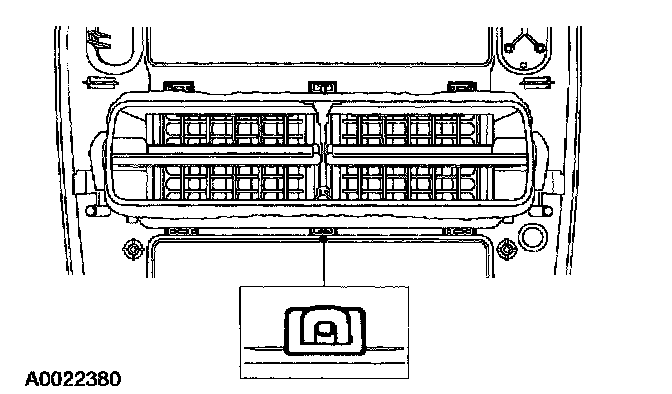

2. Remove the center registers.
- Disengage the retaining tabs.

INSTALLATION
1. To install, reverse the removal procedure.
