Test G: AntiTheft Indicator Is Always/Never On

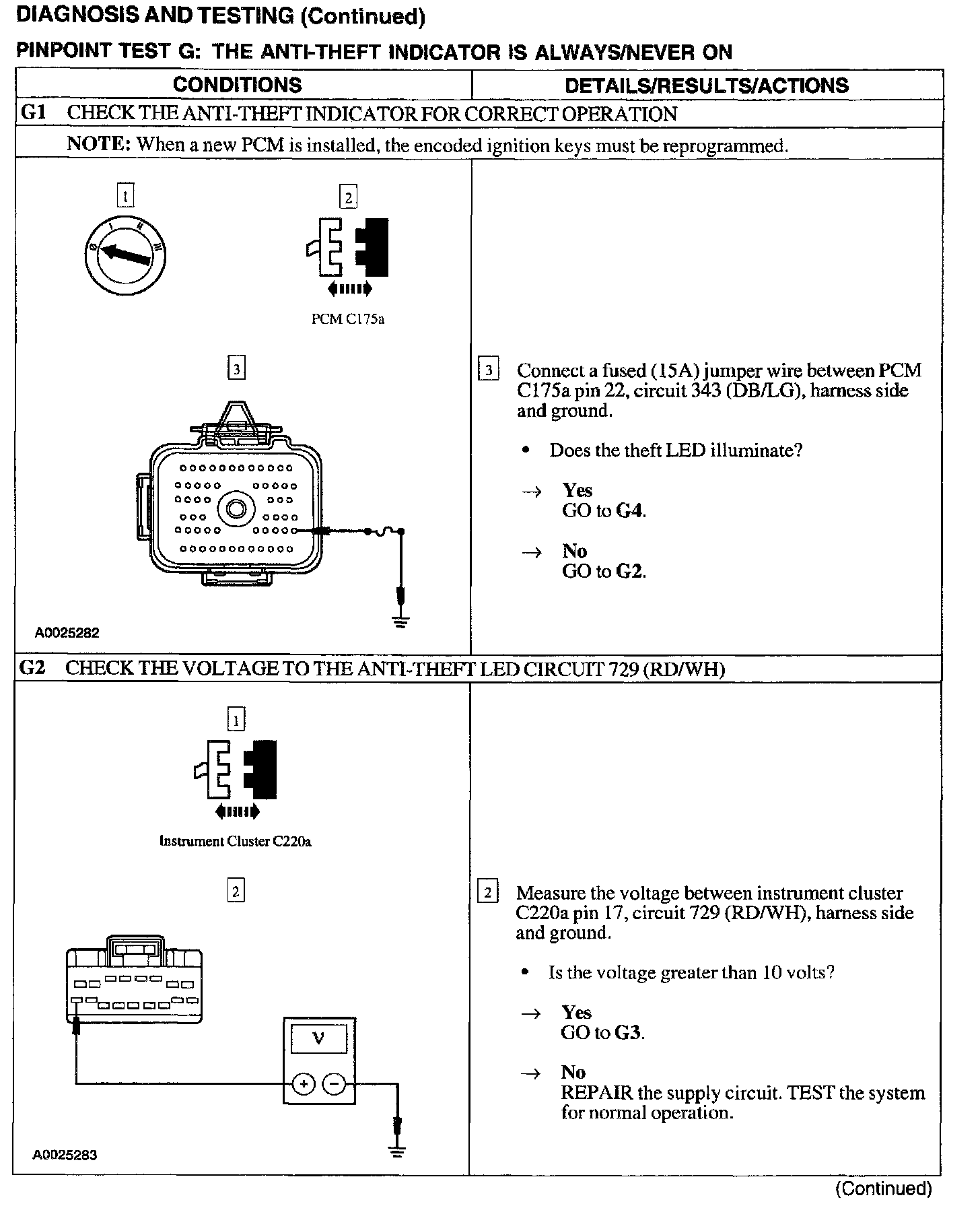

G: Anti-Theft Indicator Is Always/Never ON - No Anti-Theft Indicator Prove Out/ G1 - G2:

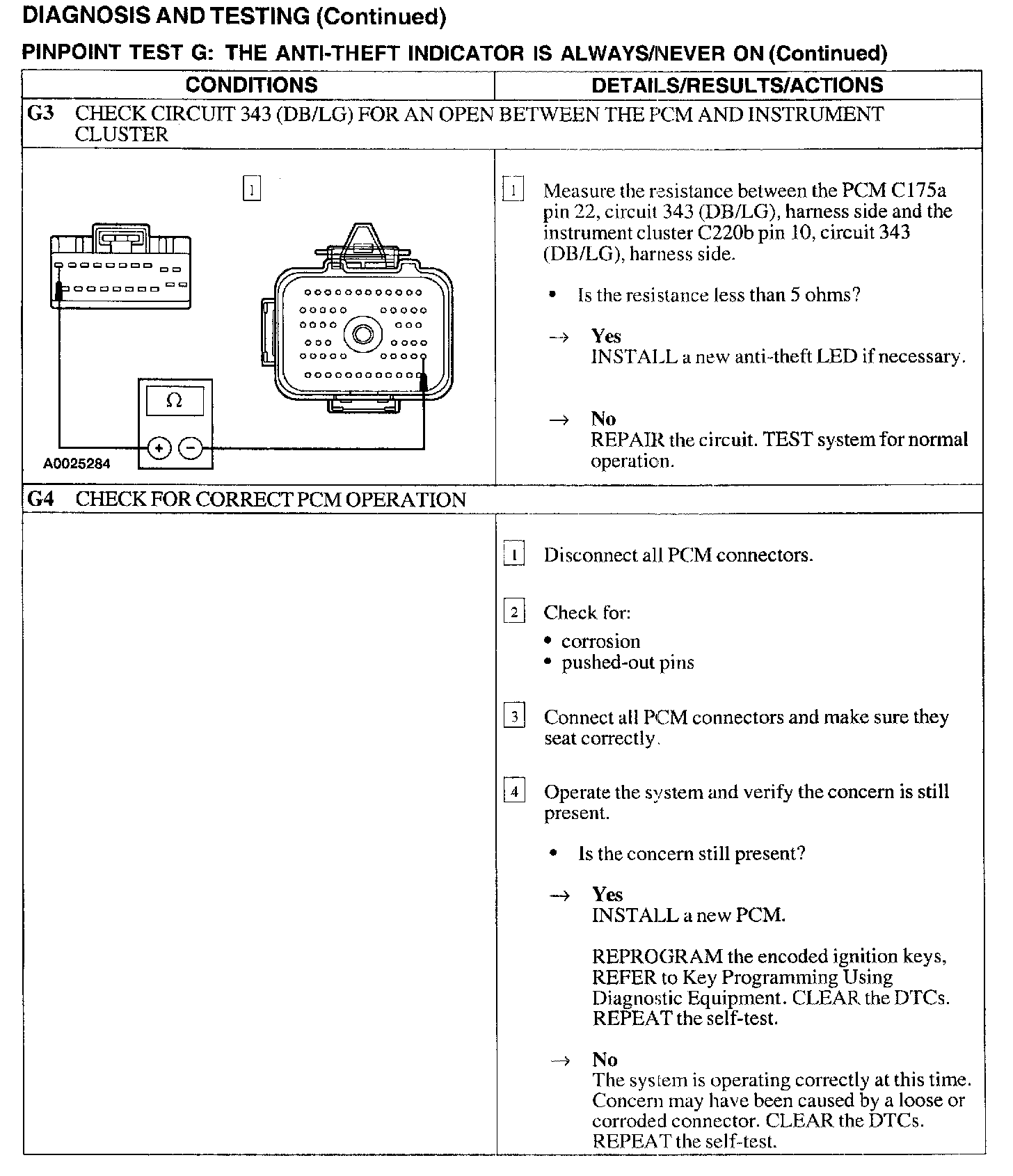

G: Anti-Theft Indicator Is Always/Never ON - No Anti-Theft Indicator Prove Out / G3 - G4:
