Home >> Ford >> 2002 >> Explorer 4WD V8-4.6L VIN W >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Power Trunk / Liftgate Lock Actuator >> Locations

Power Trunk / Liftgate Lock Actuator: Locations

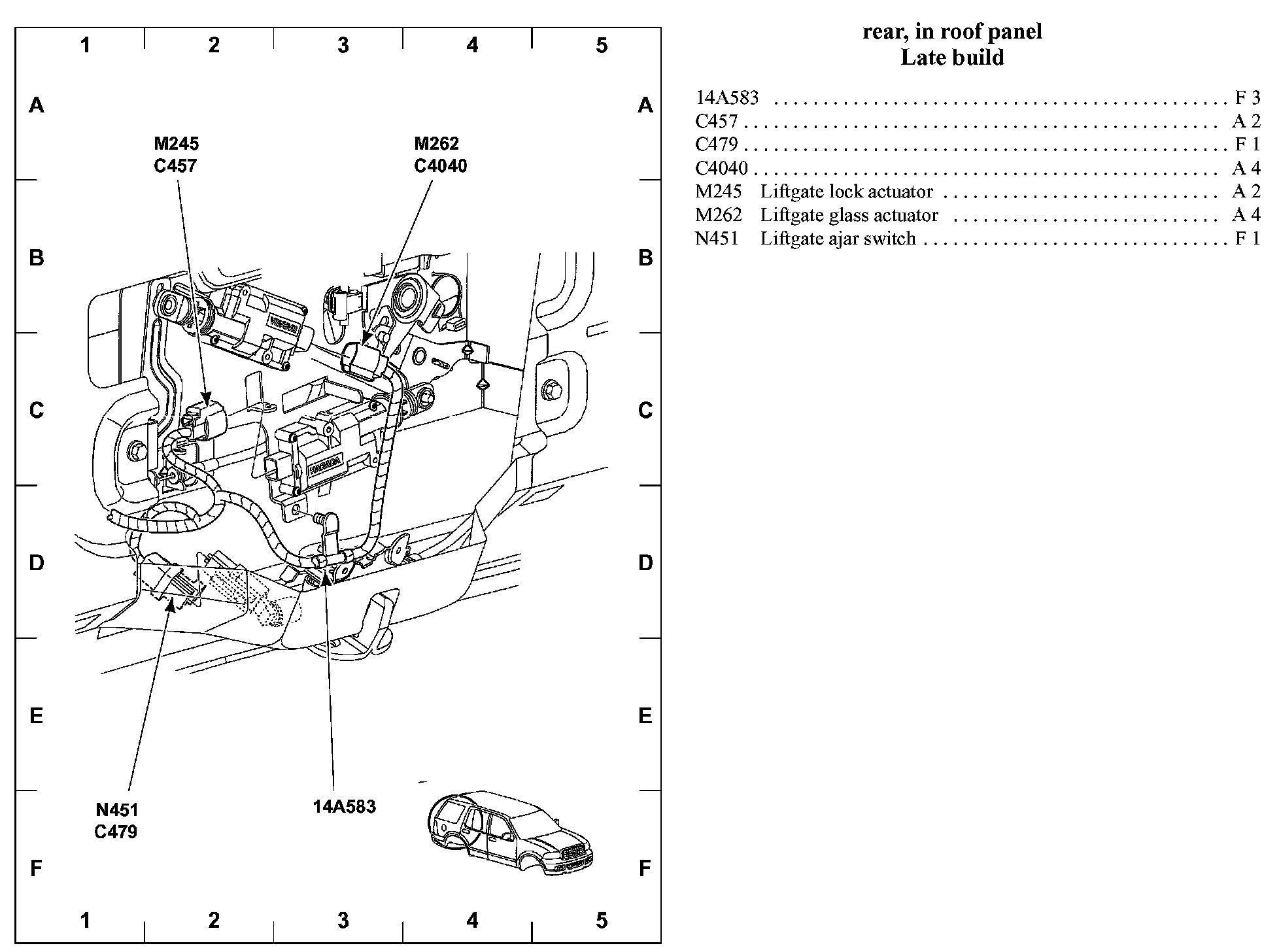

View 151-64 (Rear, In Roof Panel Late Build):
