Rear Seat - 60/40 Bench, Second Row

REAR SEAT - 60/40 BENCH, SECOND ROW

Removal

NOTE: 40 percent seat shown, 60 percent seat is similar.

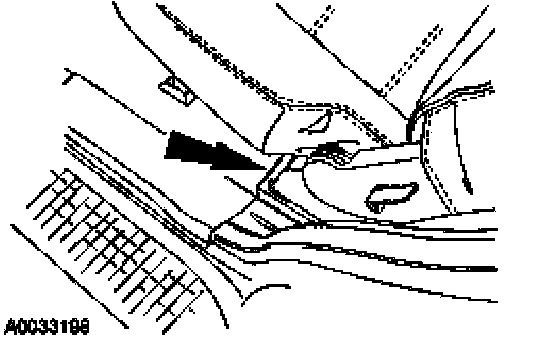

1. Remove the outboard trim cover.







2. Remove the two rubber bolt caps. Remove the two front nuts.







3. Fold the seat forward. Remove the rubber bolt cap, one rear nut and one rear bolt.







4. Remove the pivot shaft from the eyelet.
5. Remove the seat from the vehicle.

Installation
1. To install the seat, reverse the removal procedure.
