Test A: Loss of Coolant
Test A: Loss of Coolant
PINPOINT TEST A: LOSS OF COOLANT

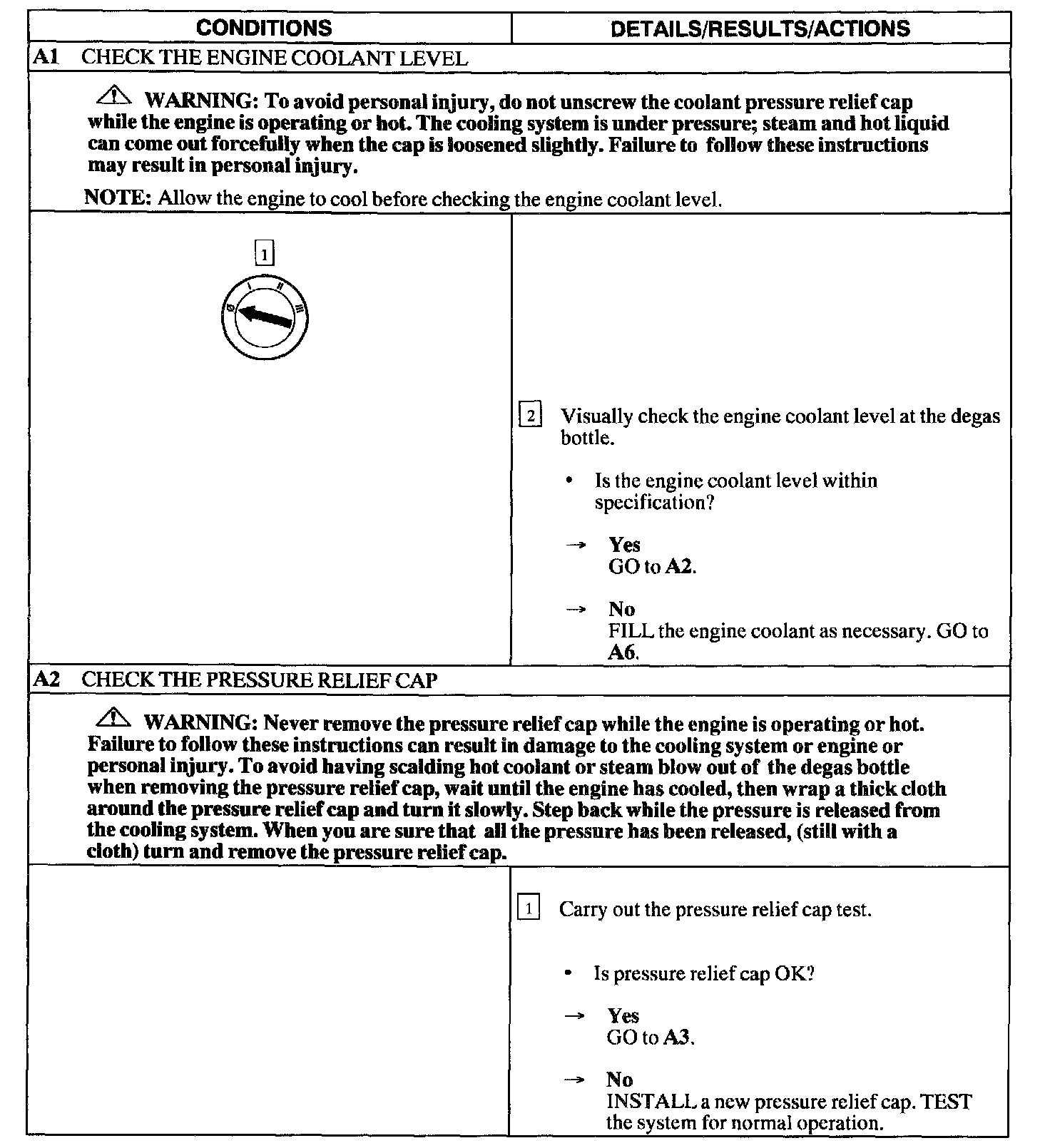

A1 - A2

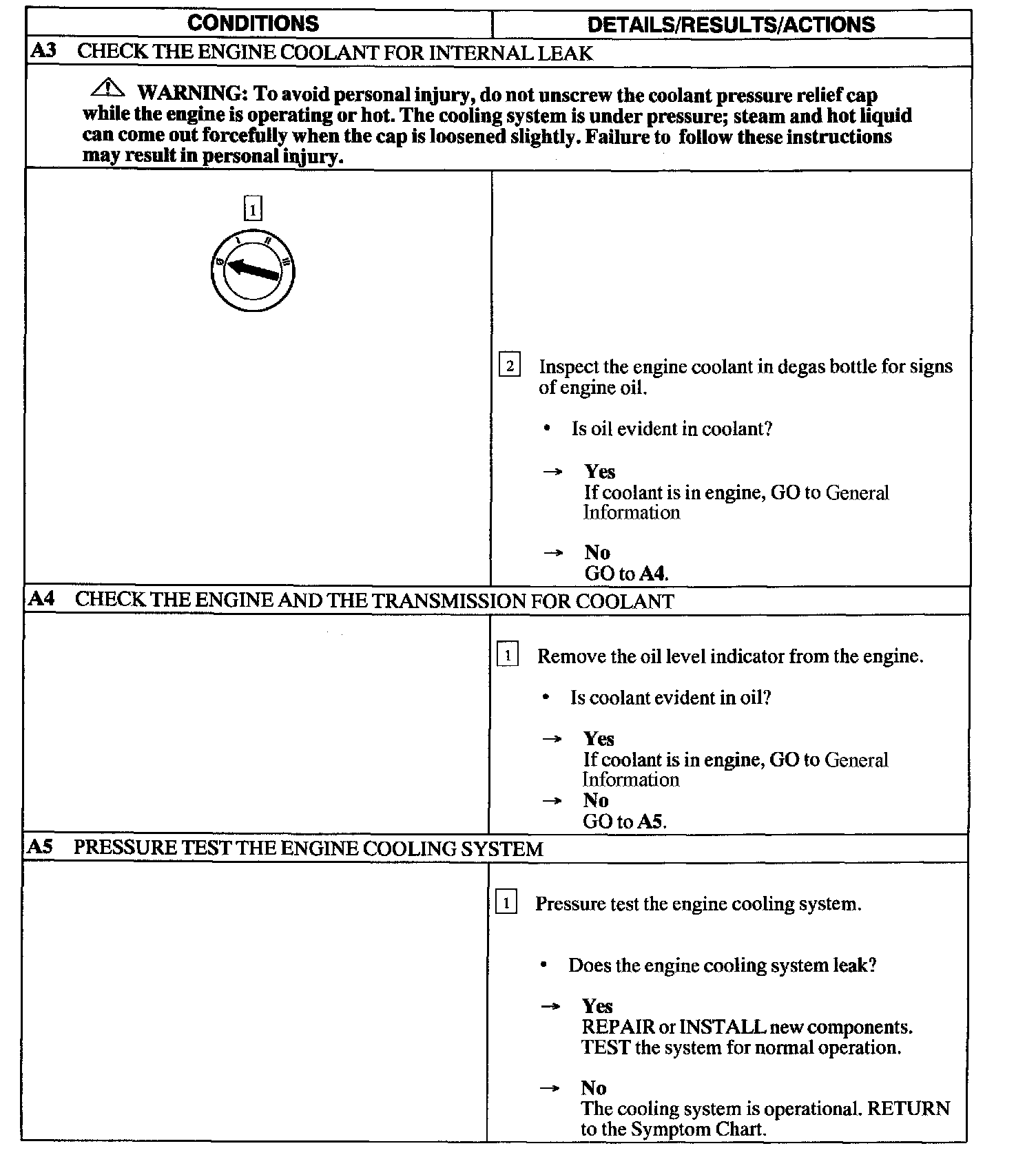

A3 - A5

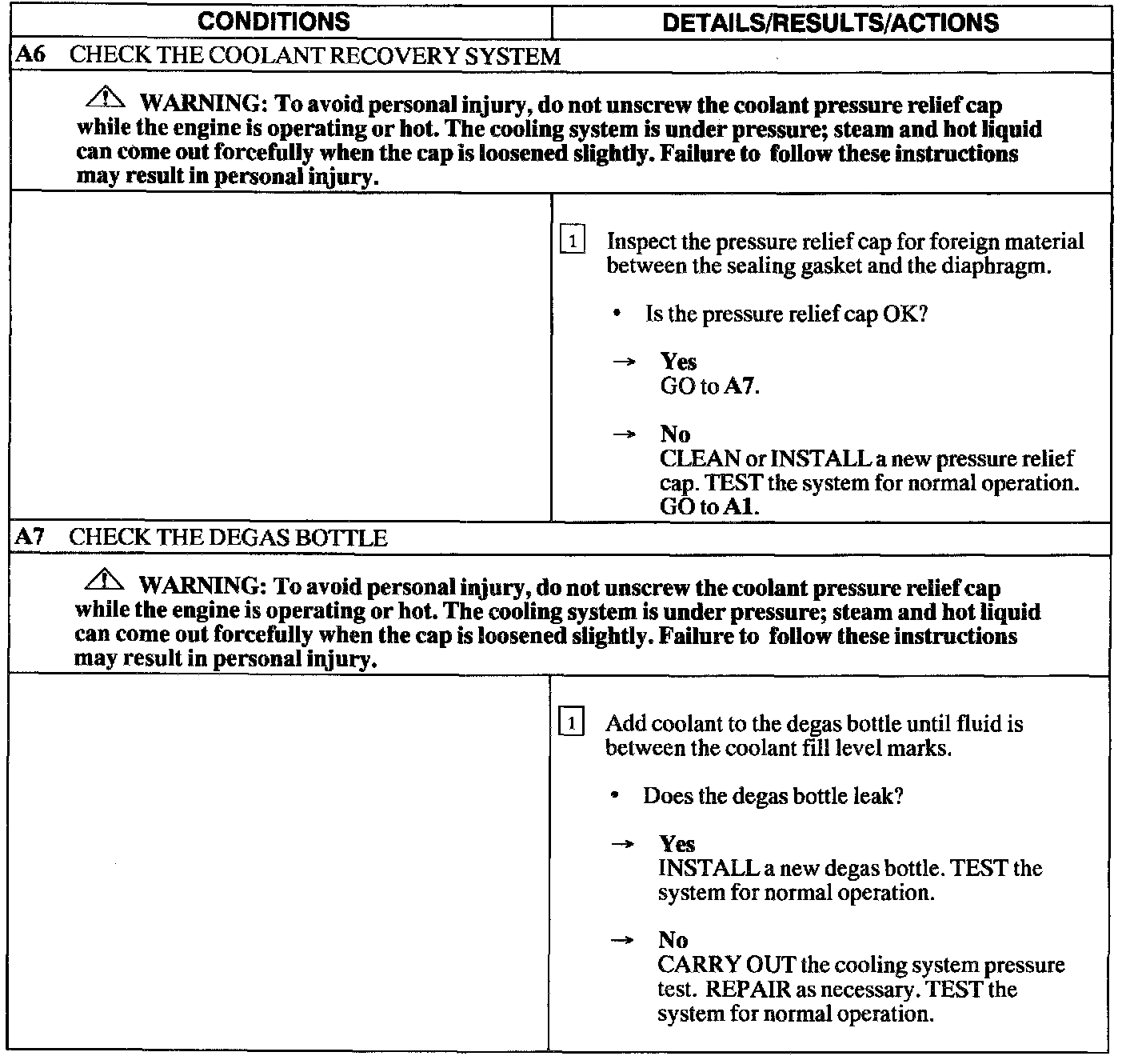

A6 - A7
