Auxiliary Climate Control System
Auxiliary Climate Control System

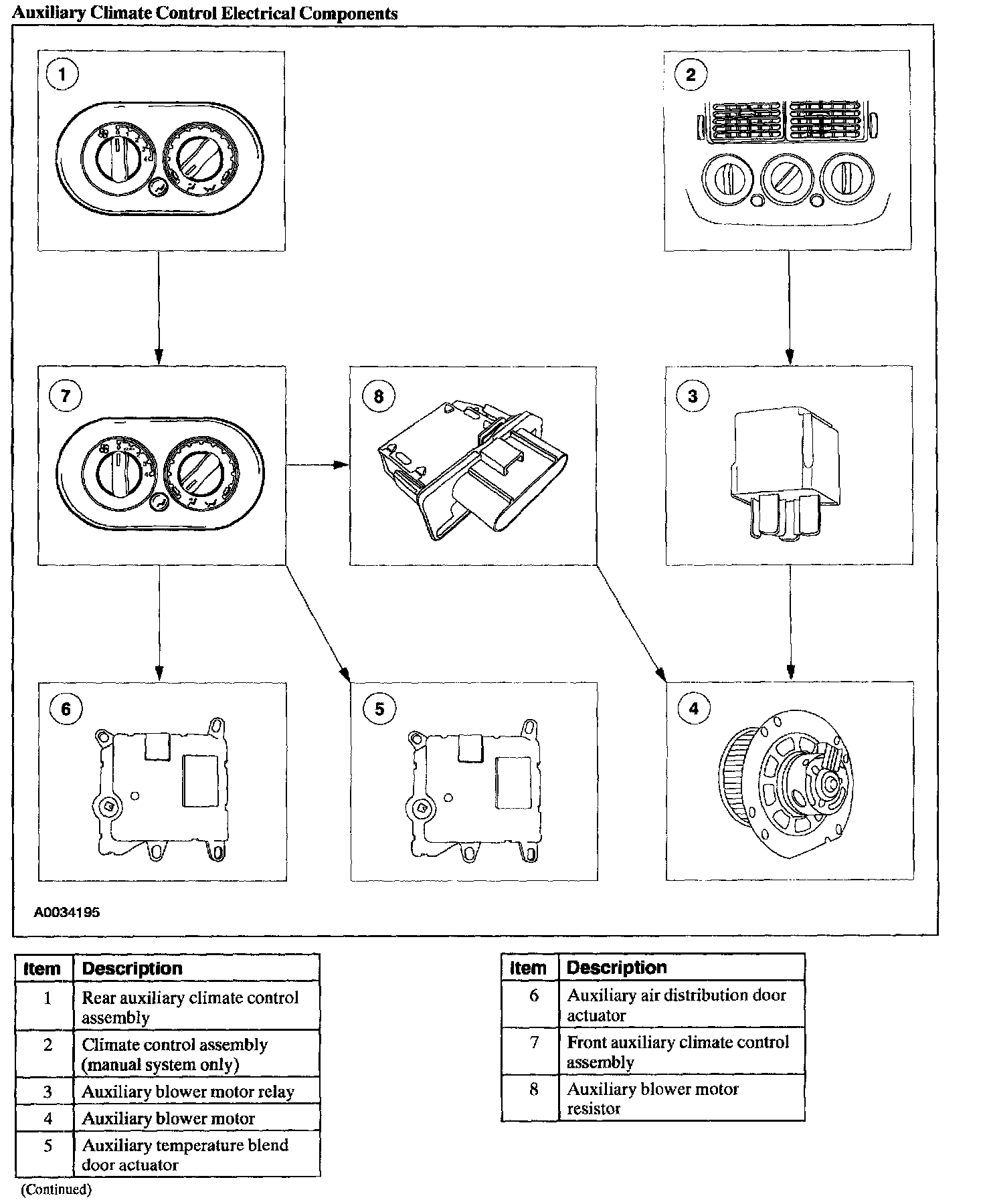

Auxiliary Climate Control Electrical Components:
