Solar Sensor
>>
Locations
Solar Sensor: Locations

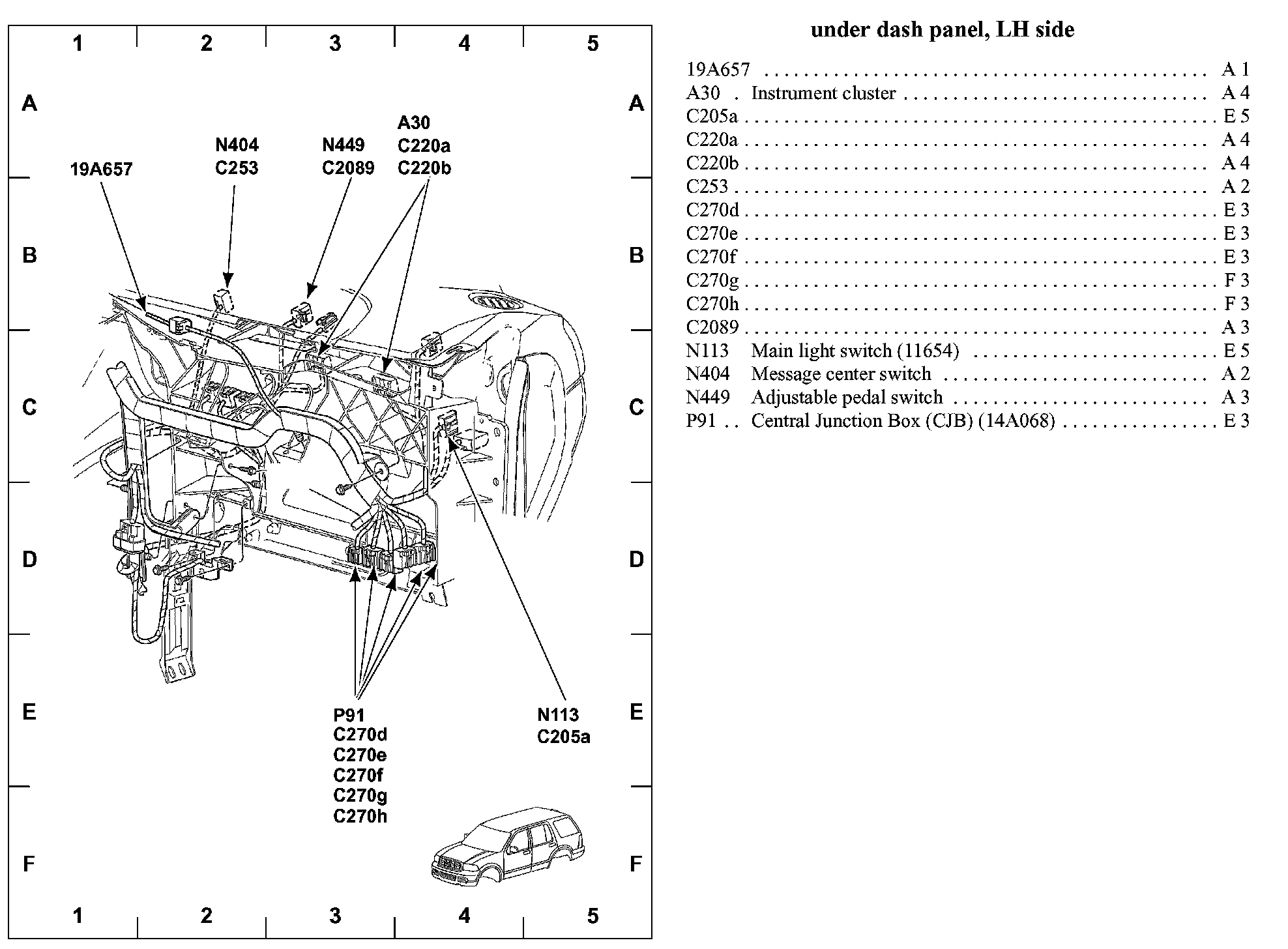

View 151-40 (Under Dash Panel, LH Side):

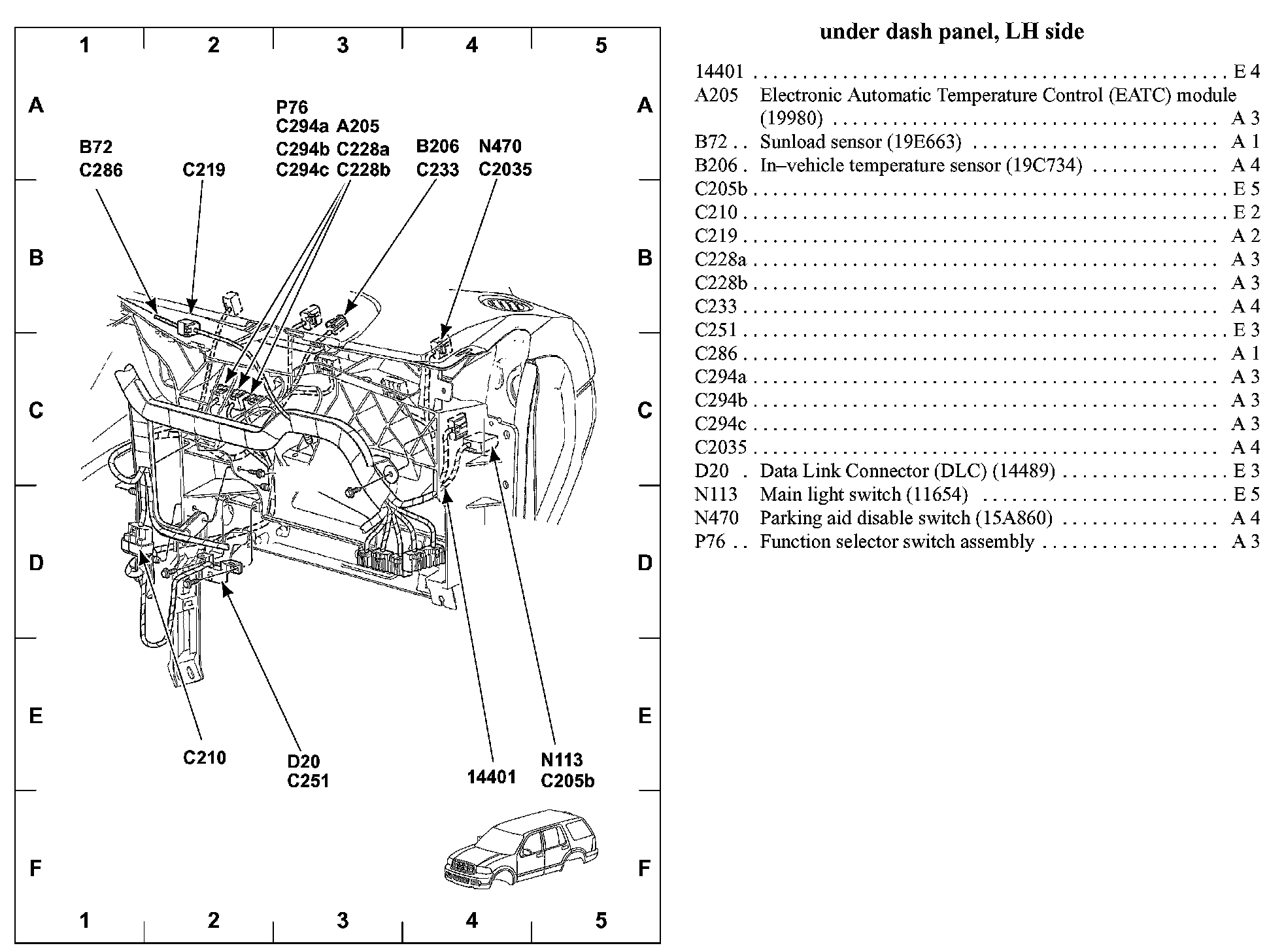

View 151-41 (Under Dash Panel, LH Side):

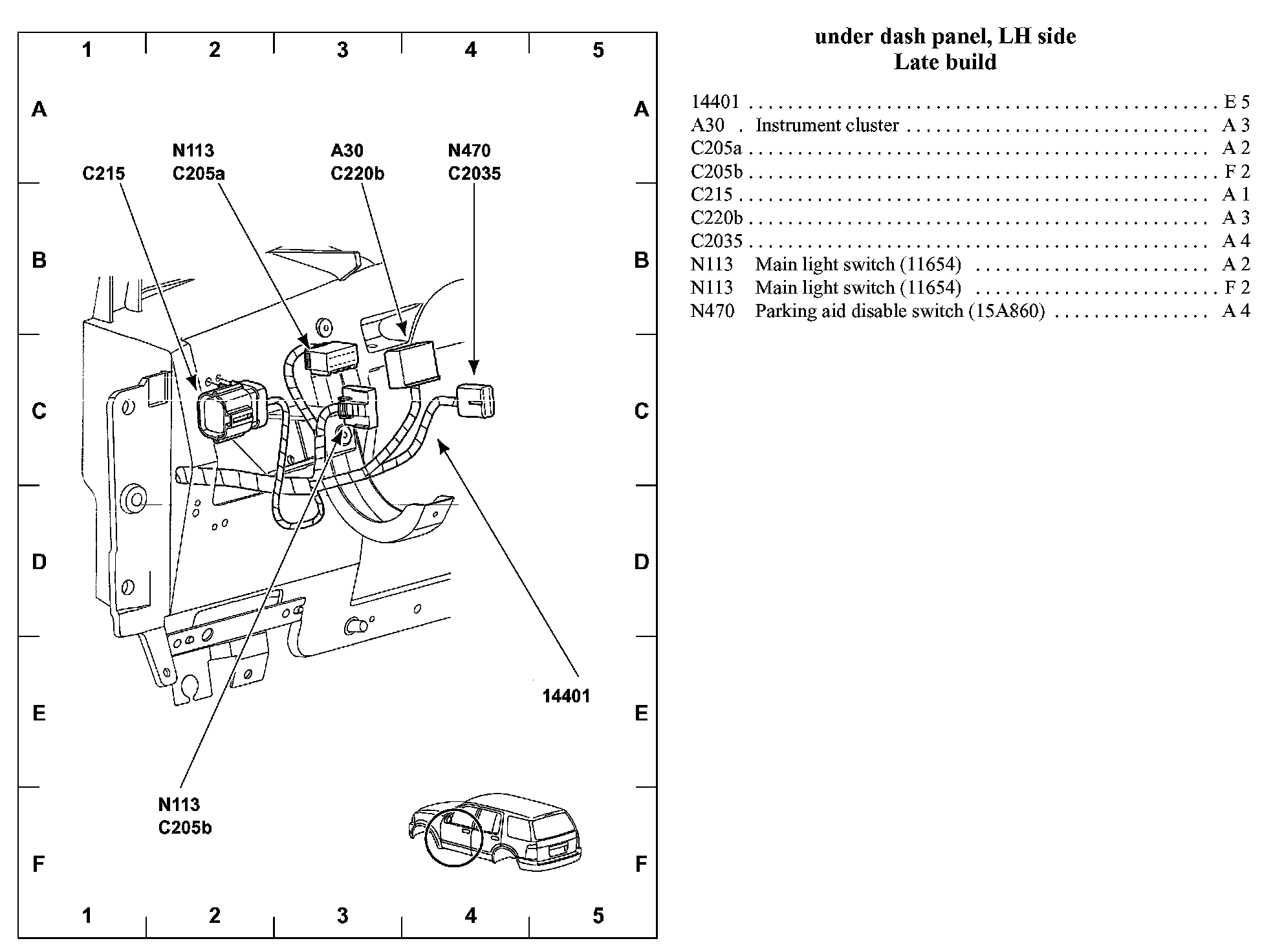

View 151-43 (Under Dash Panel, LH Side Late Build):
