Test J: B2268 - Steering Wheel Climate Control Circuit Open
Test J: B2268 - Steering Wheel Climate Control Circuit Open

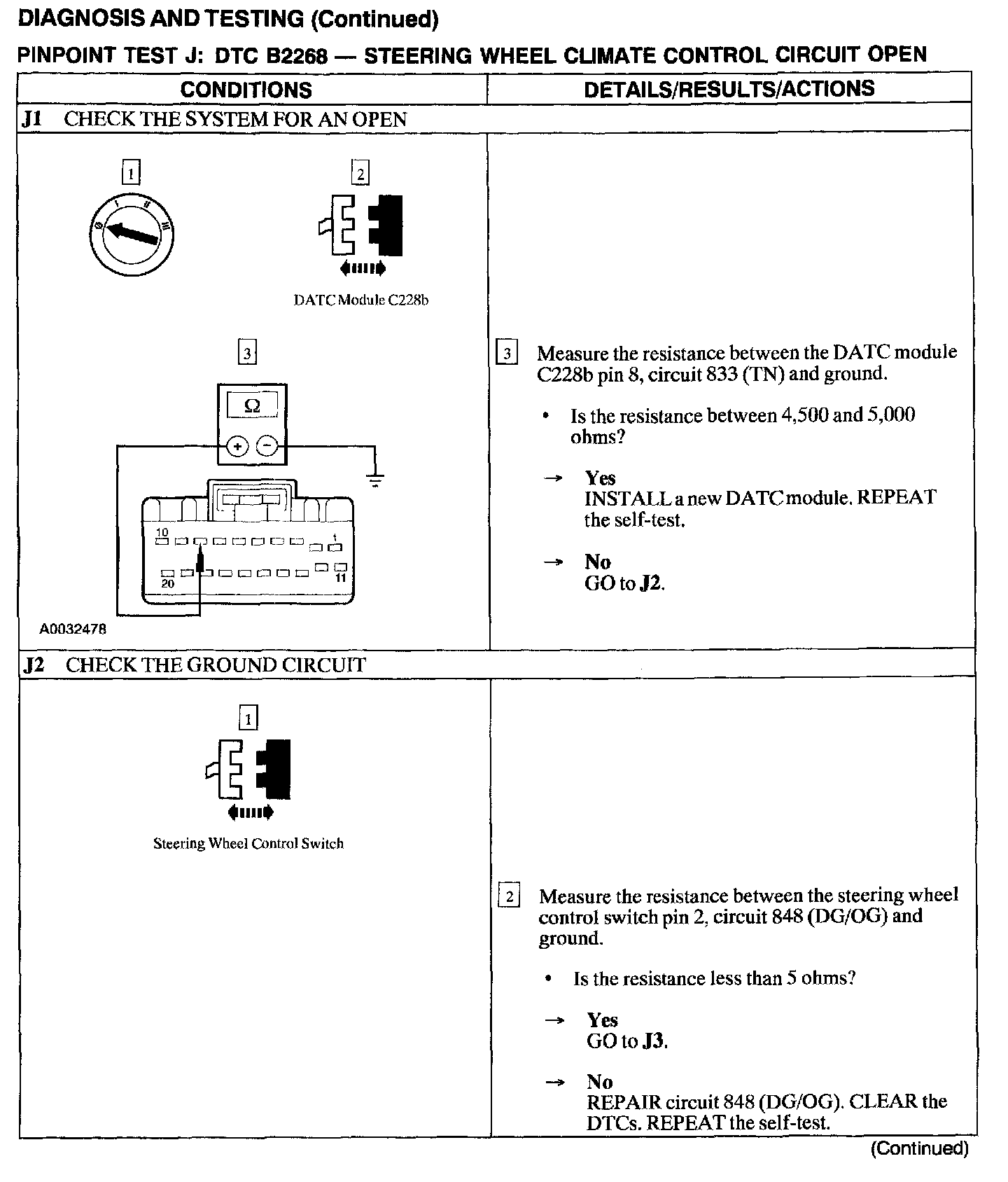

J1 - J2:

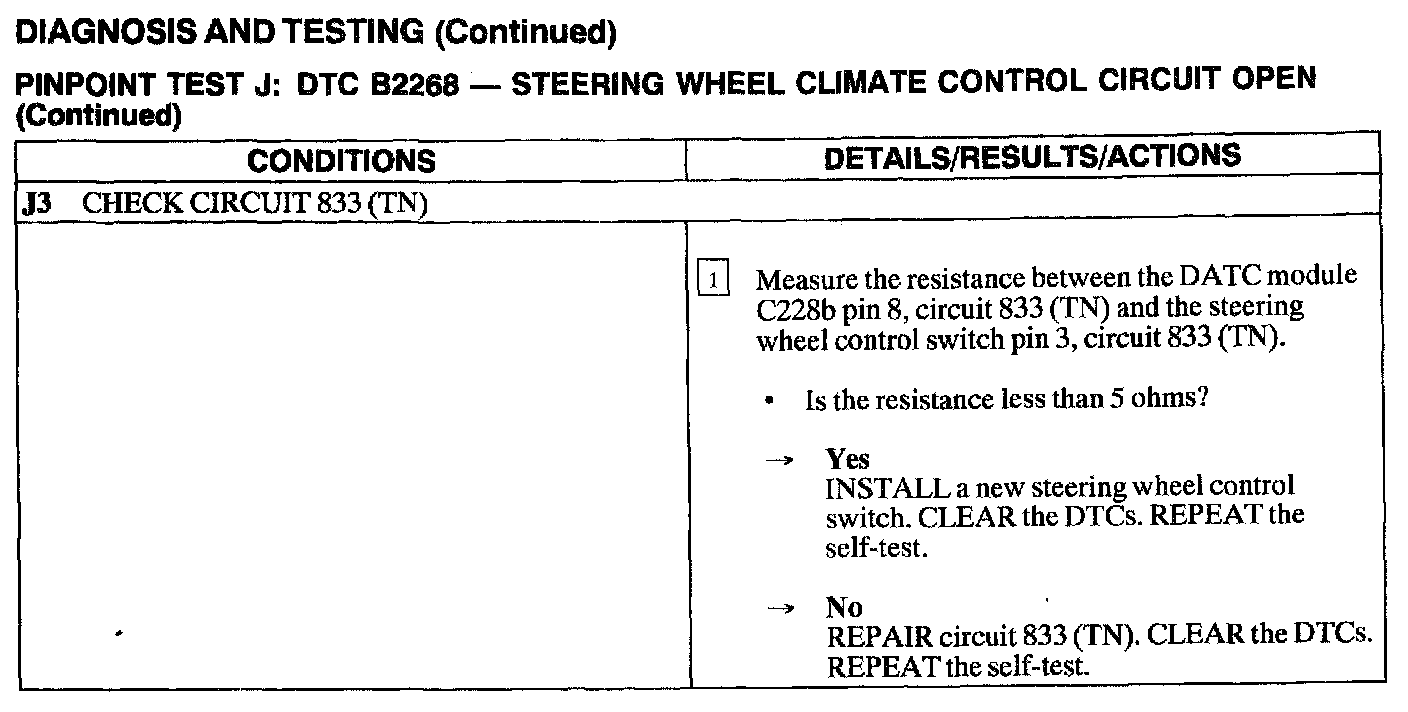

J3:
