Trouble Code Diagnostic Charts - Late Build - Instrument Cluster
Trouble Code Diagnostic Charts - Late Build - Instrument Cluster

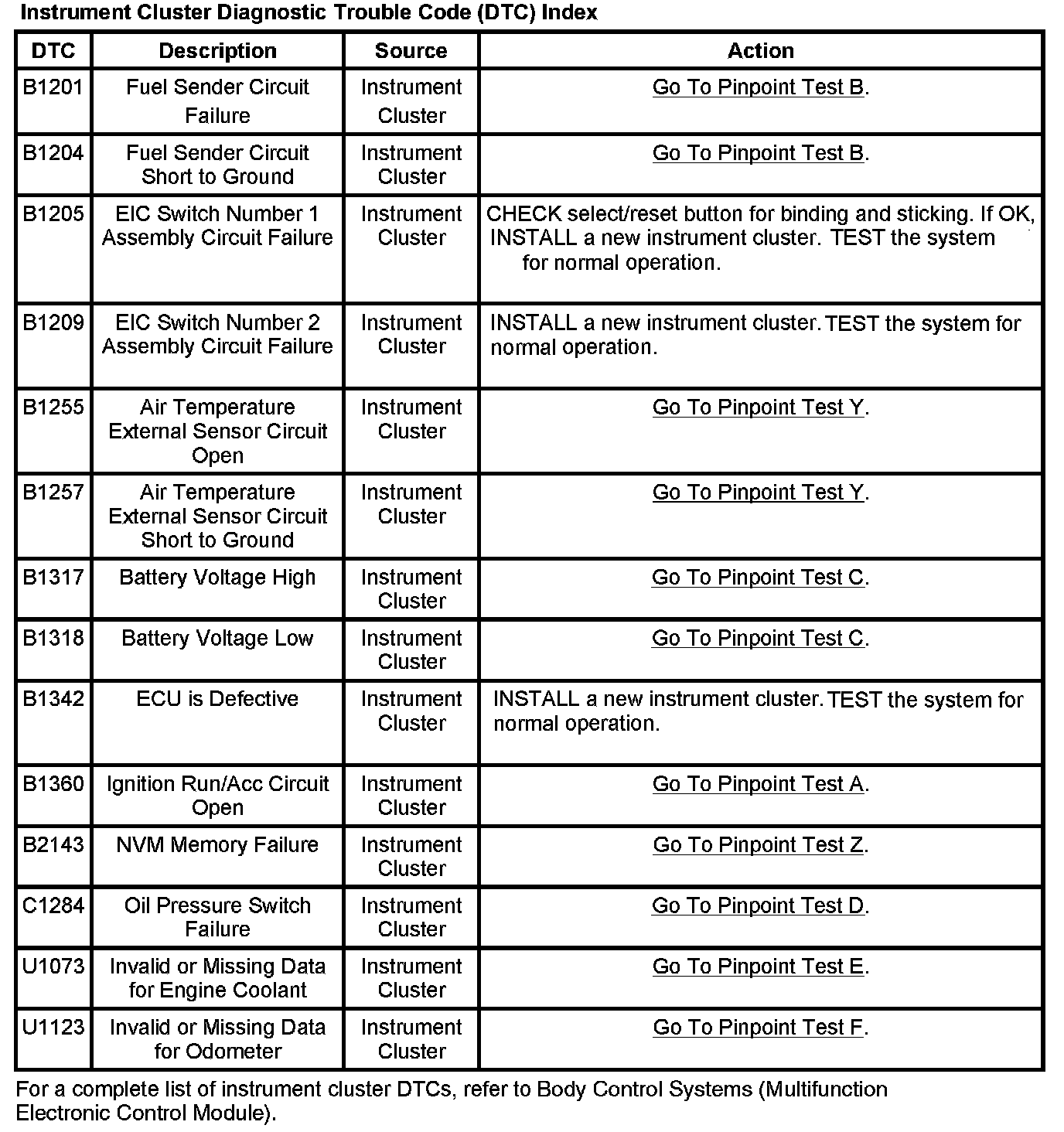

B1201-U1123:
