Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
Explorer 4WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Early Build - Instrument Cluster
>>
Tests AM: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)
Tests AM: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)

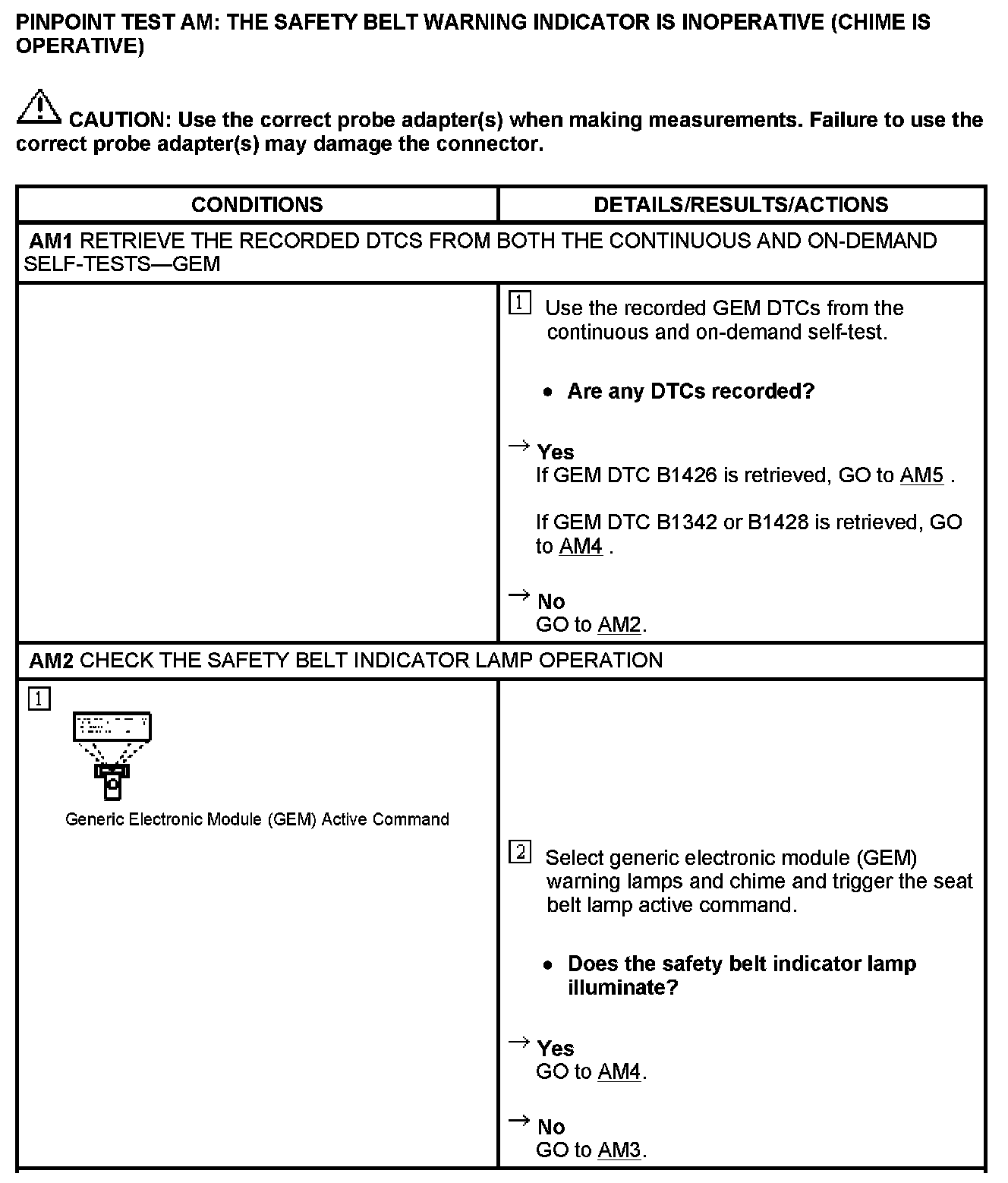

PINPOINT TEST AM: THE SAFETY BELT WARNING INDICATOR IS INOPERATIVE (CHIME IS OPERATIVE)
AM1-AM2:

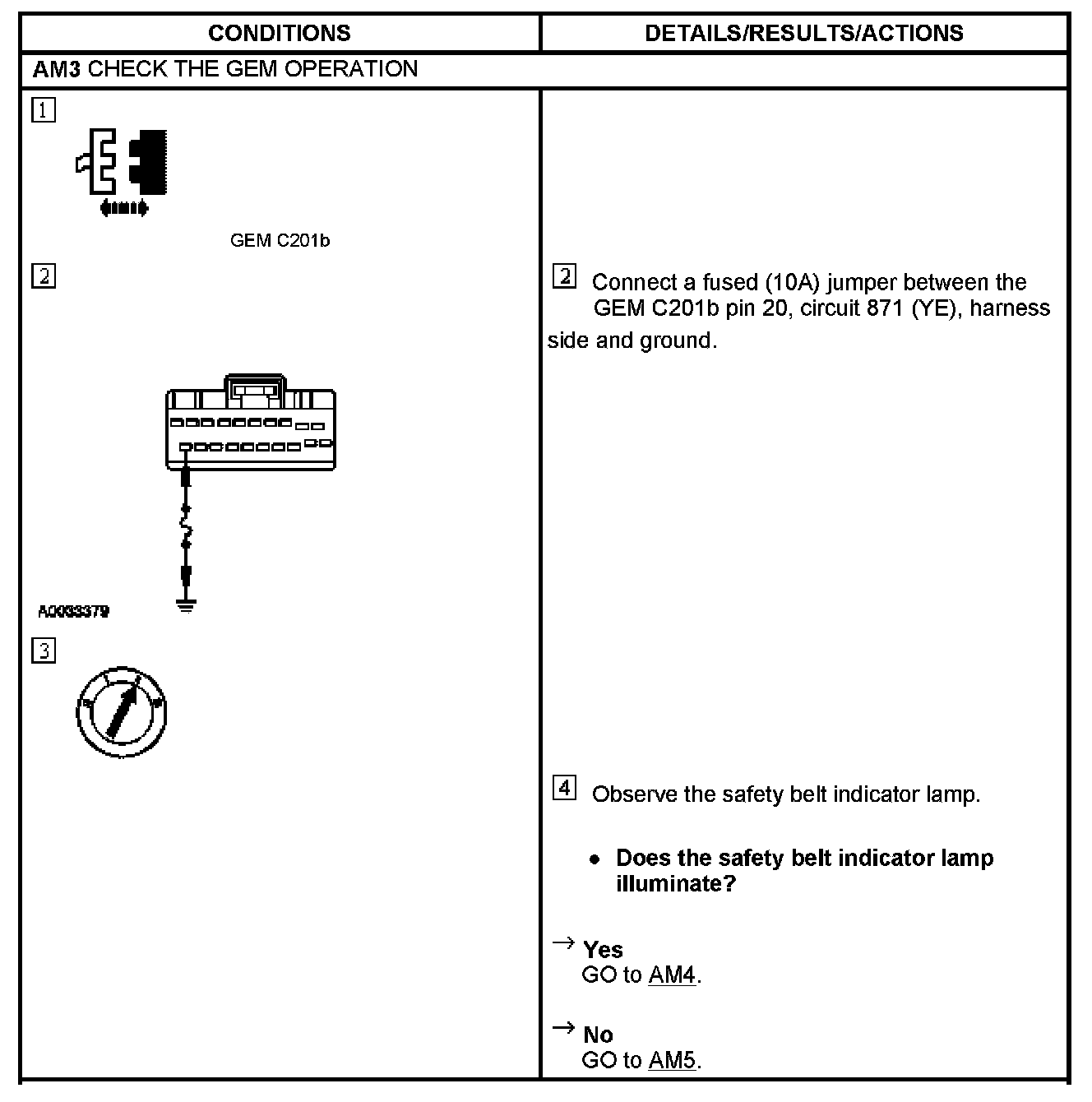

AM3:

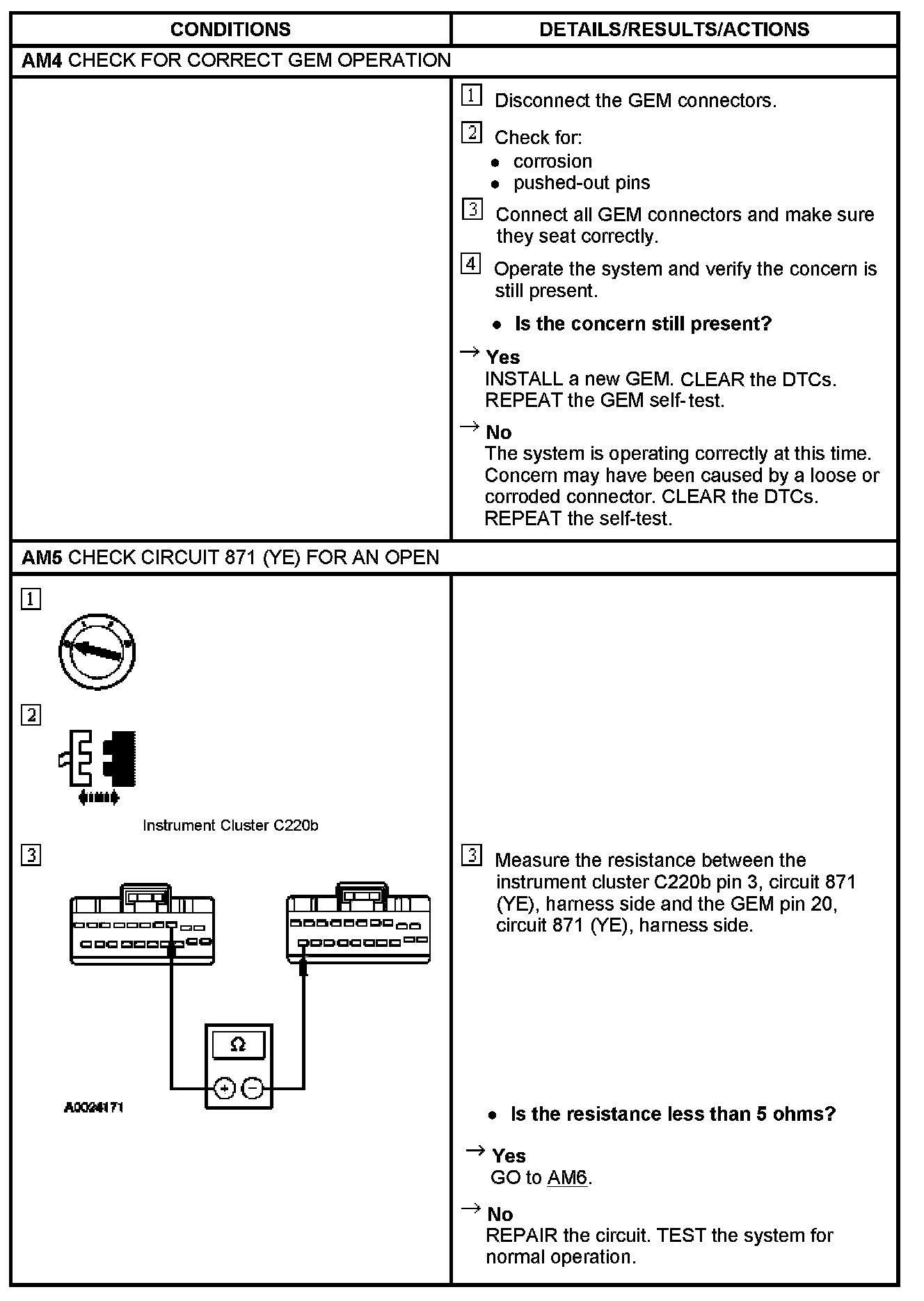

AM4-AM5:
AM6:

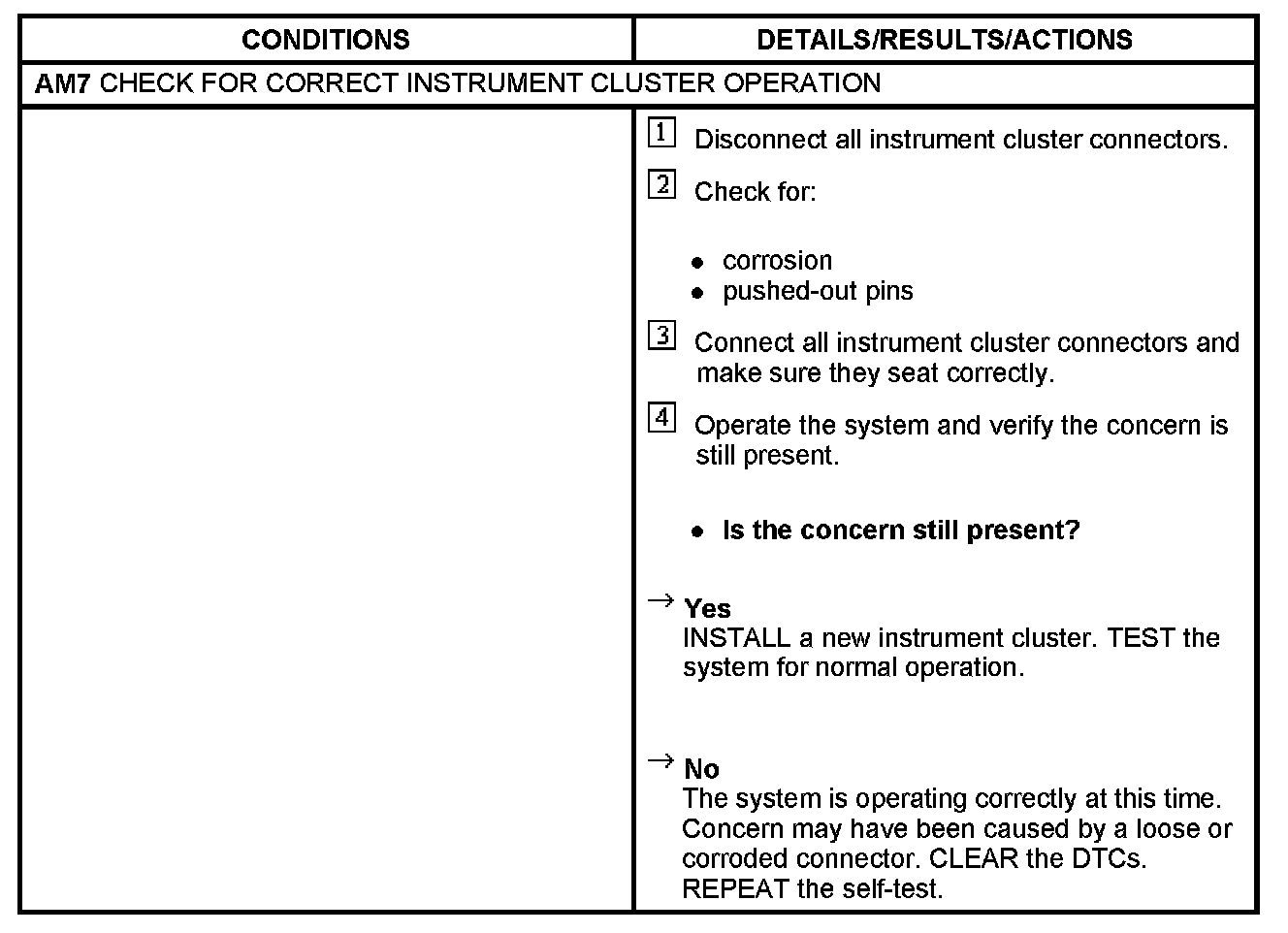

AM7:
