Home >> Ford >> 2002 >> Explorer 4WD V8-4.6L VIN W >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Daytime Running Lamp Relay >> Diagrams

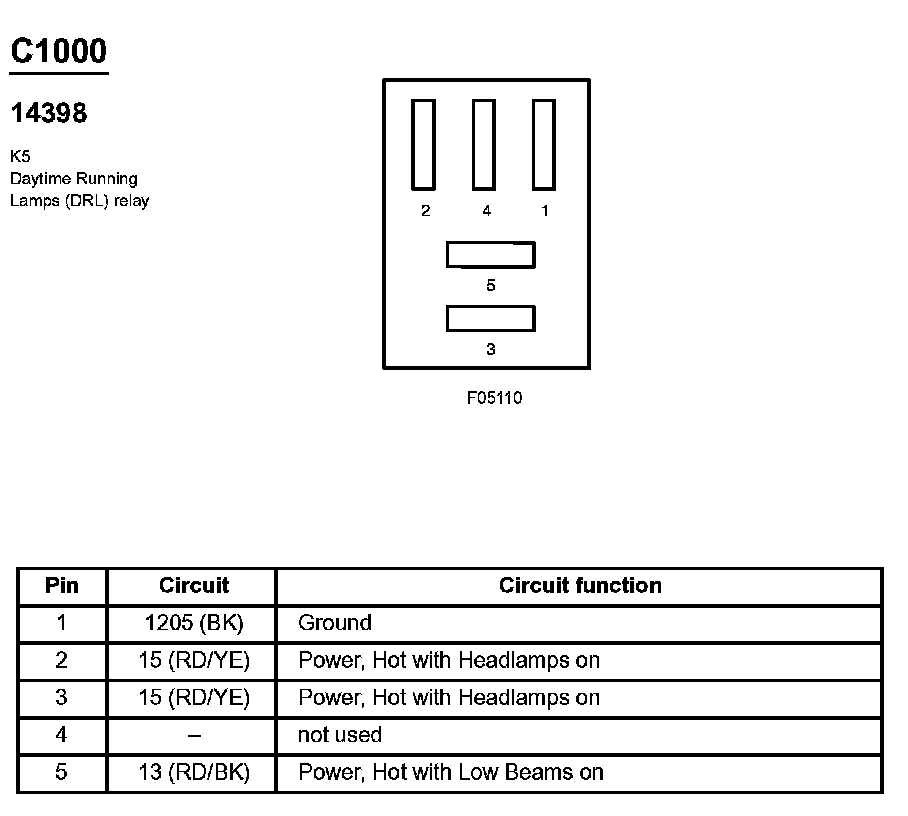

Daytime Running Lamp Relay: Diagrams
