M/T - Shudder/Vibration On 2nd/3rd Gear Acceleration
TSB 04-14-1307/26/04
4X4 MANUAL TRANSMISSION - SHUDDER DURING
2ND AND 3RD GEAR ACCELERATION
FORD:
2002 Explorer
ISSUE
Some 2002 4X4 Explorer 4 door with manual transmissions, may exhibit a shudder/vibration when accelerating in 2nd and 3rd gear. The condition occurs more frequently when accelerating at higher throttle positions and/or on a grade.
ACTION

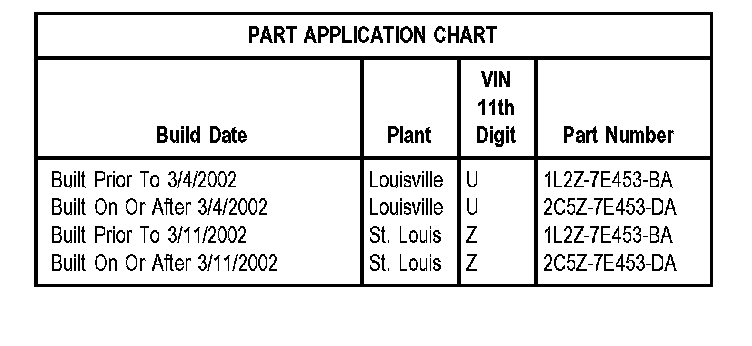

To service, replace the 4X4 control module. Refer to the Part Application Chart.
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
DEALER CODING
CONDITION
BASIC PART NO. CODE
7E453 42
