Test G: LFC 33 and 34/DTC B2292 - Restraint System - Safety Belt Pretensioner Status - Vehicles Built Up to 03/2002

PINPOINT TEST G: LFC 33 AND 34/DTC B2292 - RESTRAINT SYSTEM - SAFETY BELT PRETENSIONER STATUS - VEHICLES BUILT UP TO 03/2002

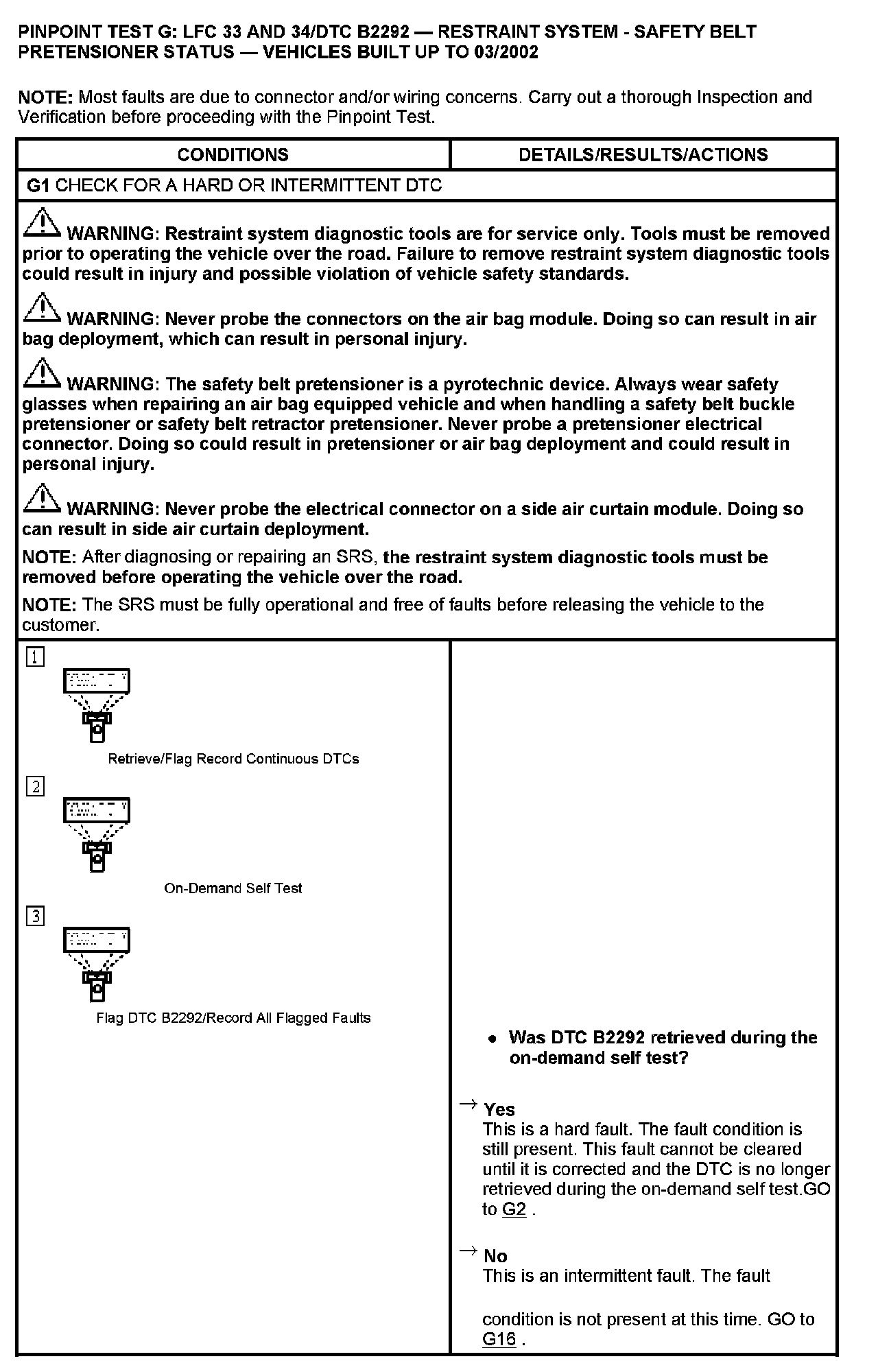

G1:

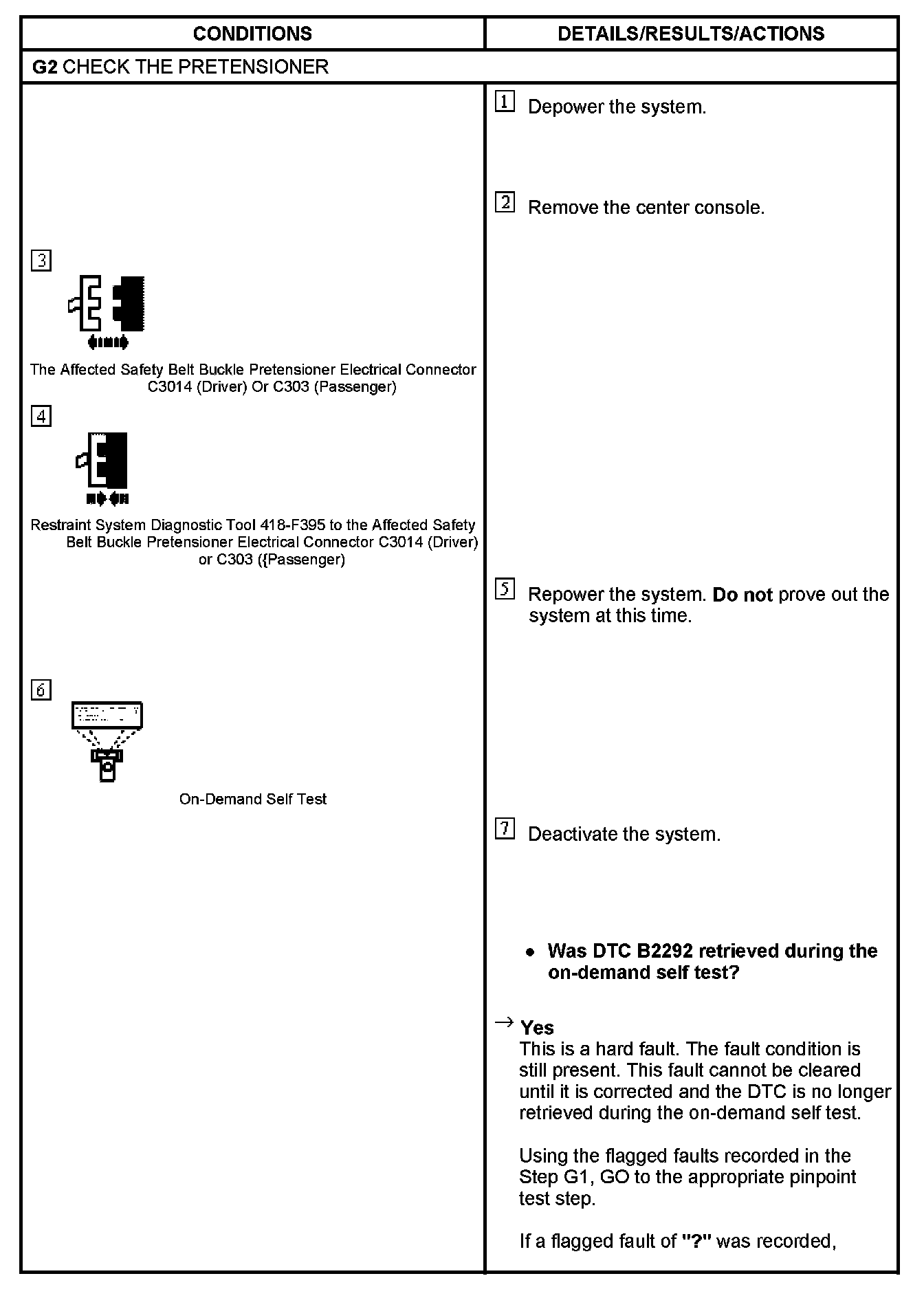

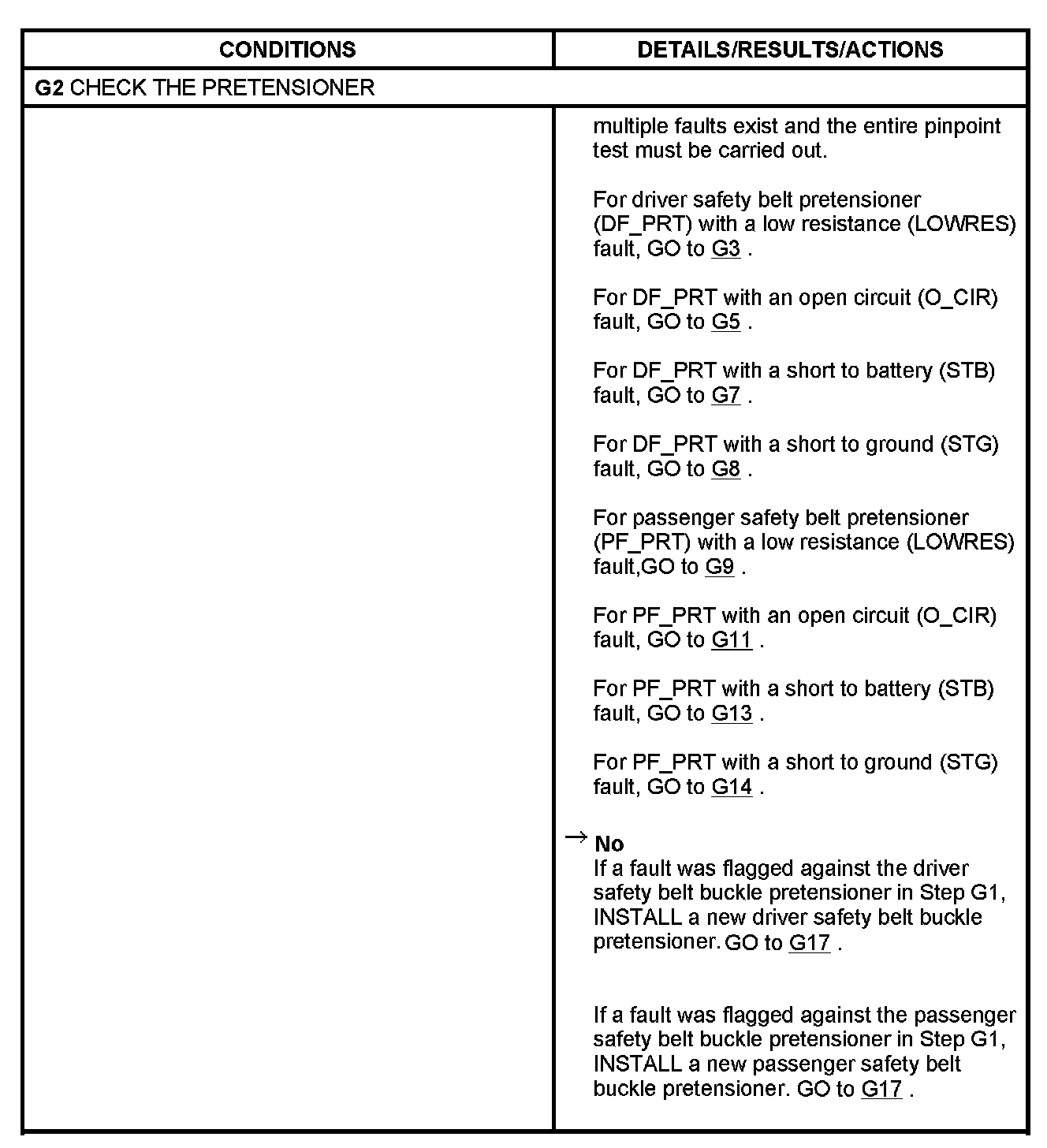

G2:

G2 Continued:

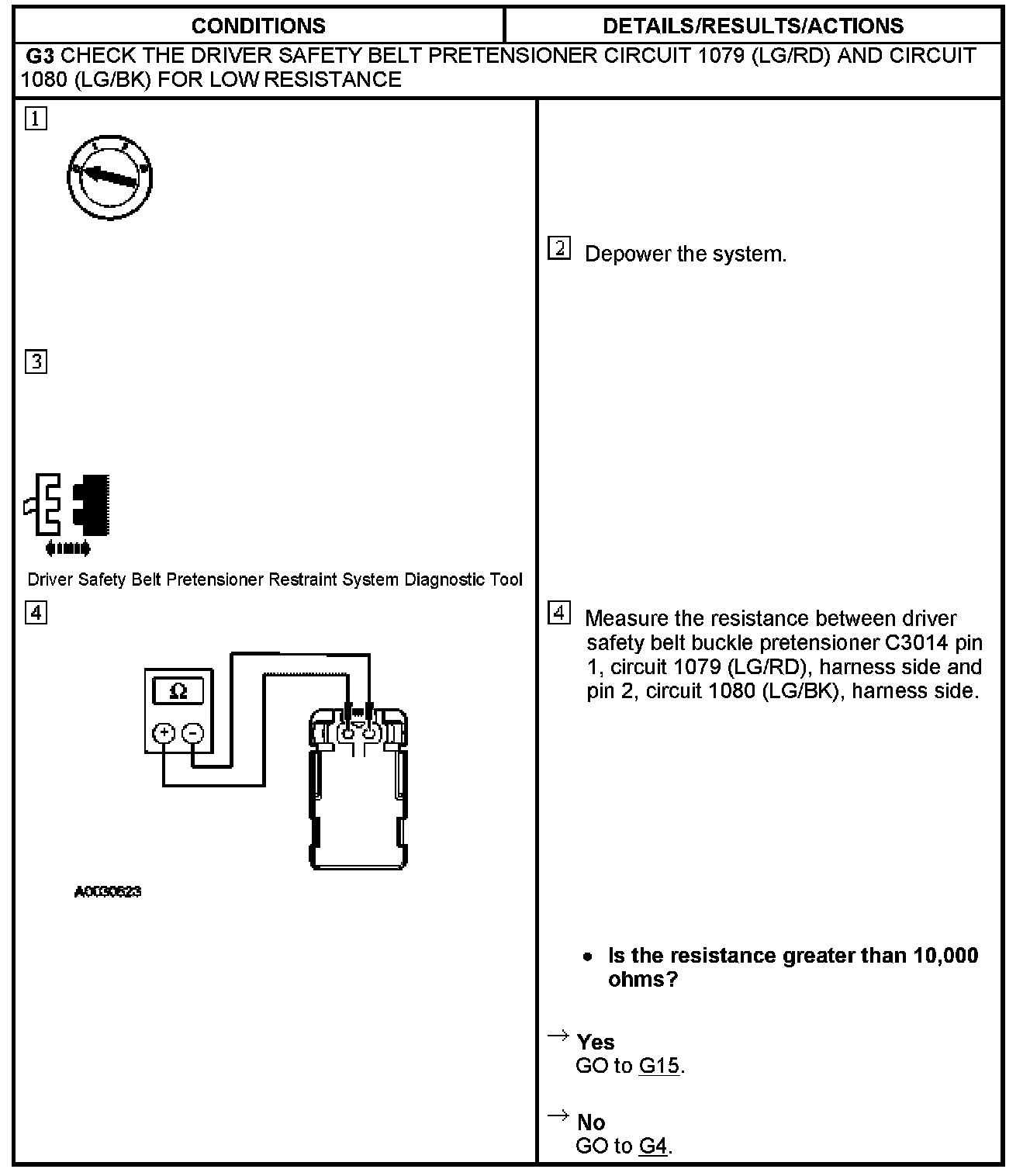

G3:

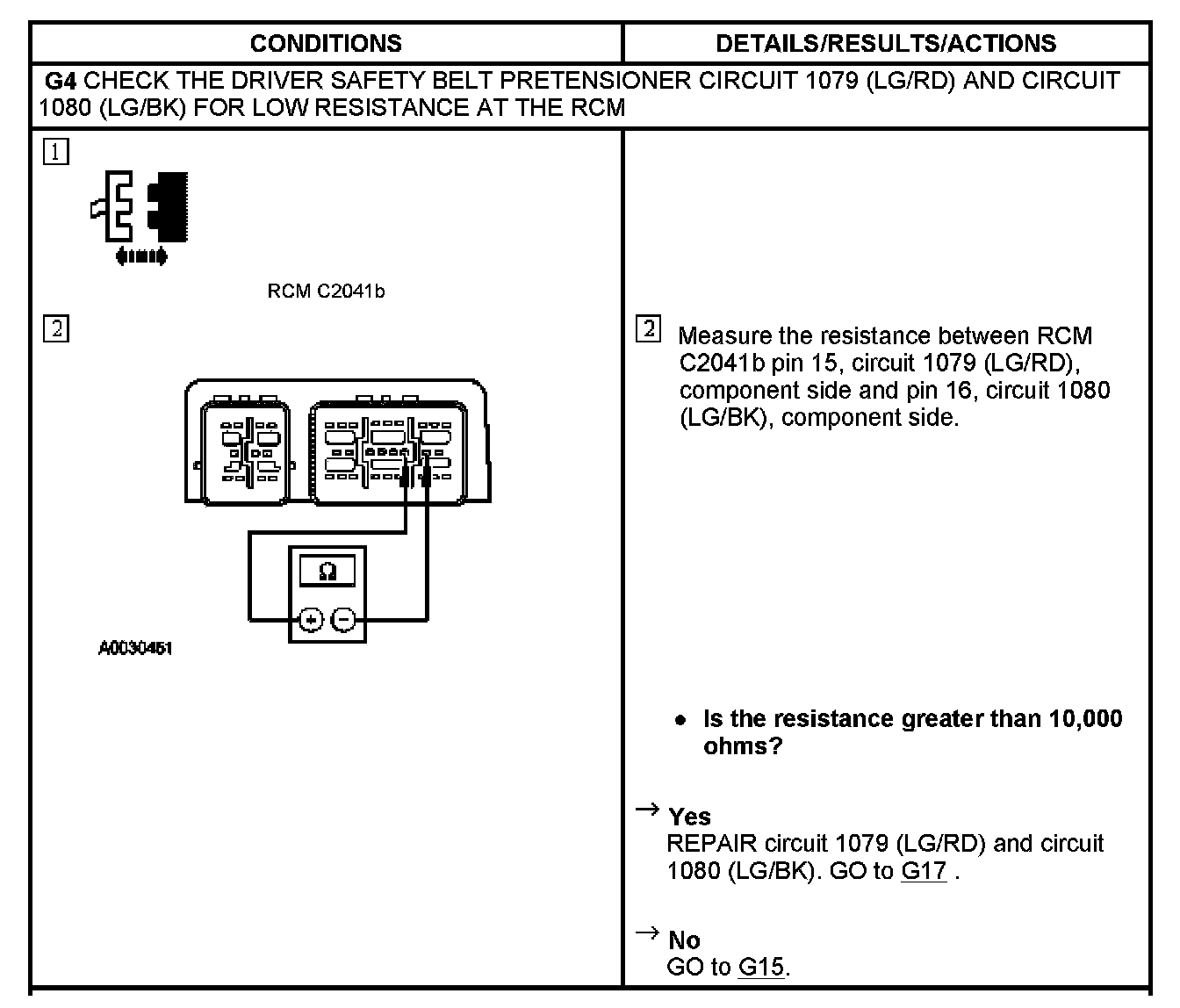

G4:

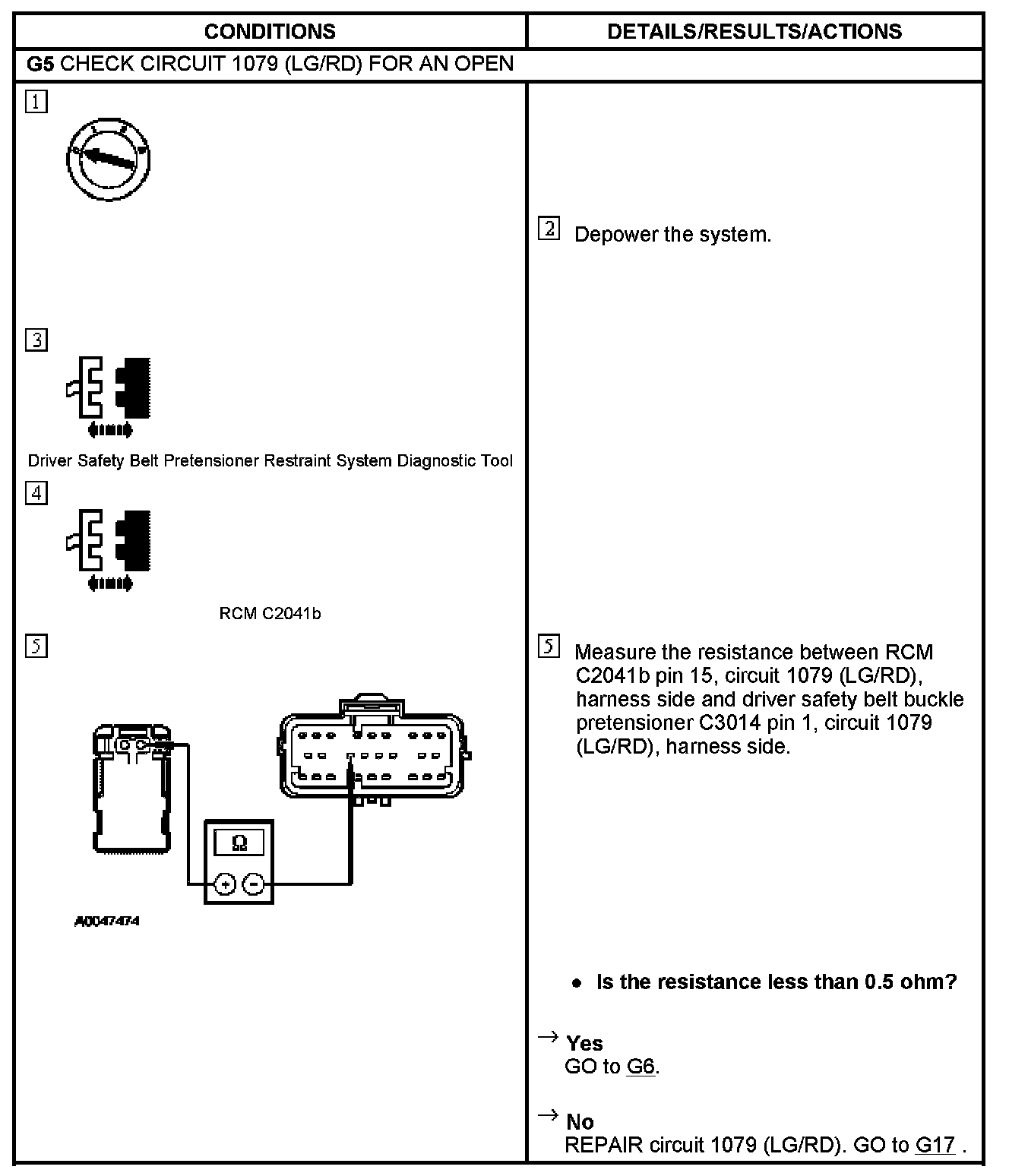

G5:

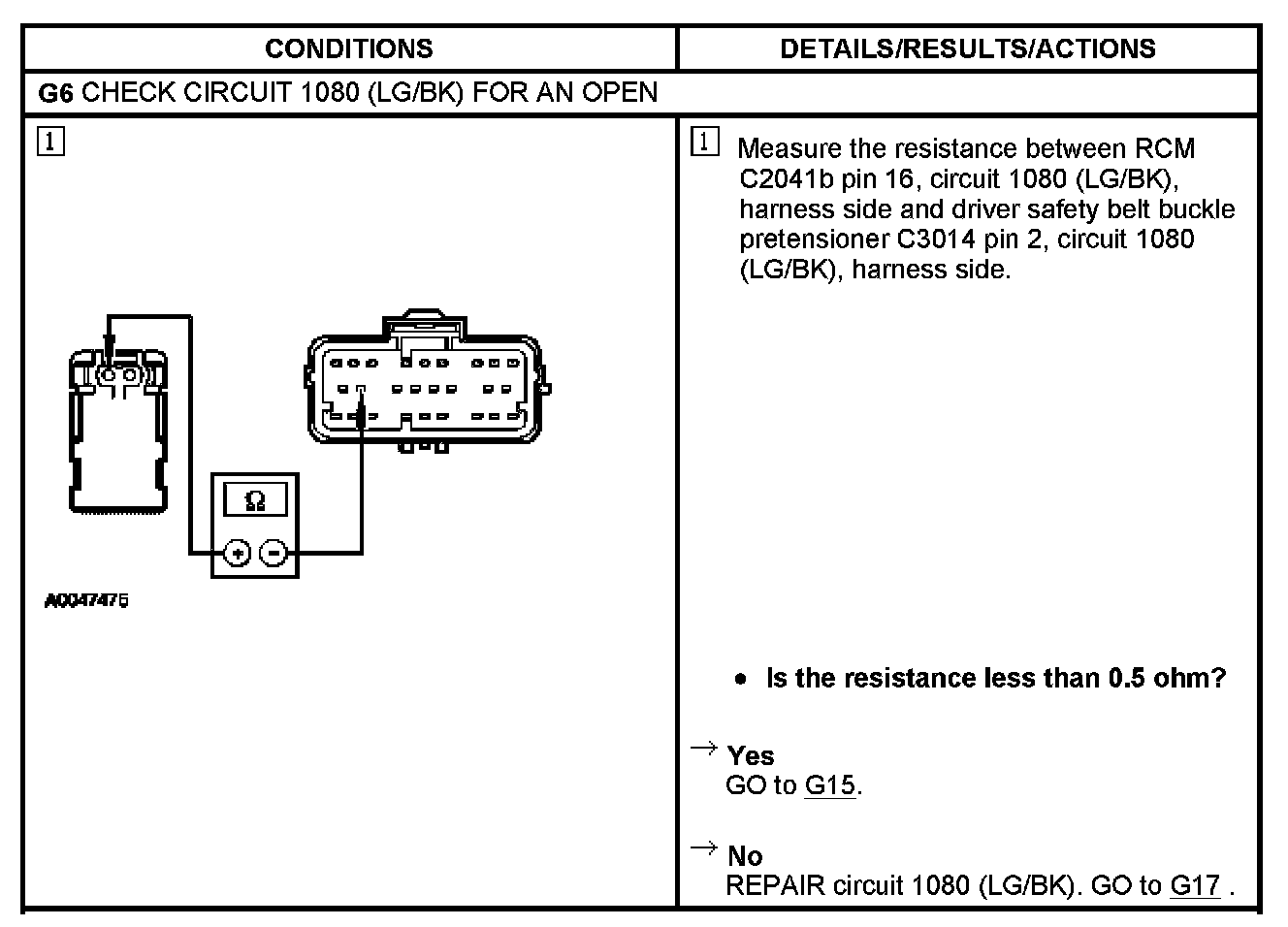

G6:

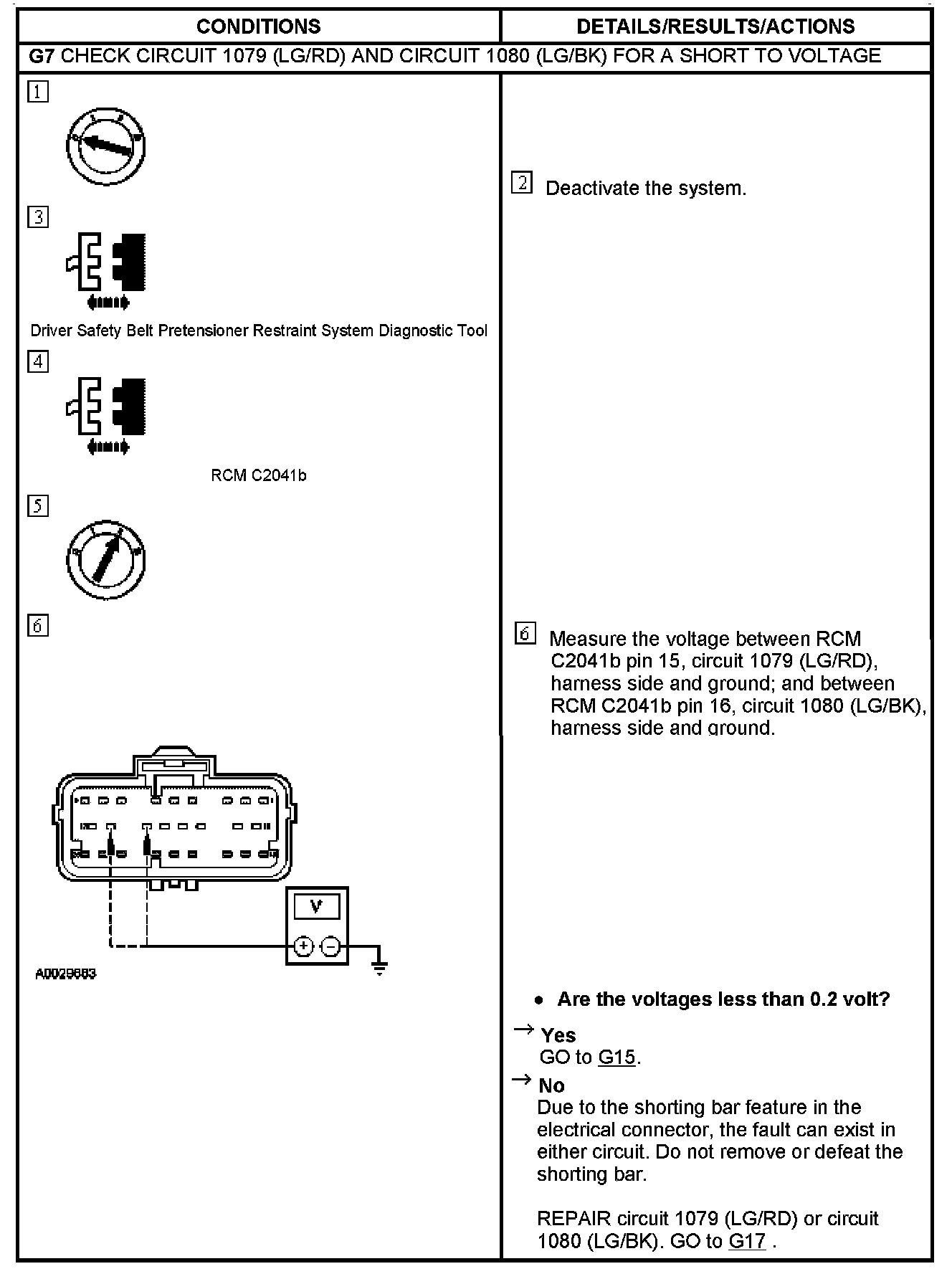

G7:

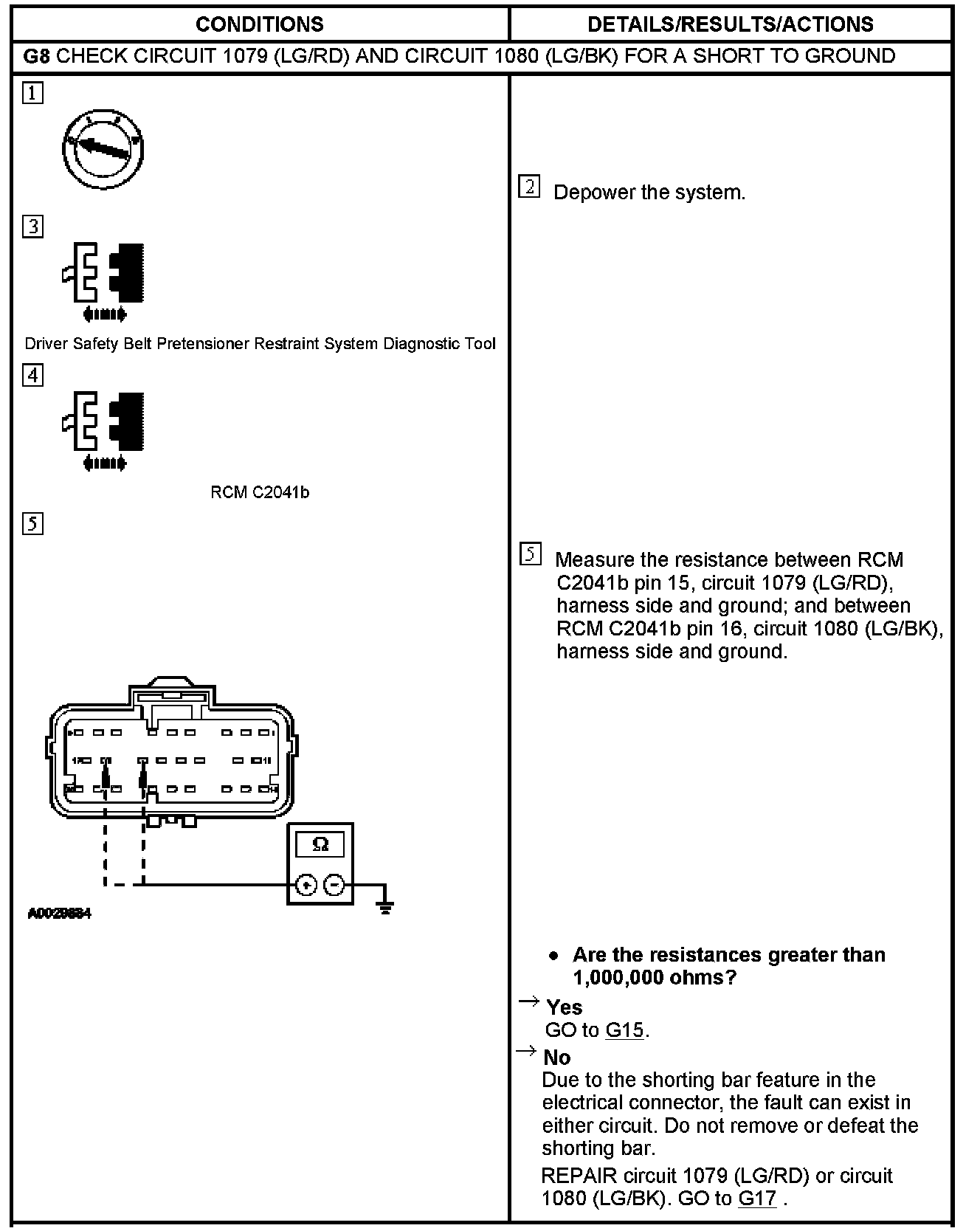

G8:

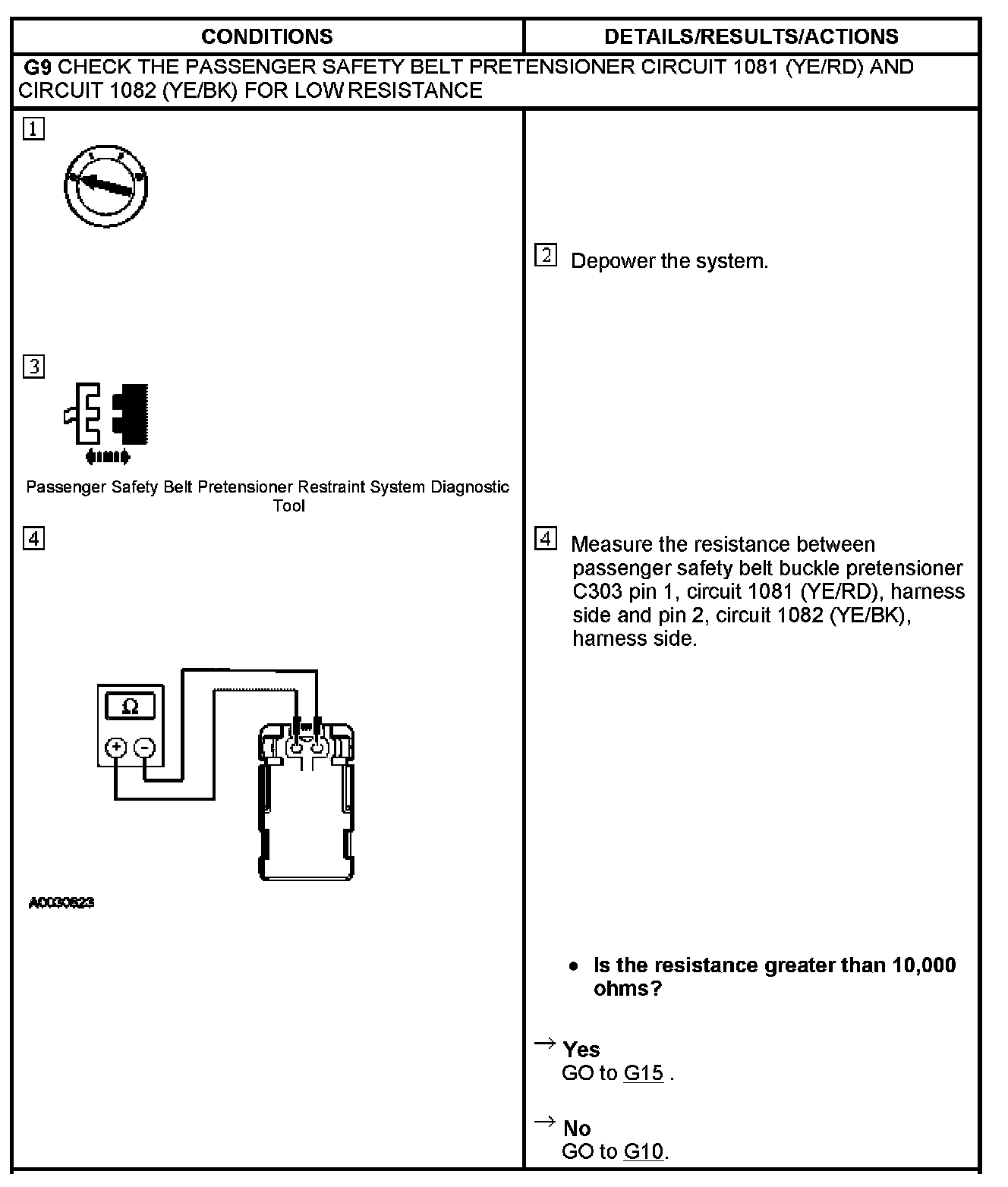

G9:

G10:

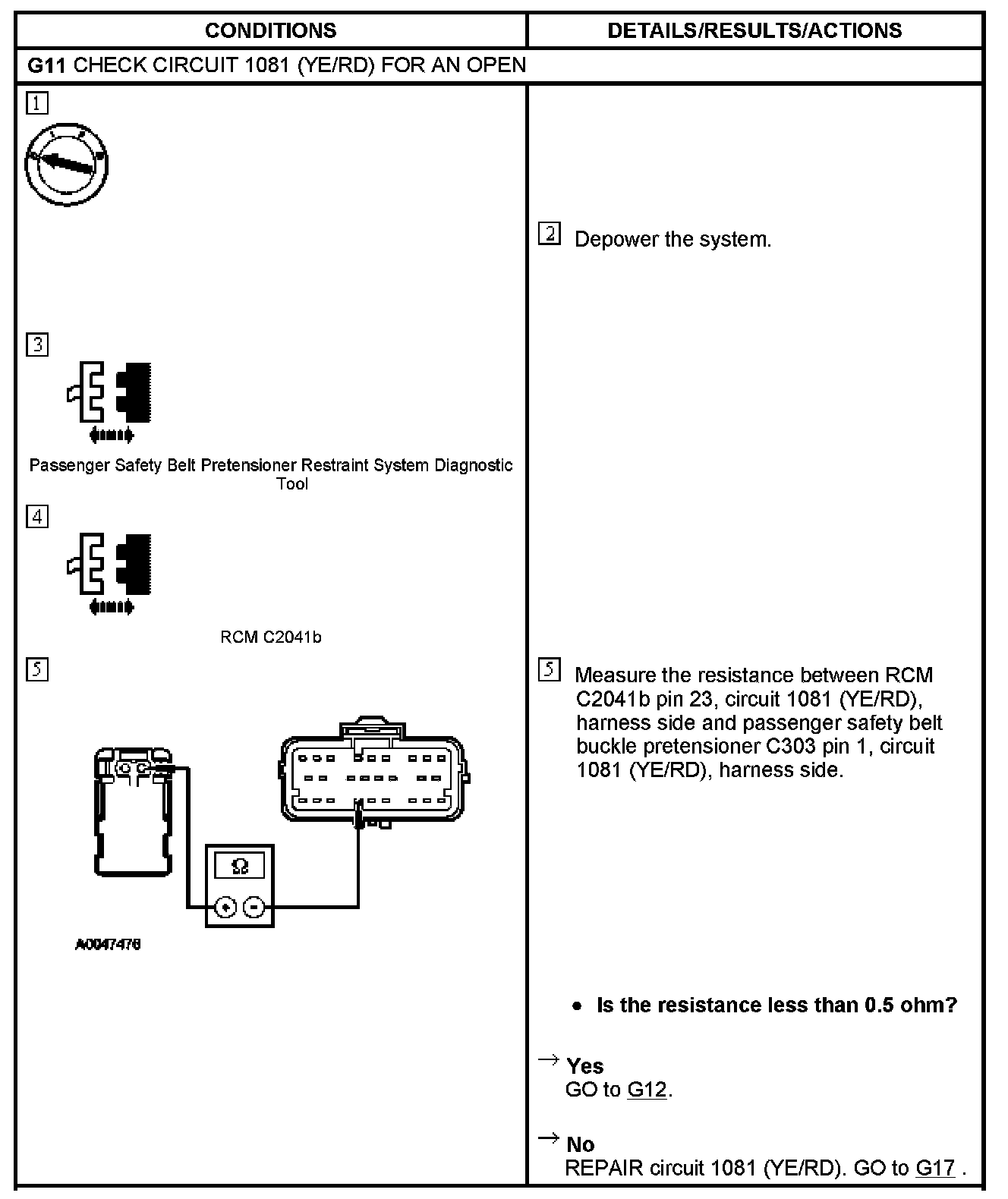

G11:

G12:

G13:

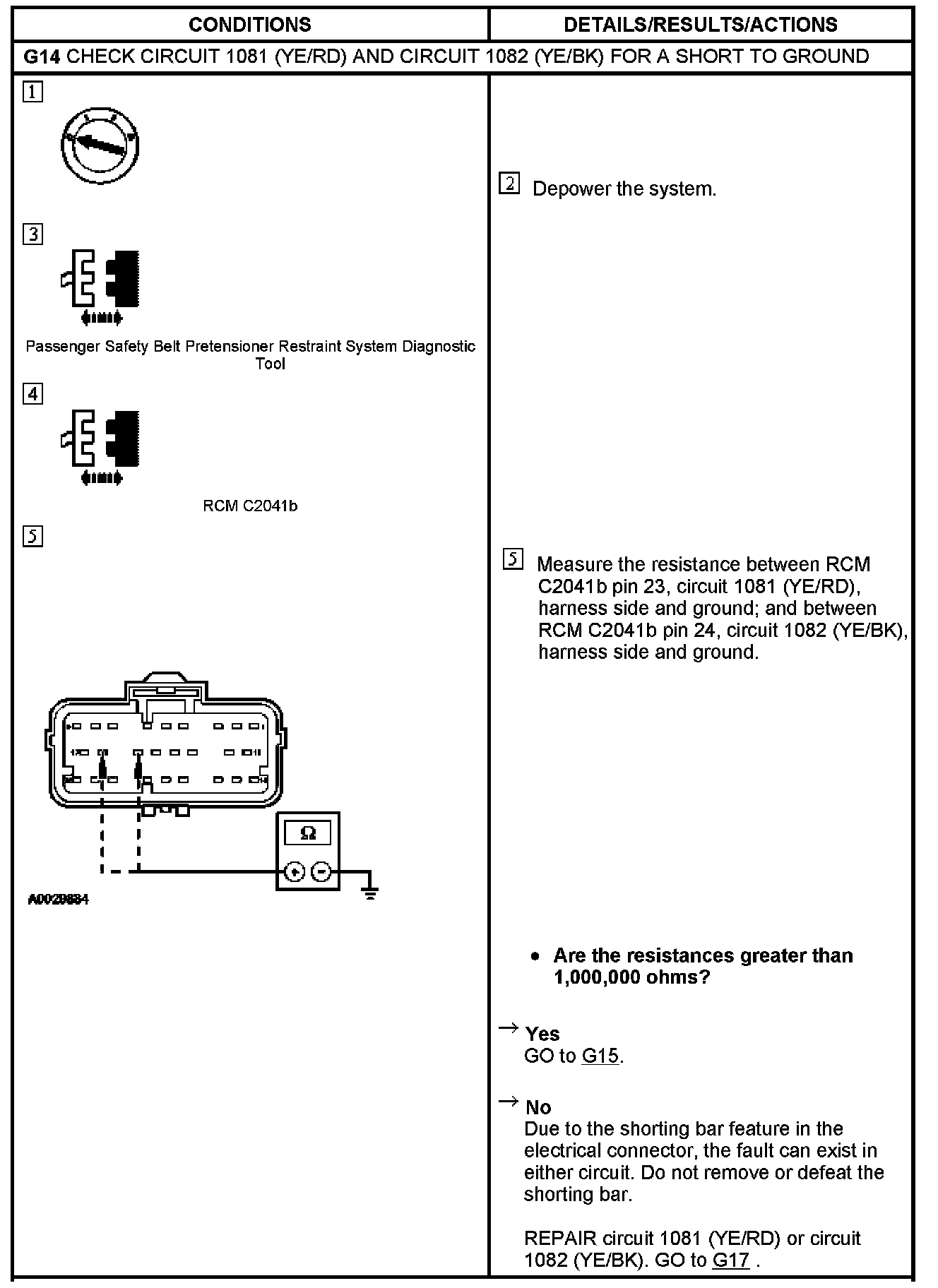

G14:

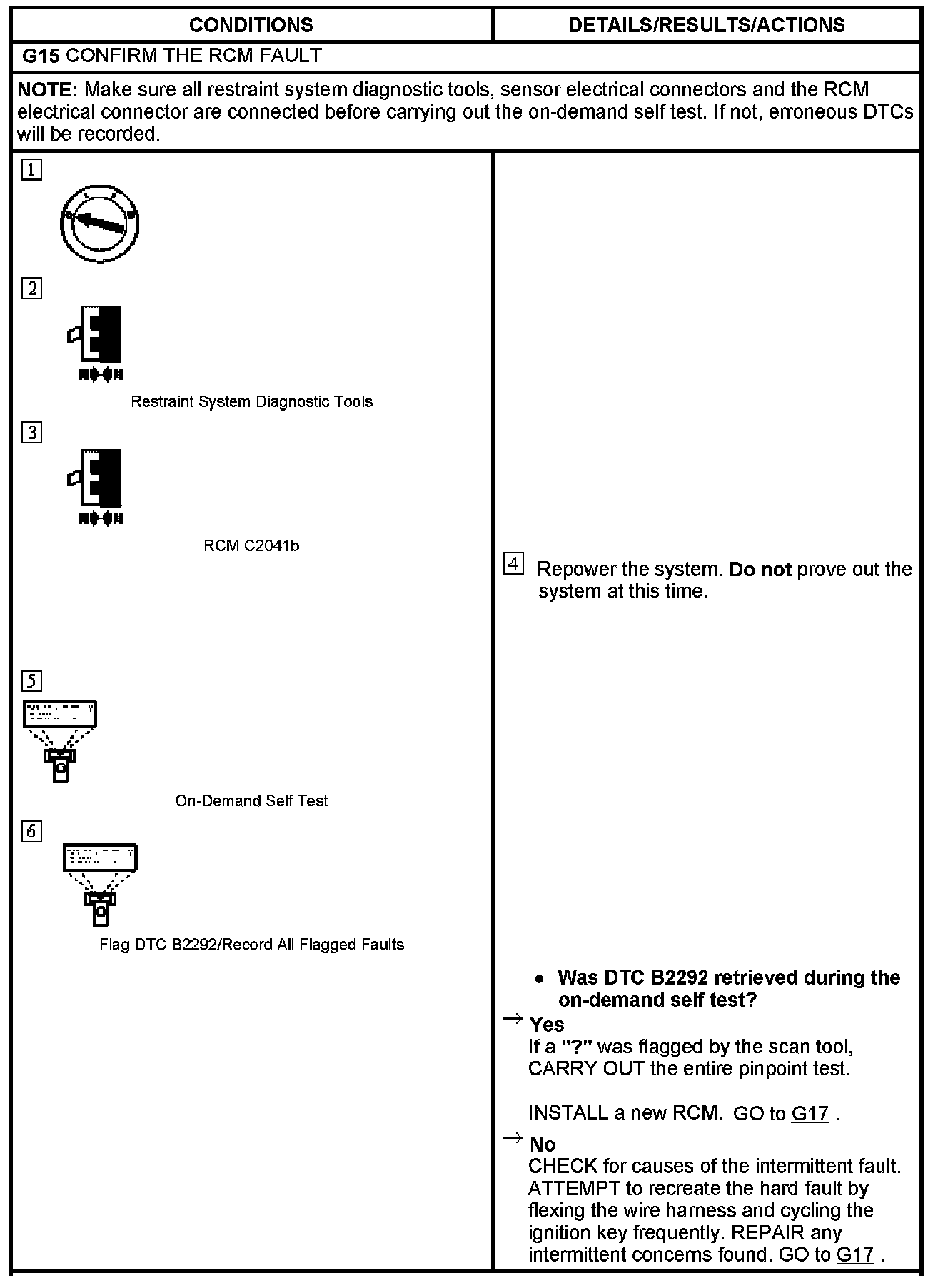

G15:

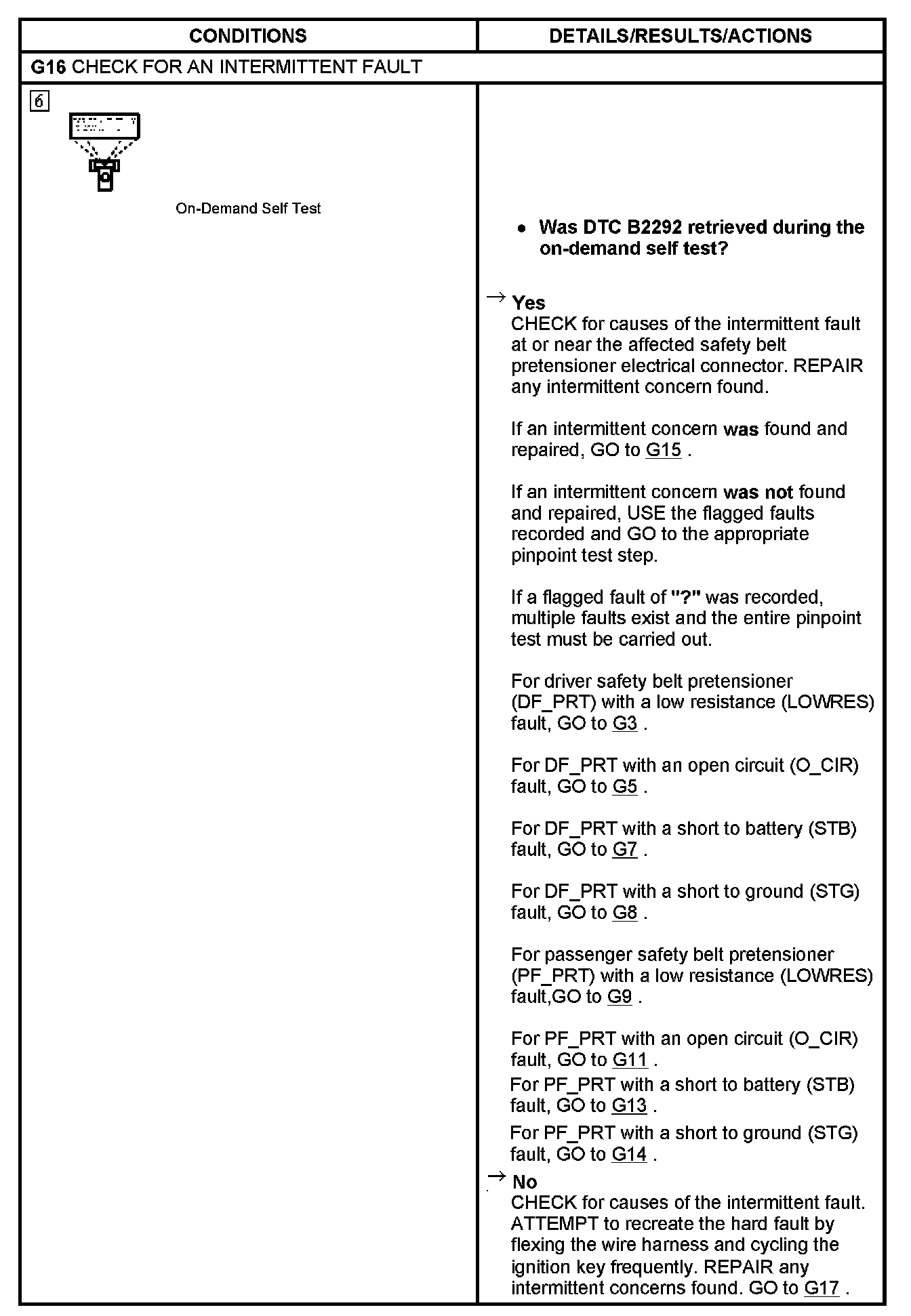

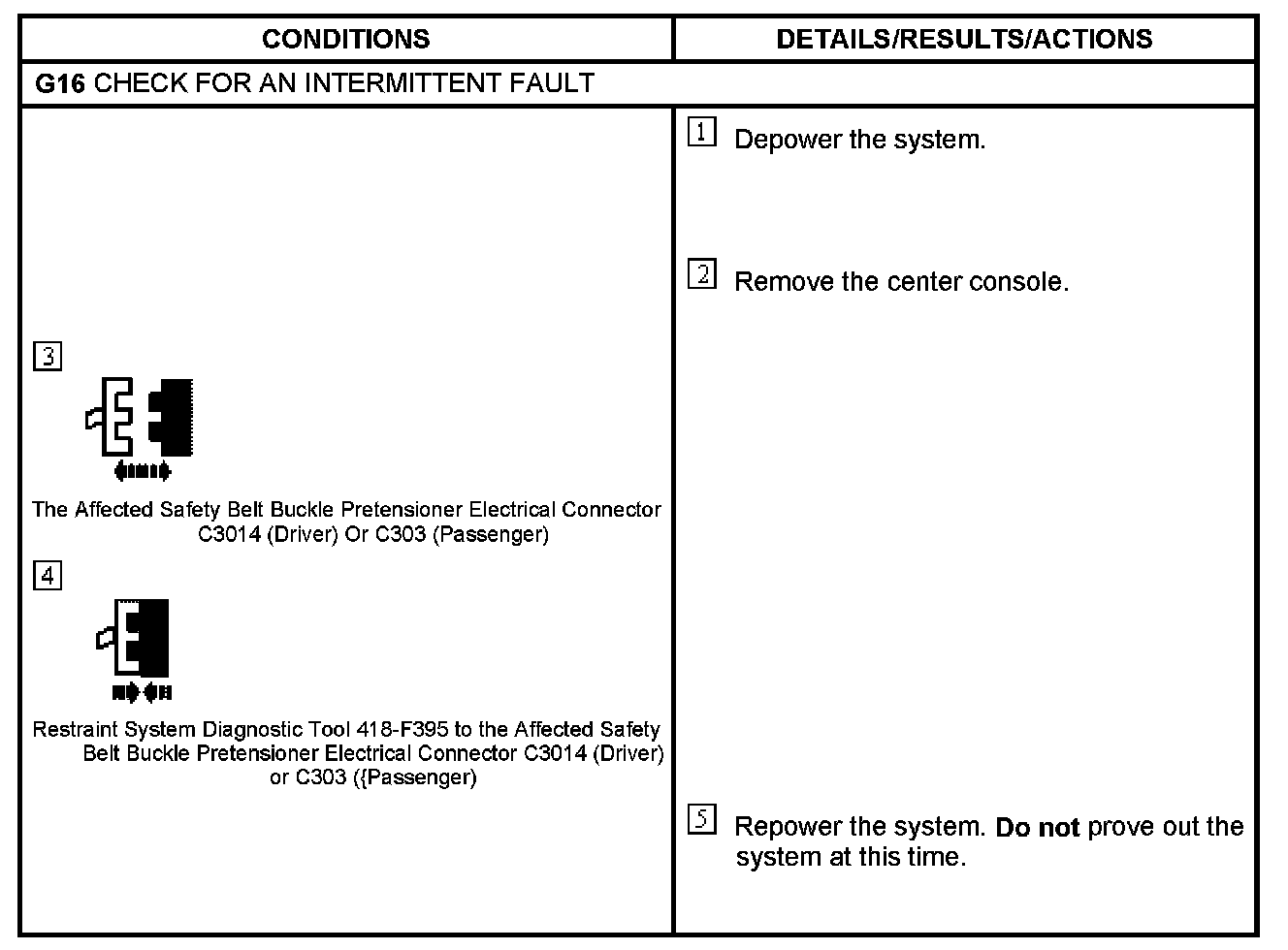

G16:

G16 Continued:

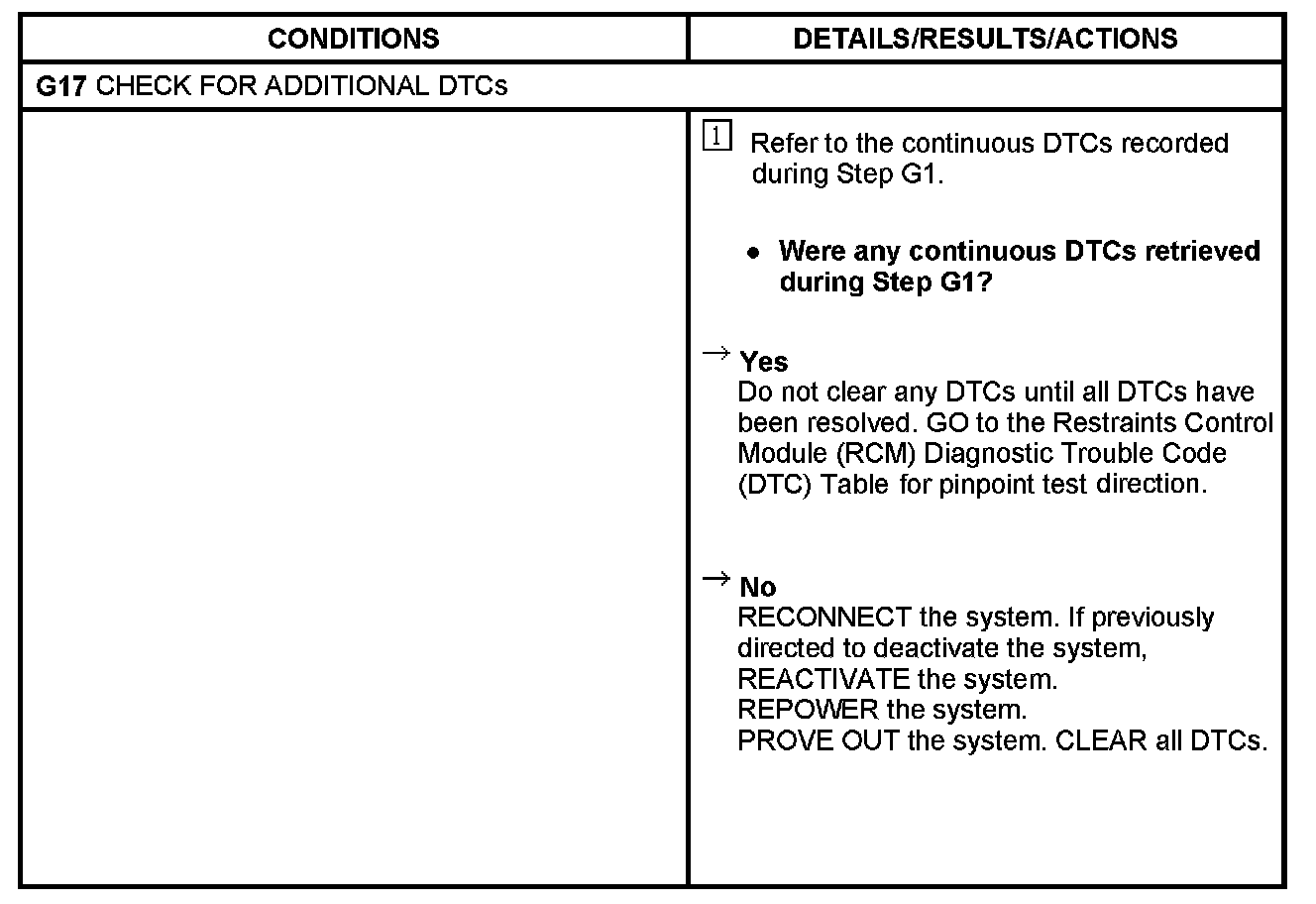

G17:

Normal Operation
The restraints control module (RCM) checks all of the safety belt pretensioners for faults. If the RCM detects one of the following faults on any of the safety belt pretensioner circuits, it will store diagnostic trouble code (DTC) B2292 in memory and flash either lamp fault code (LFC) 33 or 34 (or higher priority code if one exists) on the air bag indicator.

Fault Conditions
The RCM monitors for the following fault conditions:
- low resistance.
- circuit open.
- circuit short to voltage.
- circuit short to ground.

Possible Causes
A safety belt pretensioner status fault can be caused by:
- faulted wiring, terminals, or connectors.
- a faulty pretensioner.
- a faulted RCM.
