Seat Belt Buckle Switch
>>
Locations
>>
Safety Belt Buckle Switch, Passenger
Safety Belt Buckle Switch, Passenger

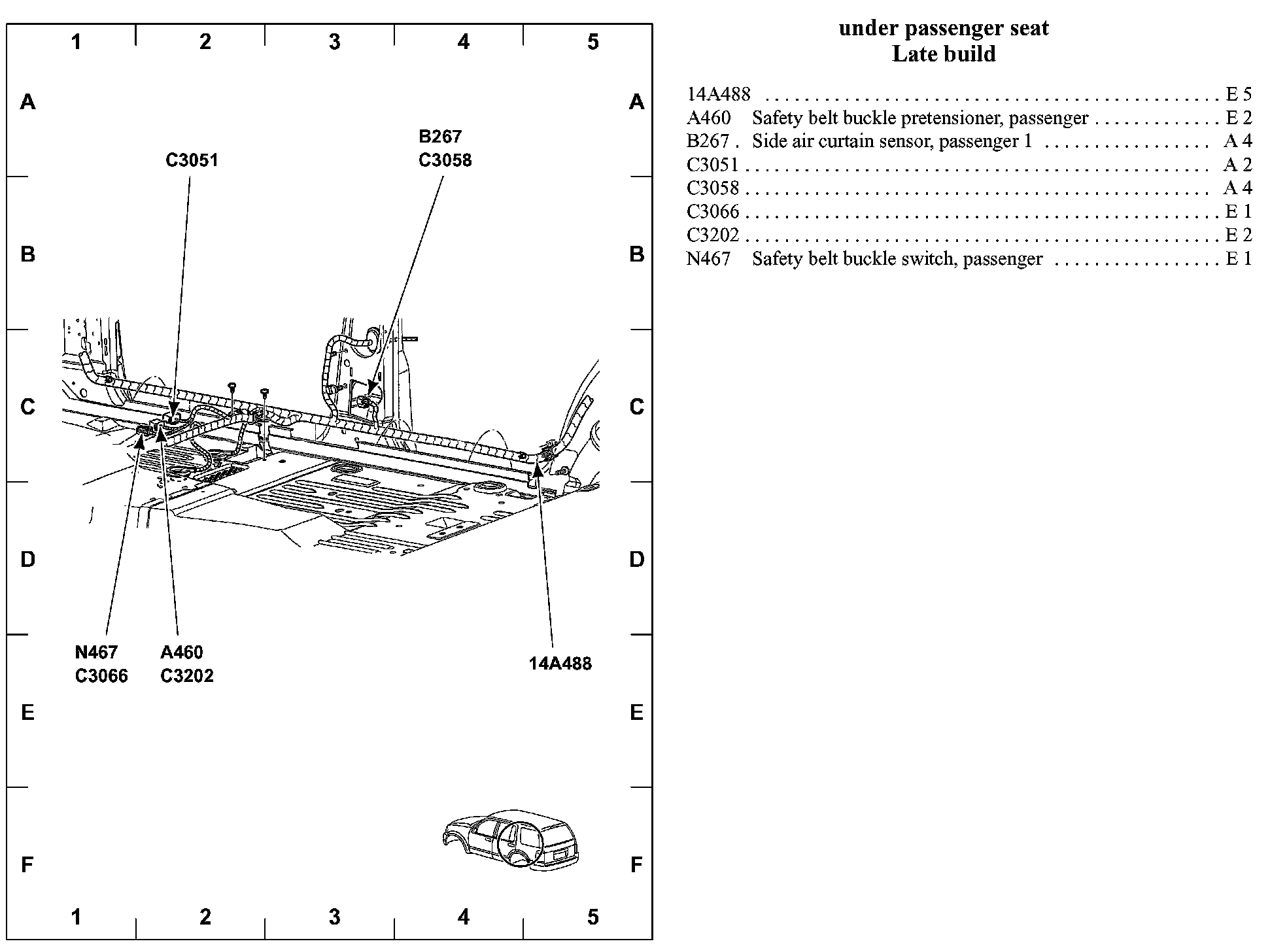

View 151-86 (Under Passenger Seat Late Build):
