Flex Plate: Service and Repair

Flexplate

Removal
1. Remove the transmission.





2. Remove the bolts.

Installation





1. Position the flexplate and install the bolts.
Tighten the bolts in two stages:
- Stage 1: Loosely install the bolts.

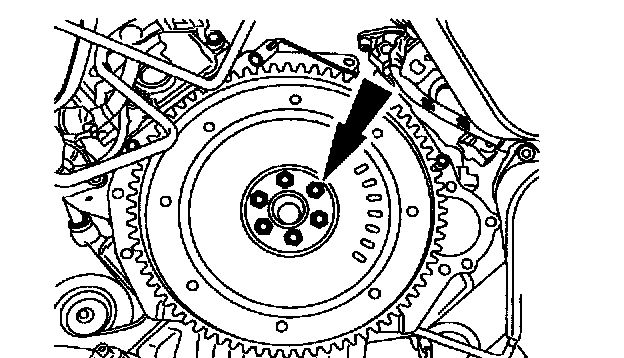

- Stage 2: Tighten the bolts in sequence shown.

2. Install the transmission.
