Test H: No Communication With the Four-Wheel Drive (4WD) Control Module

PINPOINT TEST H: NO COMMUNICATION WITH THE FOUR-WHEEL DRIVE (4WD) CONTROL MODULE

Test H1:

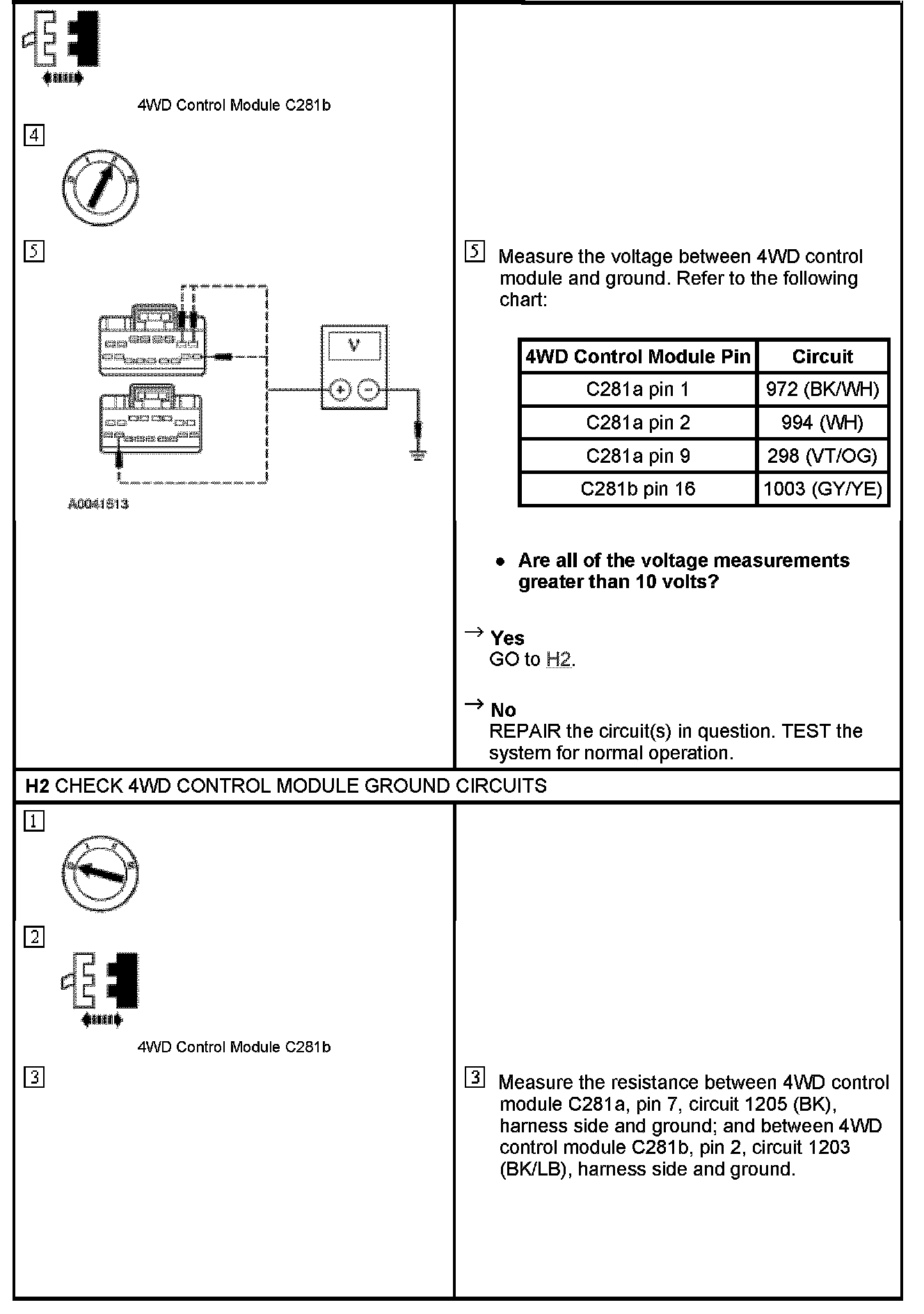

Test H1-H2:

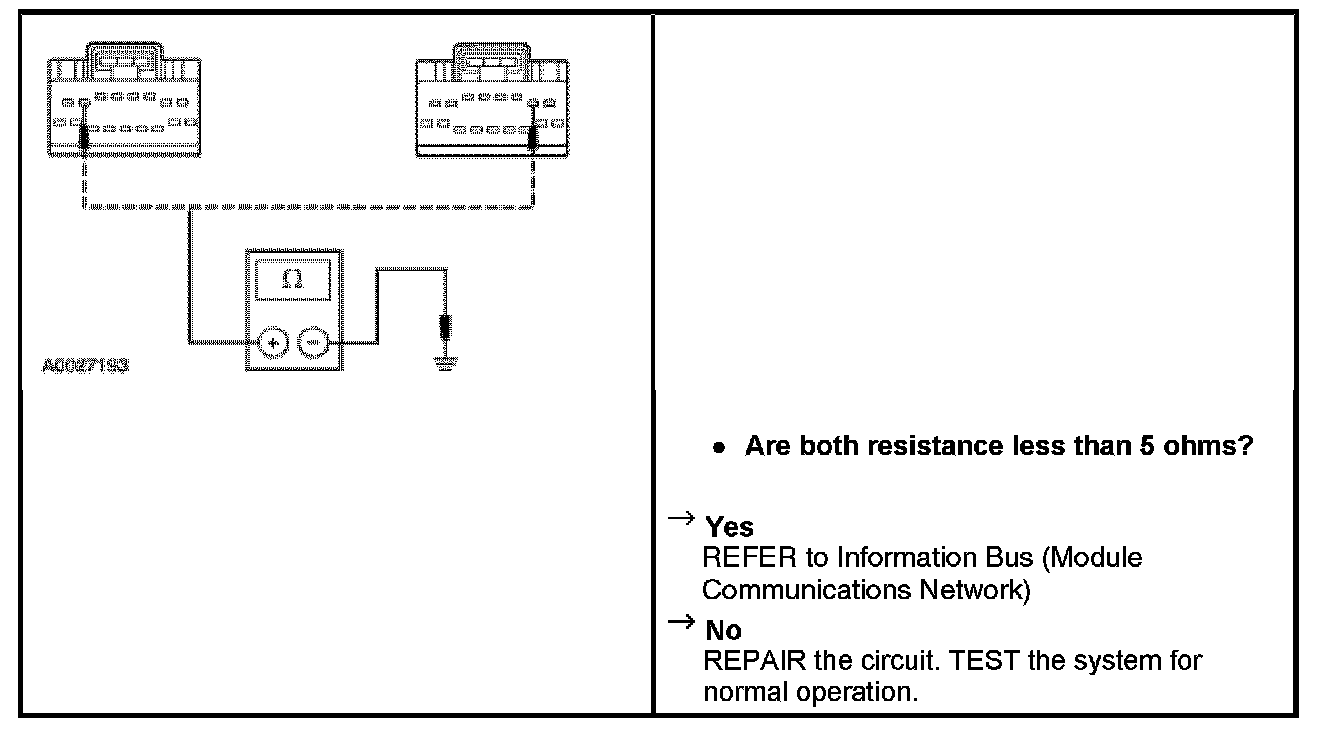

Test H2 (Continued):
