Transmission Mode Switch: Locations

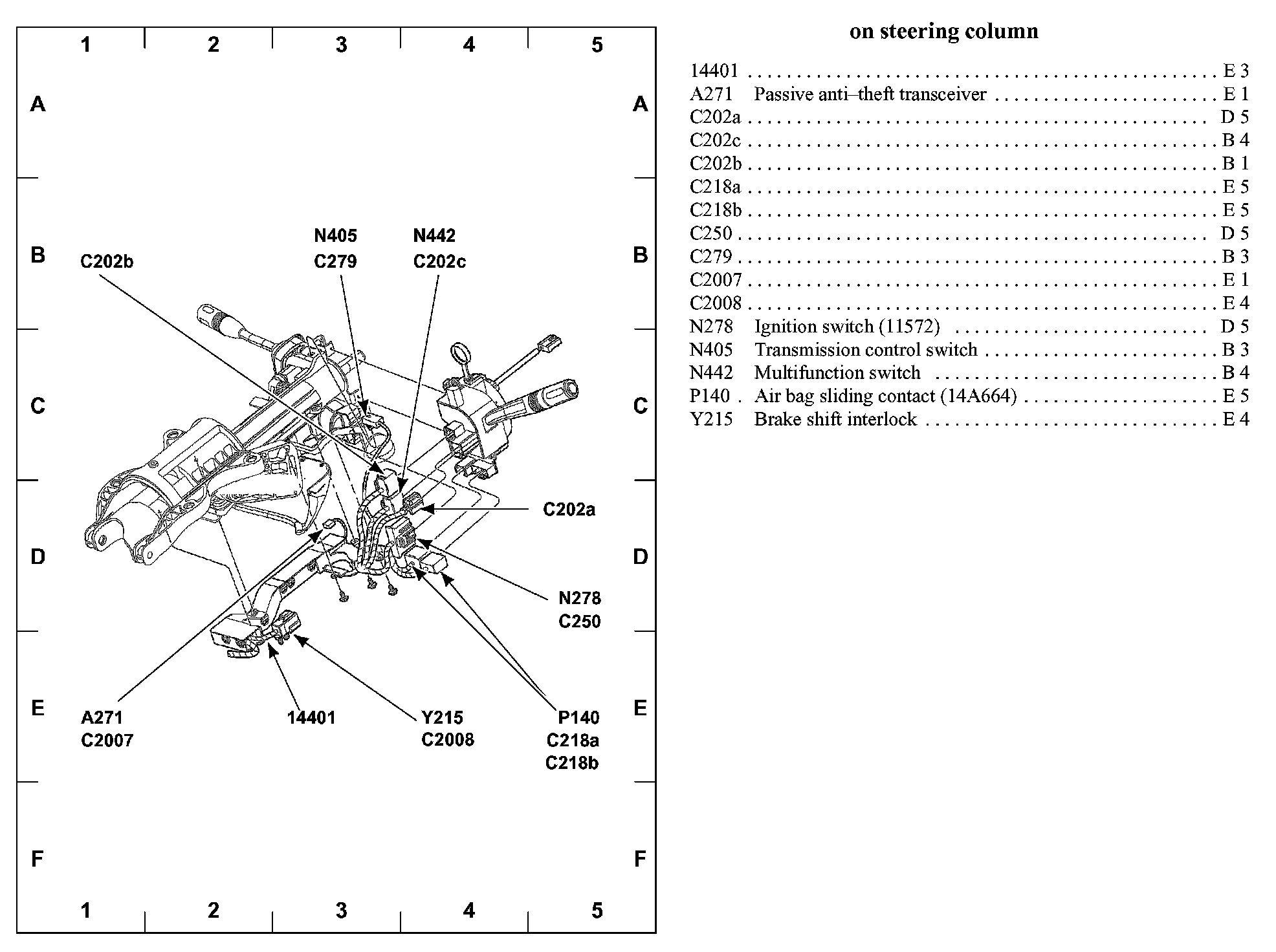

View 151-38 (On Steering Column):



View 151-39 (On Steering Column Late Build):
