Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
Explorer 4WD V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Late Build
>>
Test V: The Washer Pump Is In Operative
Test V: The Washer Pump Is In Operative
PINPOINT TEST V: THE WASHER PUMP IS IN OPERATIVE

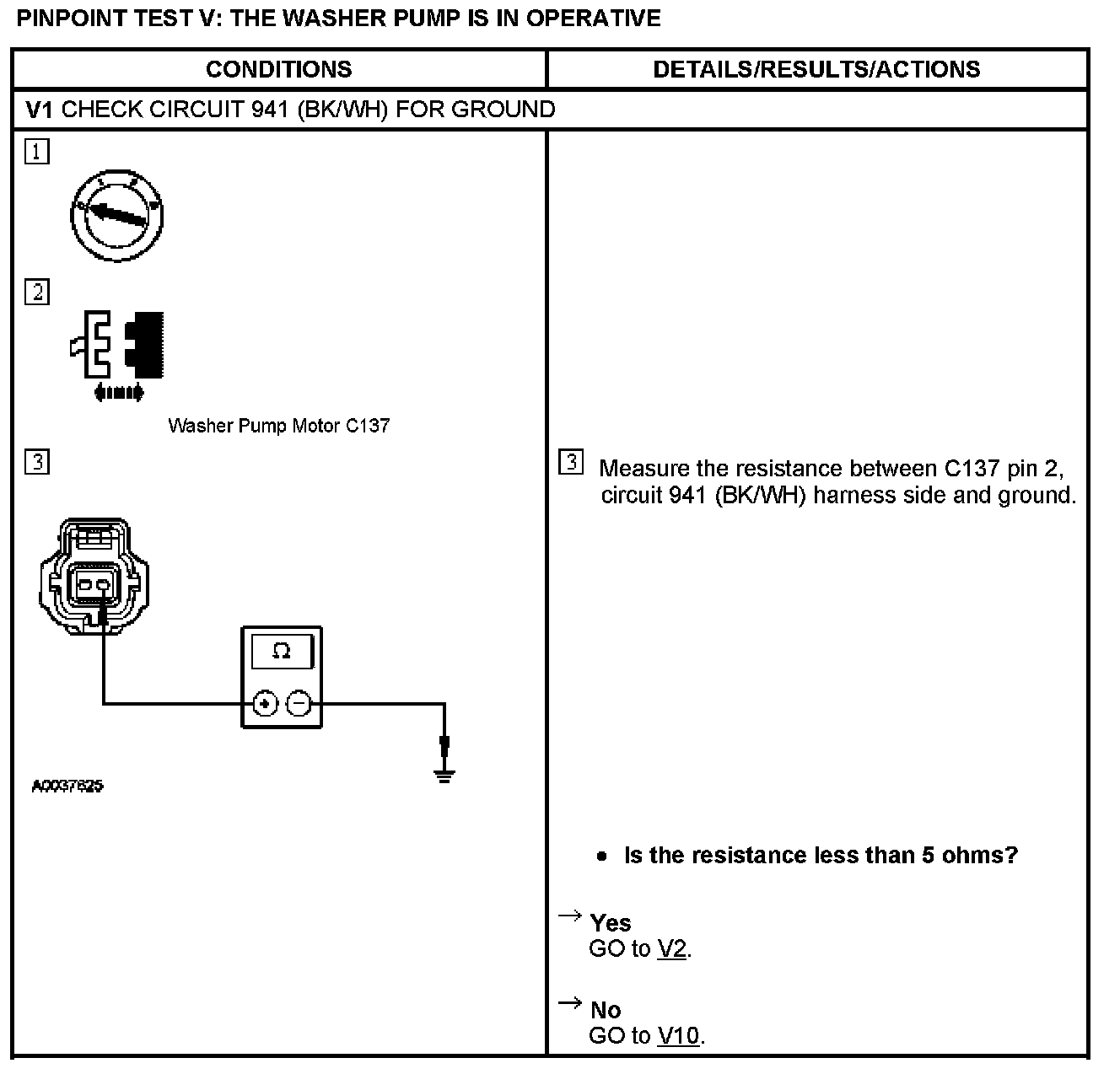

V1:

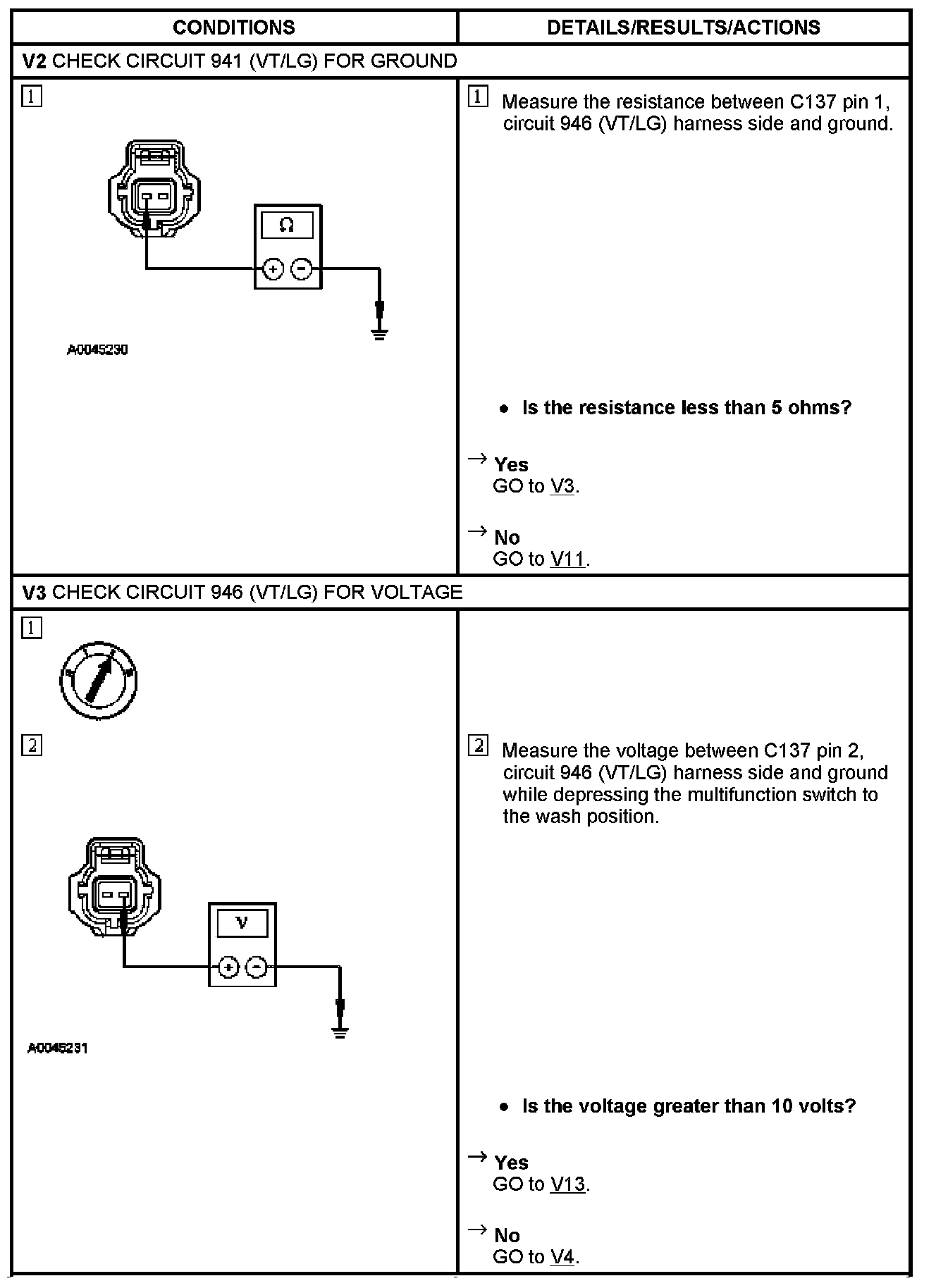

V2-V3:

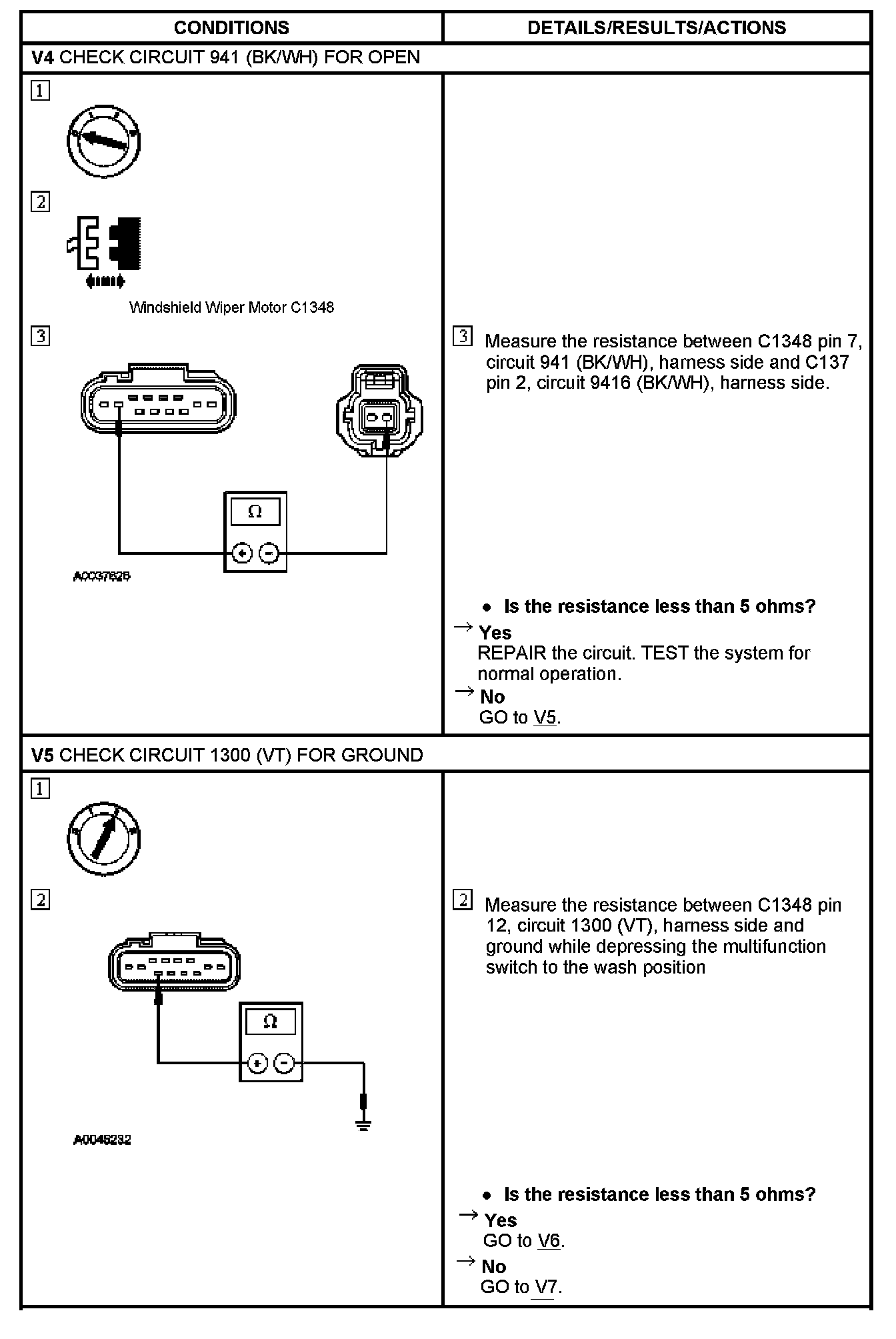

V4-V5:

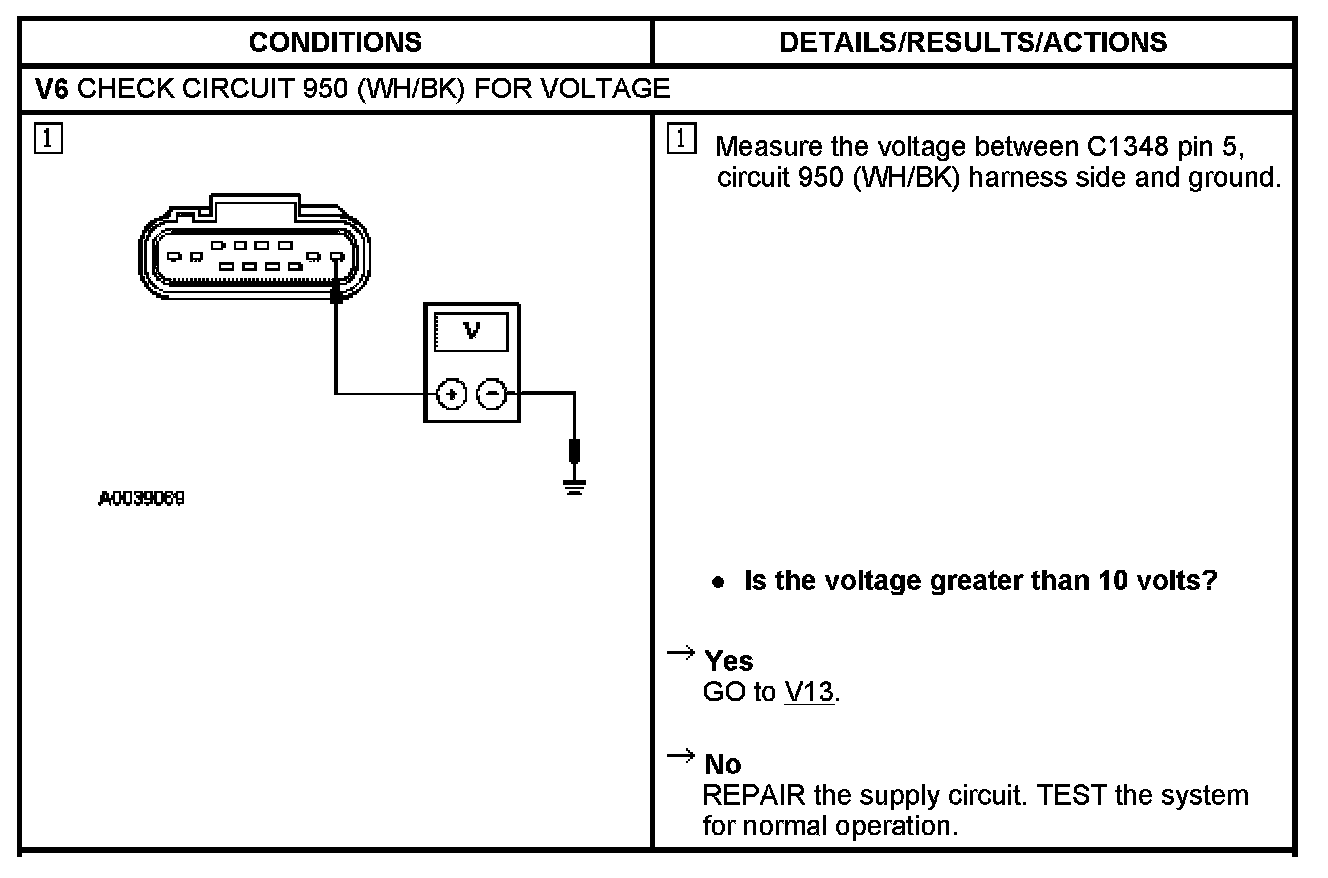

V6:

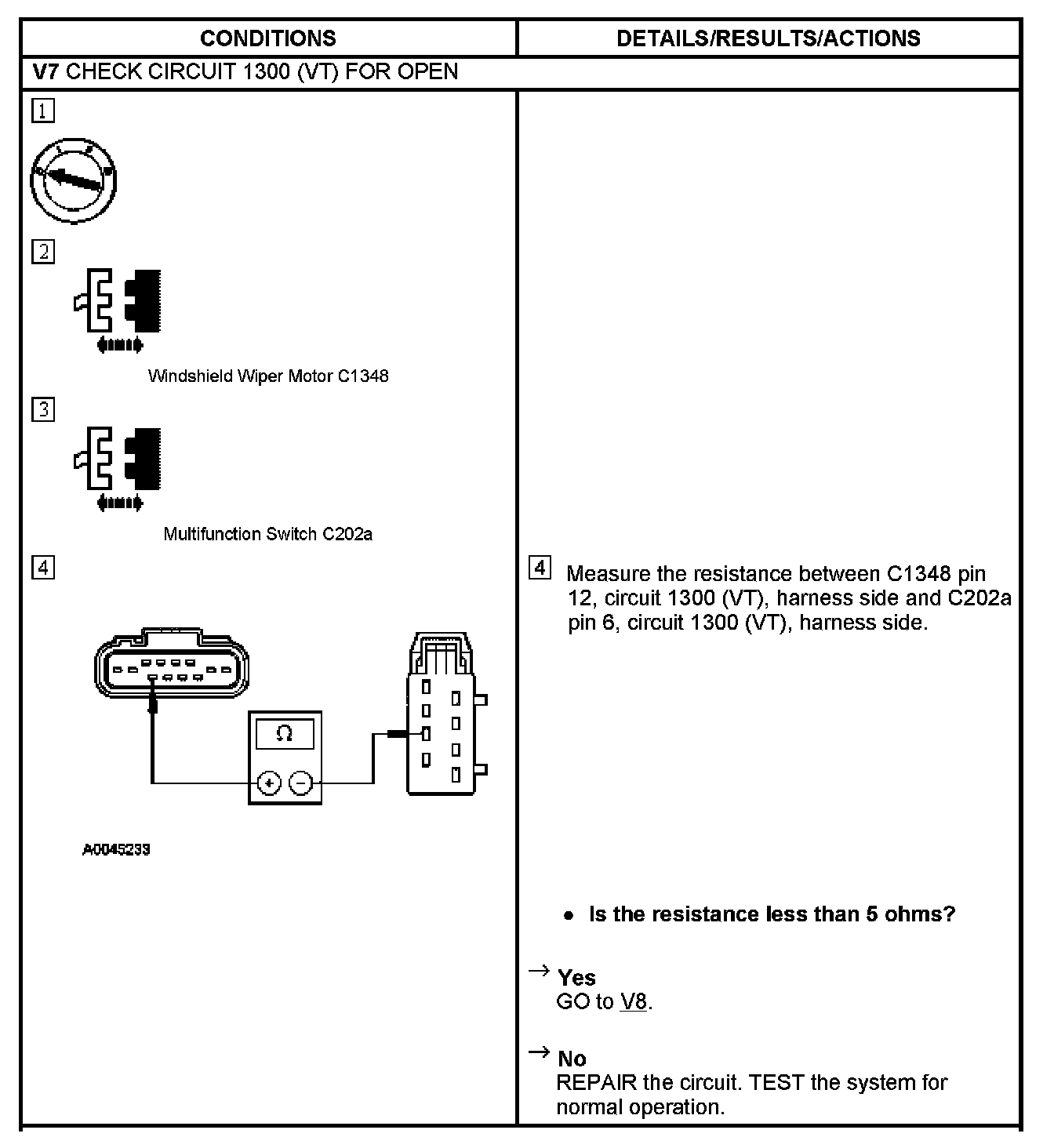

V7:

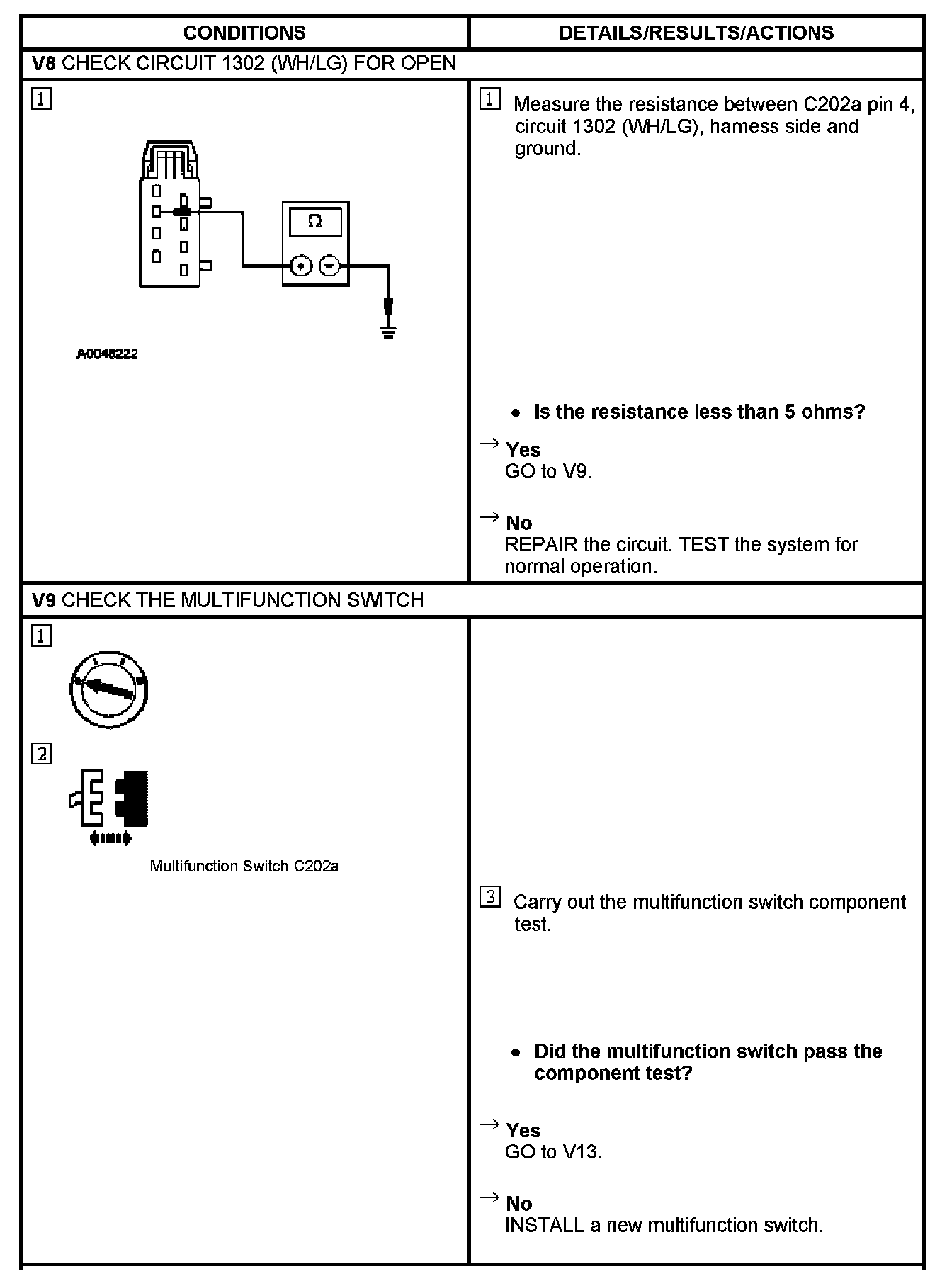

V8-V9:

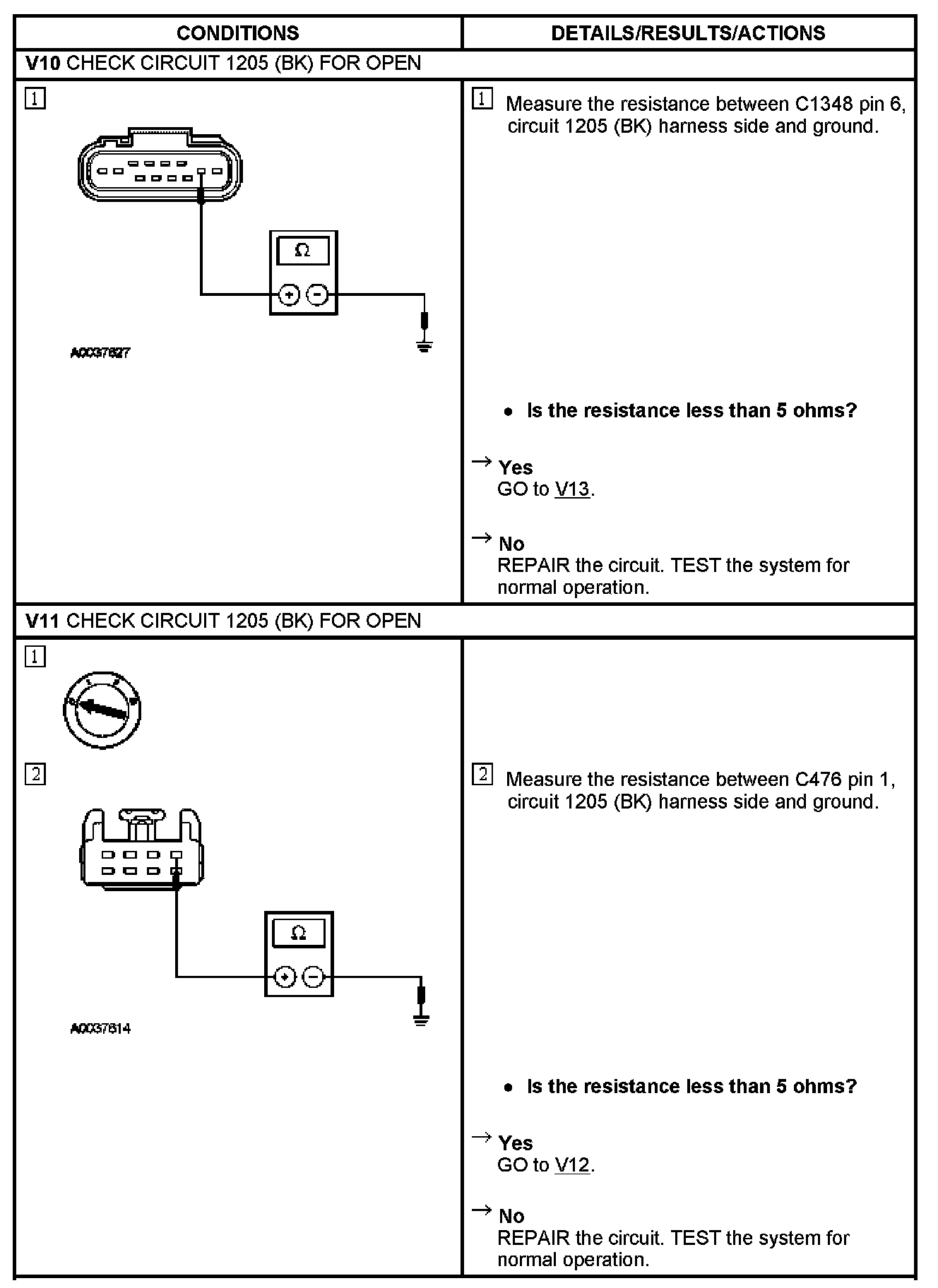

V10-V11:

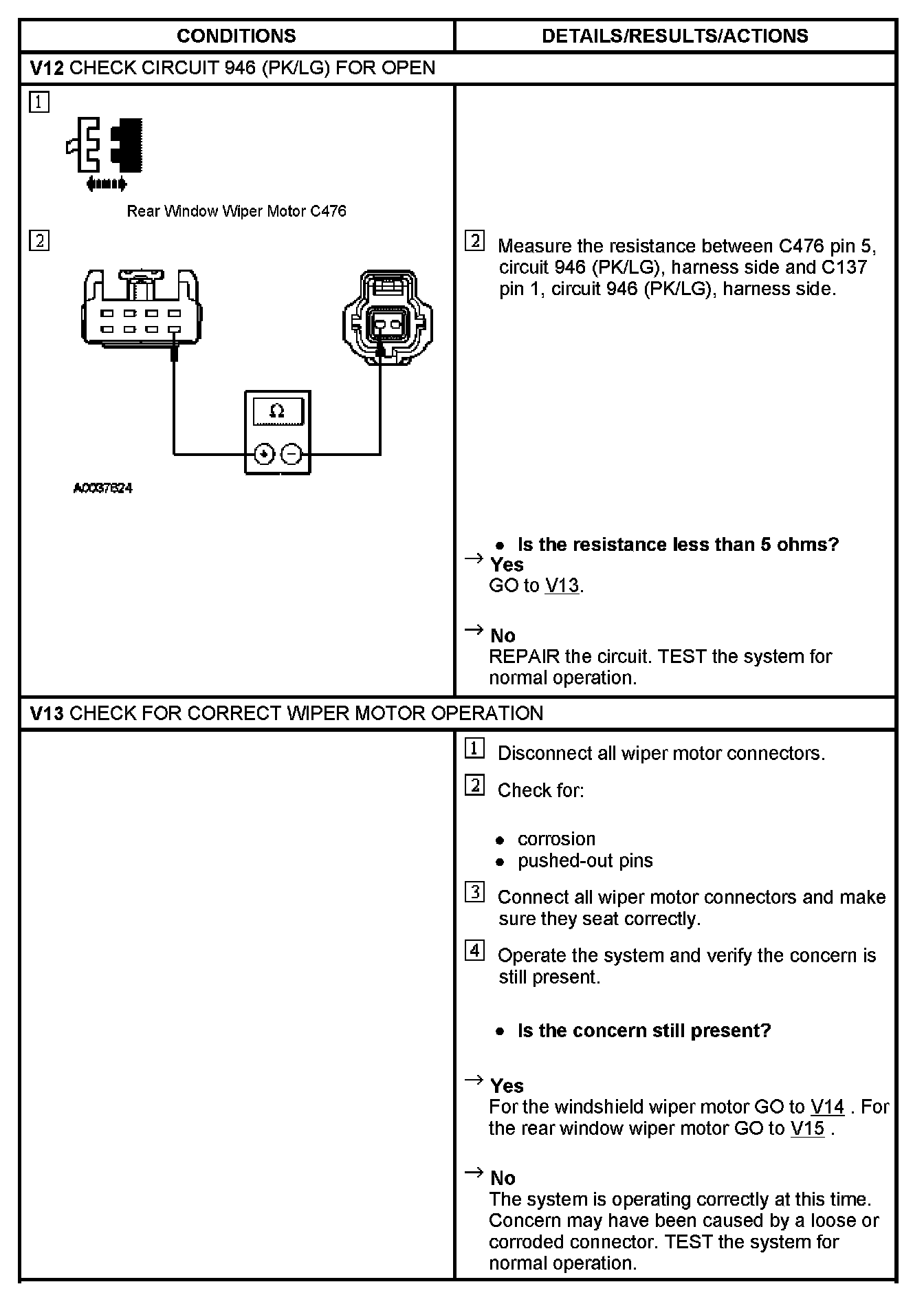

V12-V13:
V14-V15:
