System Specifications

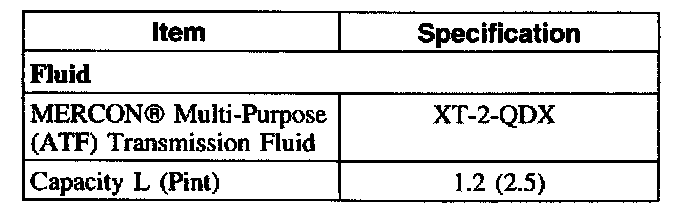

Four-Wheel Drive Systems

General Specification

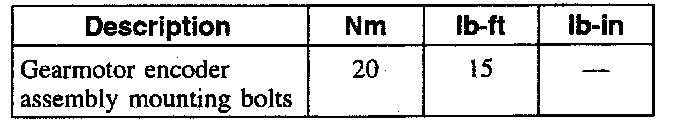

Transfer Case Automatic Shift

General Specification

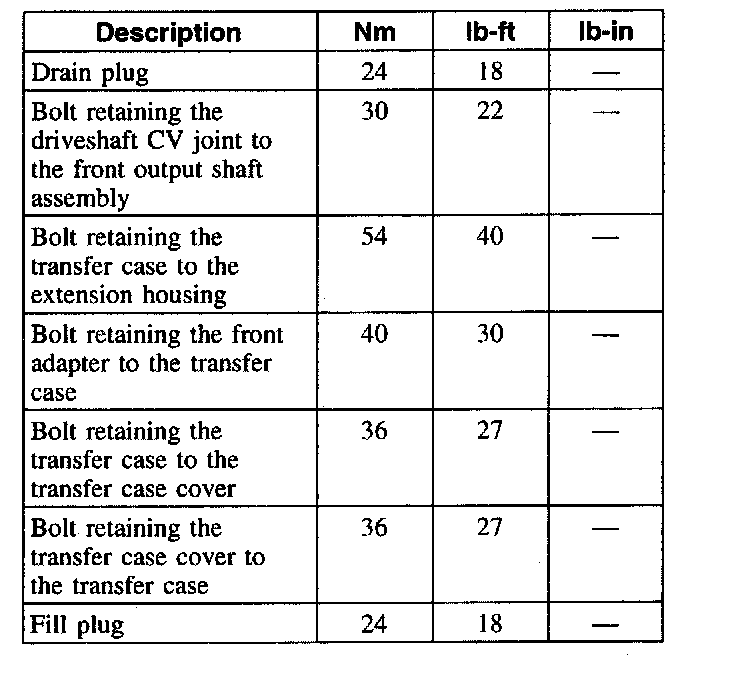

Torque Specifications
