Housing Assembly HVAC: Service and Repair

REMOVAL
1. Remove the battery and me battery tray brackets.
2. Recover the refrigerant. Refer to: Heating and Air Conditioning, Service and Repair, Refrigerant Discharging and Recovery Procedure, Refrigerant Discharging and Recovery procedure

3. Drain the cooling system.
4. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Removal and Installation, Removal and Installation






5. Disconnect the heater core hose couplings.

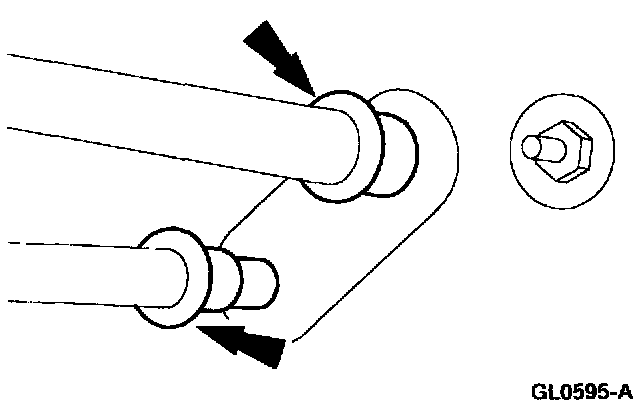

6. Disconnect the refrigerant line spring lock couplings from the A/C evaporator core.

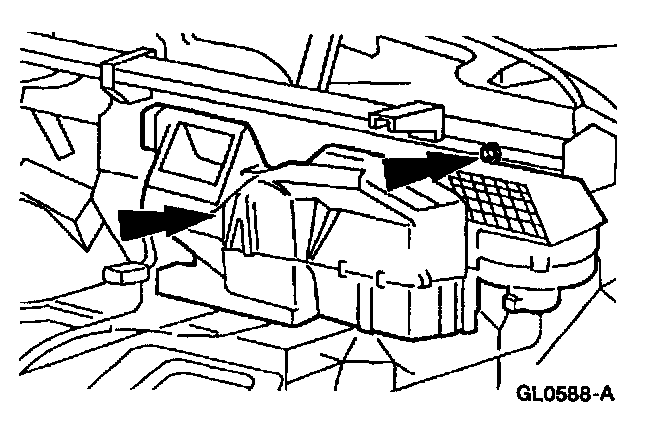

7. Remove the plenum chamber nuts.







8. Disconnect the A/C vacuum hose from the A/C vacuum check valve.

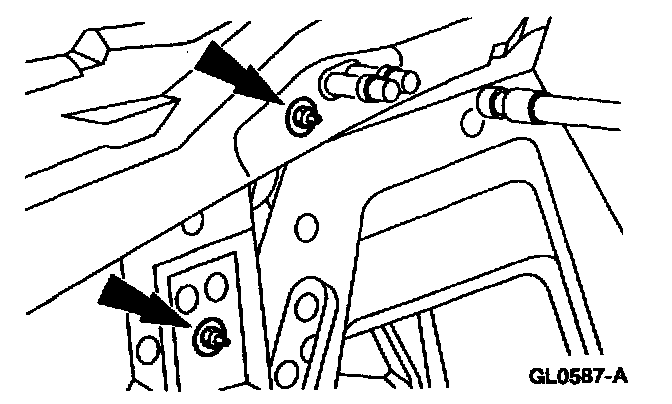

9. Remove the plenum chamber nuts.

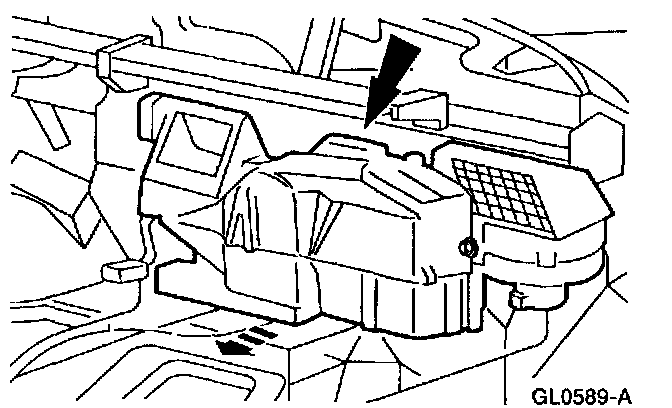

10. Remove the plenum chamber.

INSTALLATION
1. To install, reverse the removal procedure.
^ Lubricate the coolant hoses with MERPOL(R) or plain water only, if needed.
