Test B: B1251 Or B1251-A/C Incar Temp Sensor Open CKT Or Short-GND
Test B: B1251 Or B1251-A/C Incar Temp Sensor Open CKT Or Short-GND

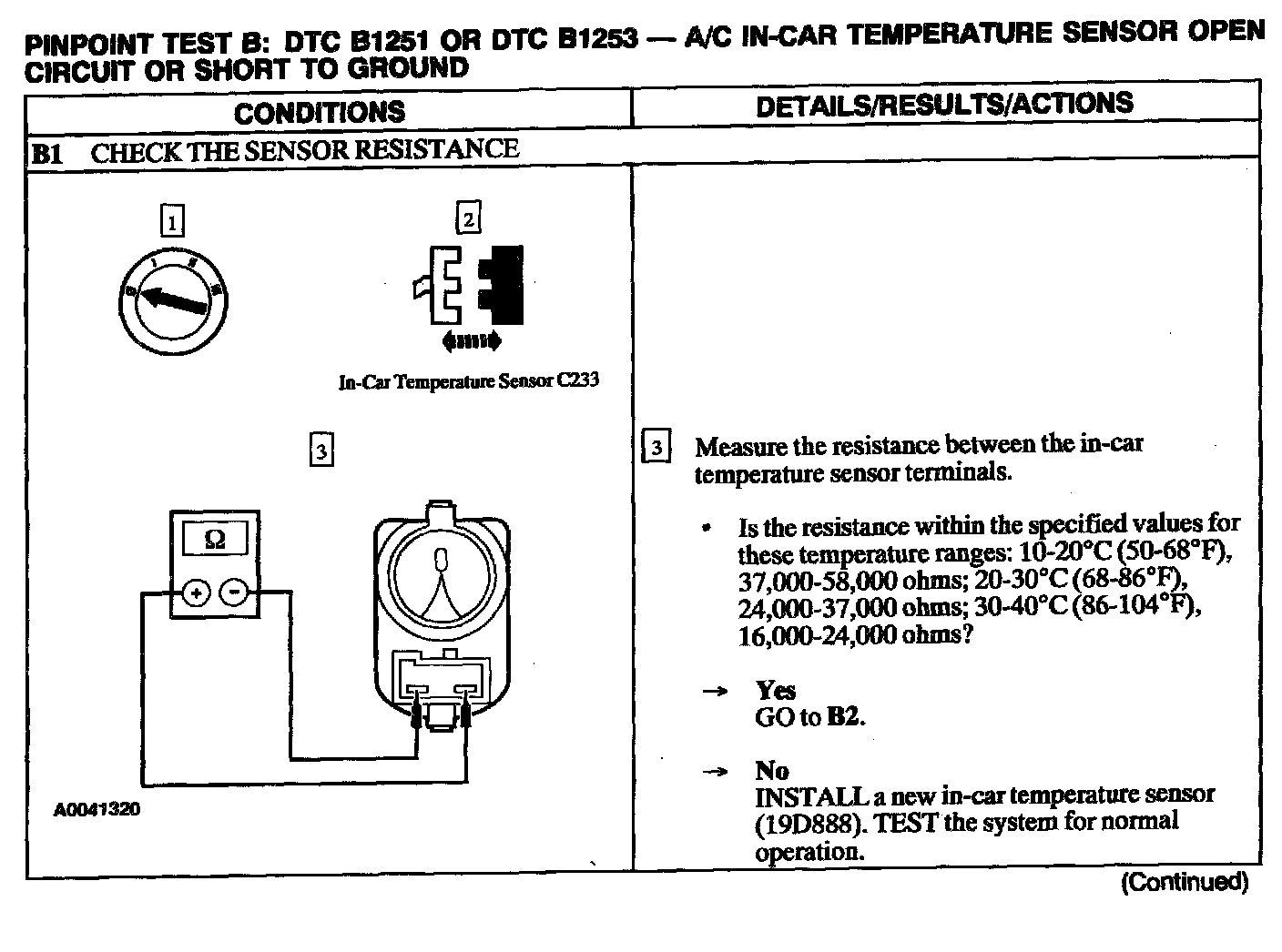

B1:
B2 - B3:
B4 - B5:
B6:
