Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
F 150 2WD Pickup V8-5.4L CNG VIN M
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Bi-Fuel Models (Bi-Fuel/CNG System)
>>
Test HC: Fuel Delivery System
Test HC: Fuel Delivery System

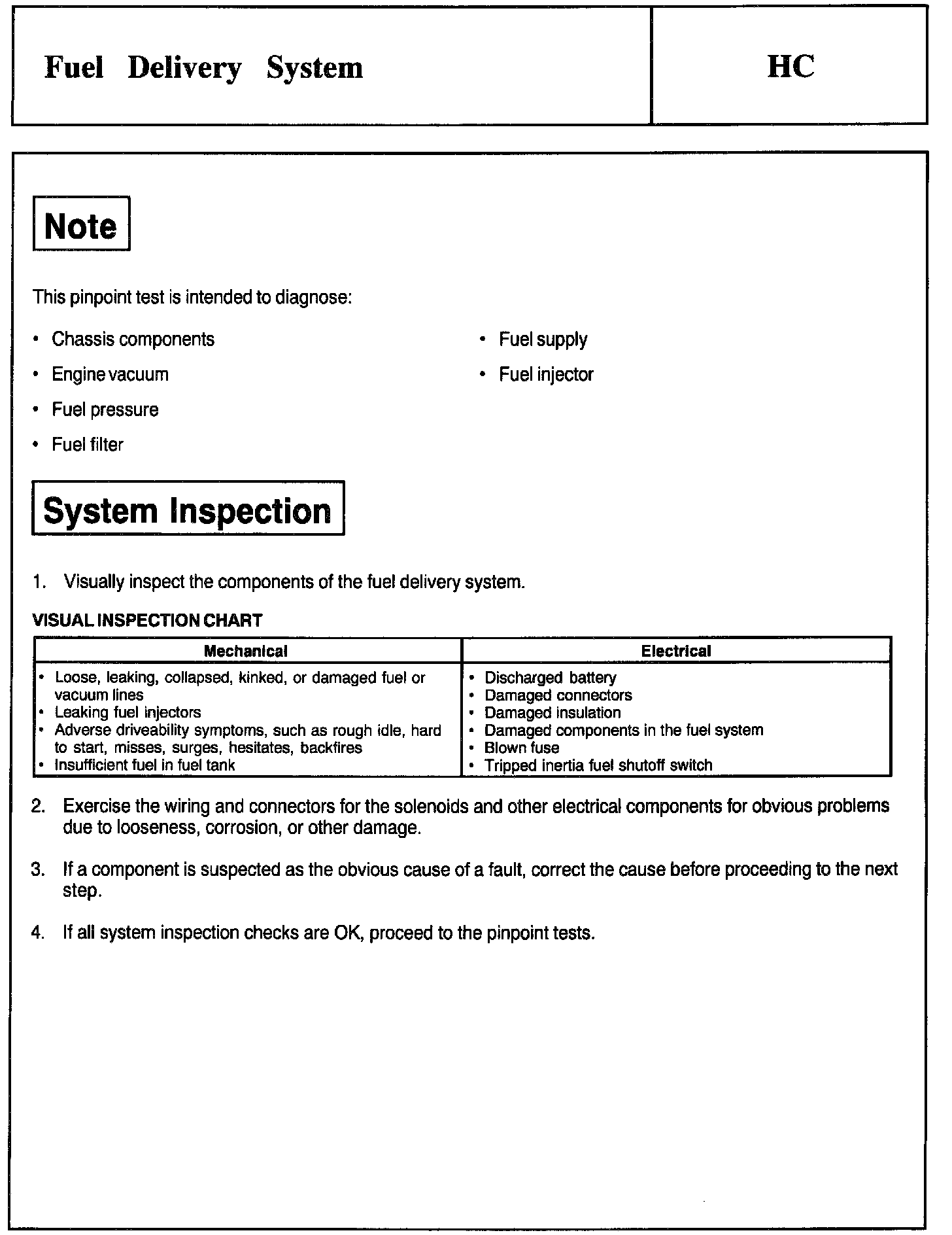

Note, Visual Inspection Chart and Description:

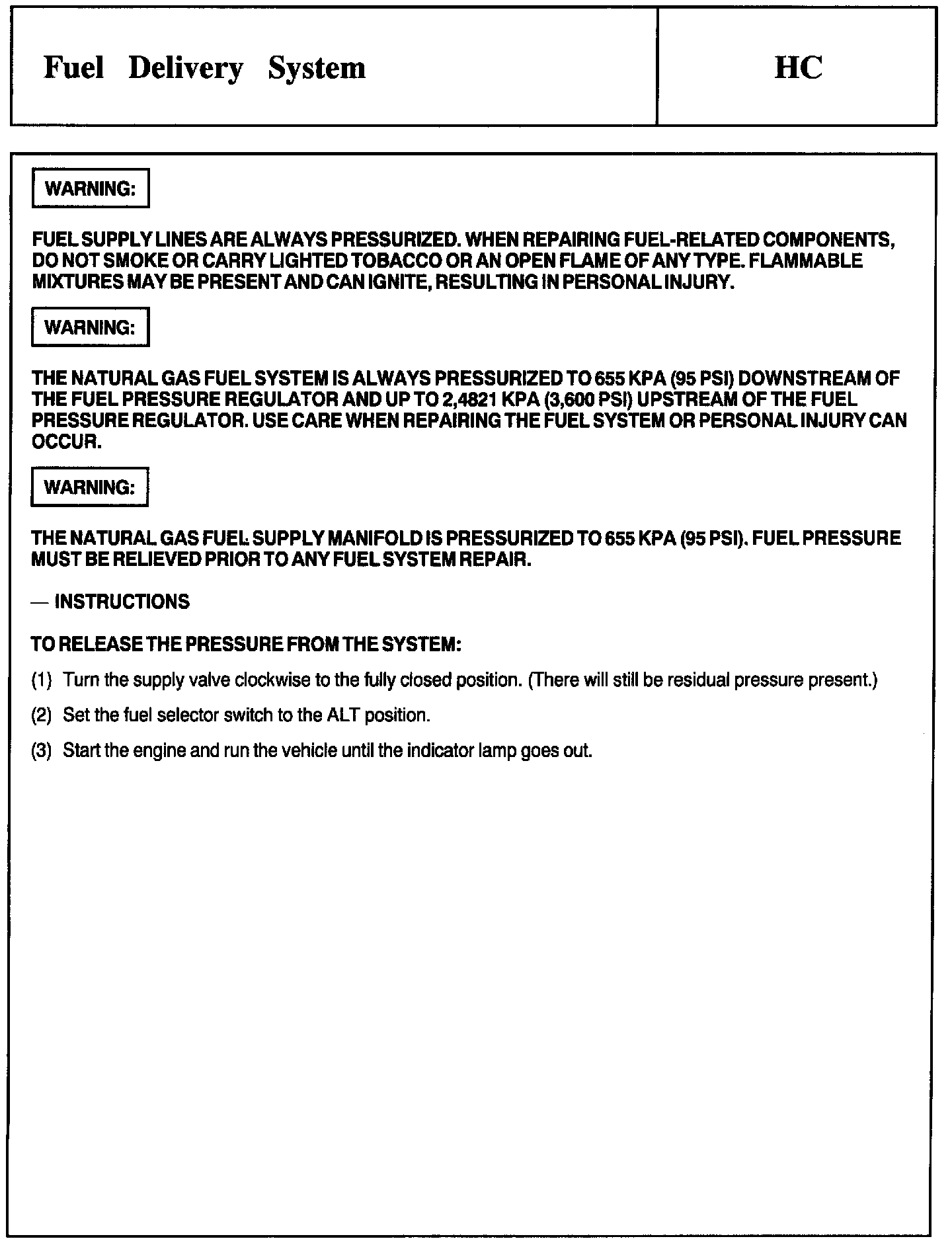

Warnings:

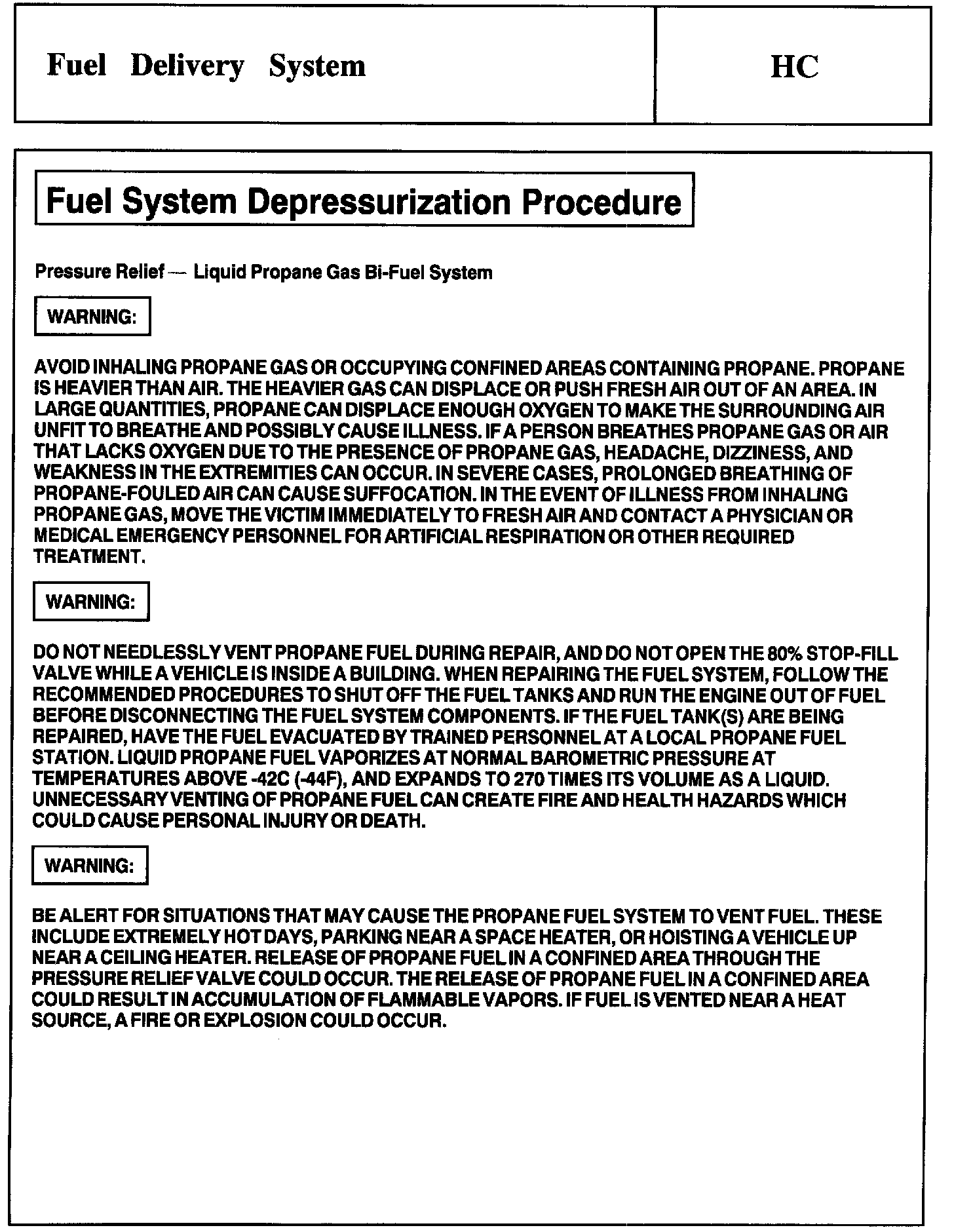

Warnings:

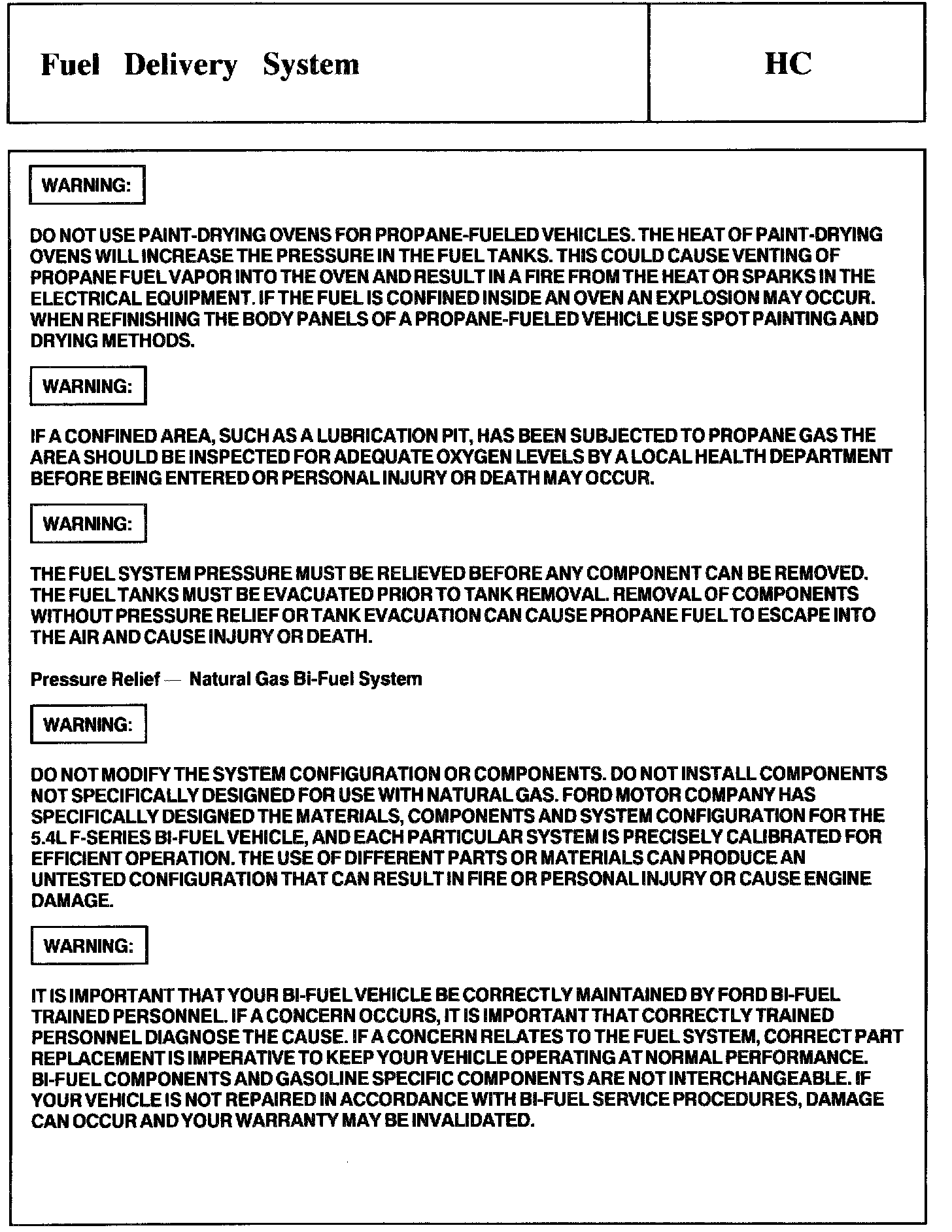

Warnings and Instructions:

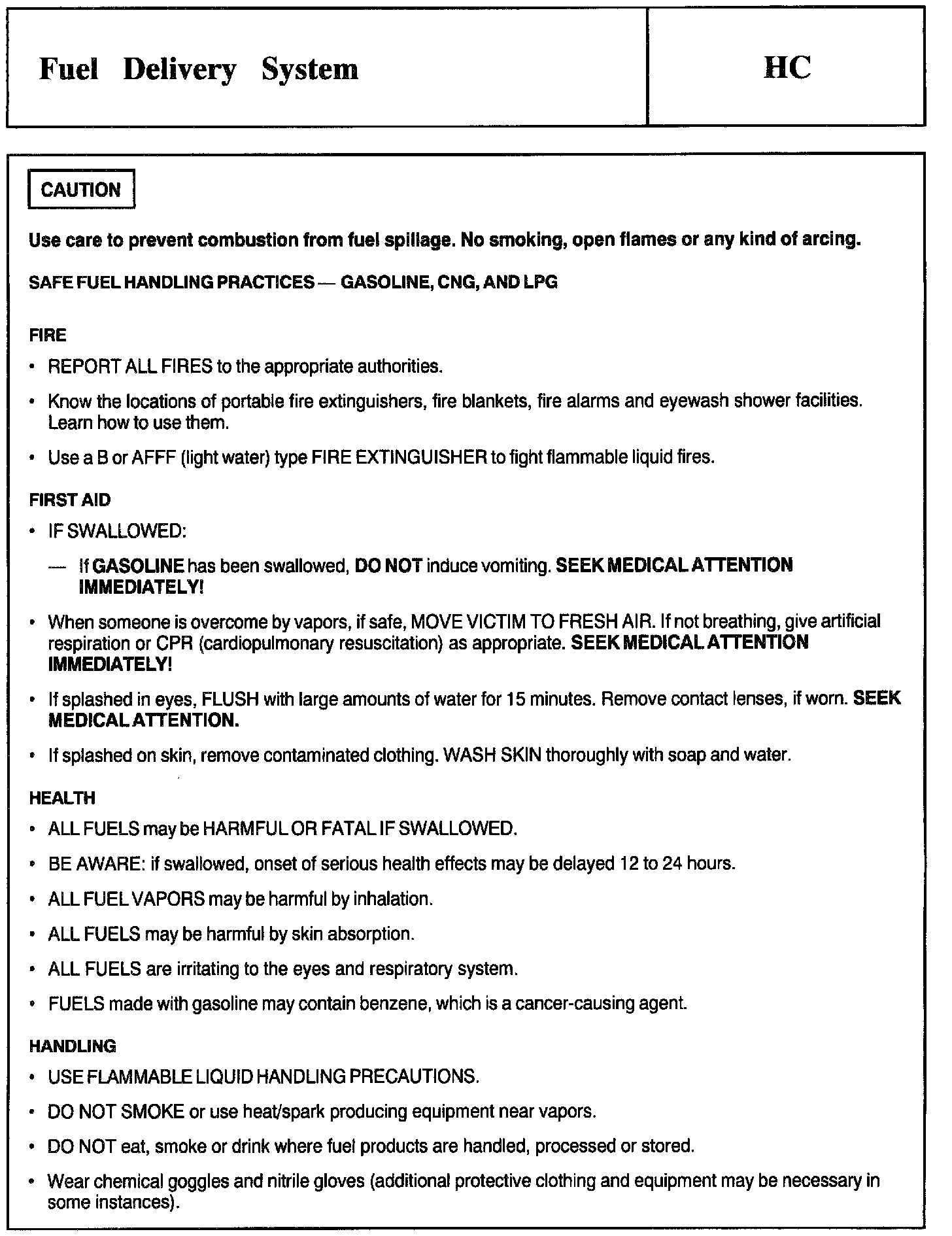

Caution:

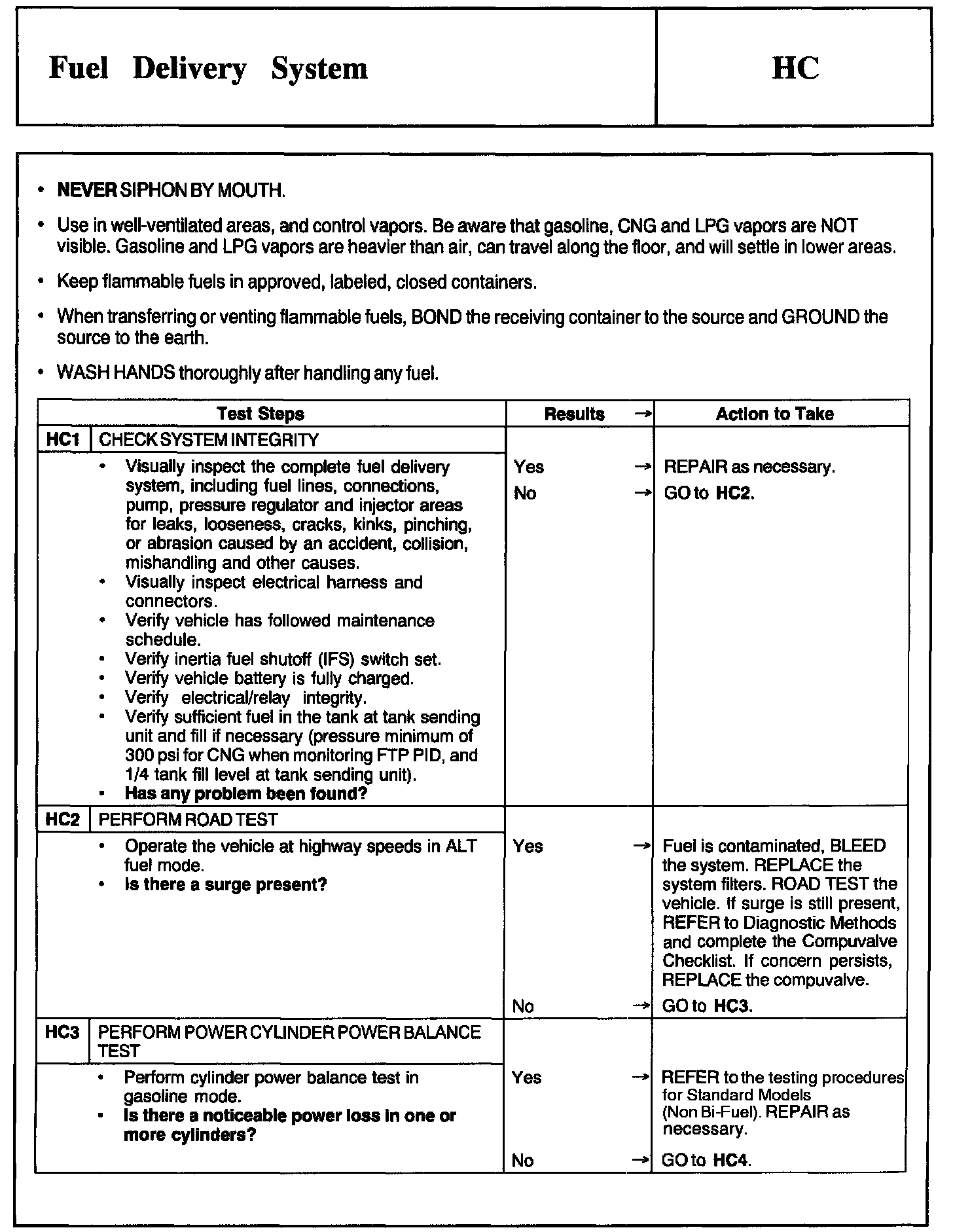

Caution, Test HC1 - HC3:

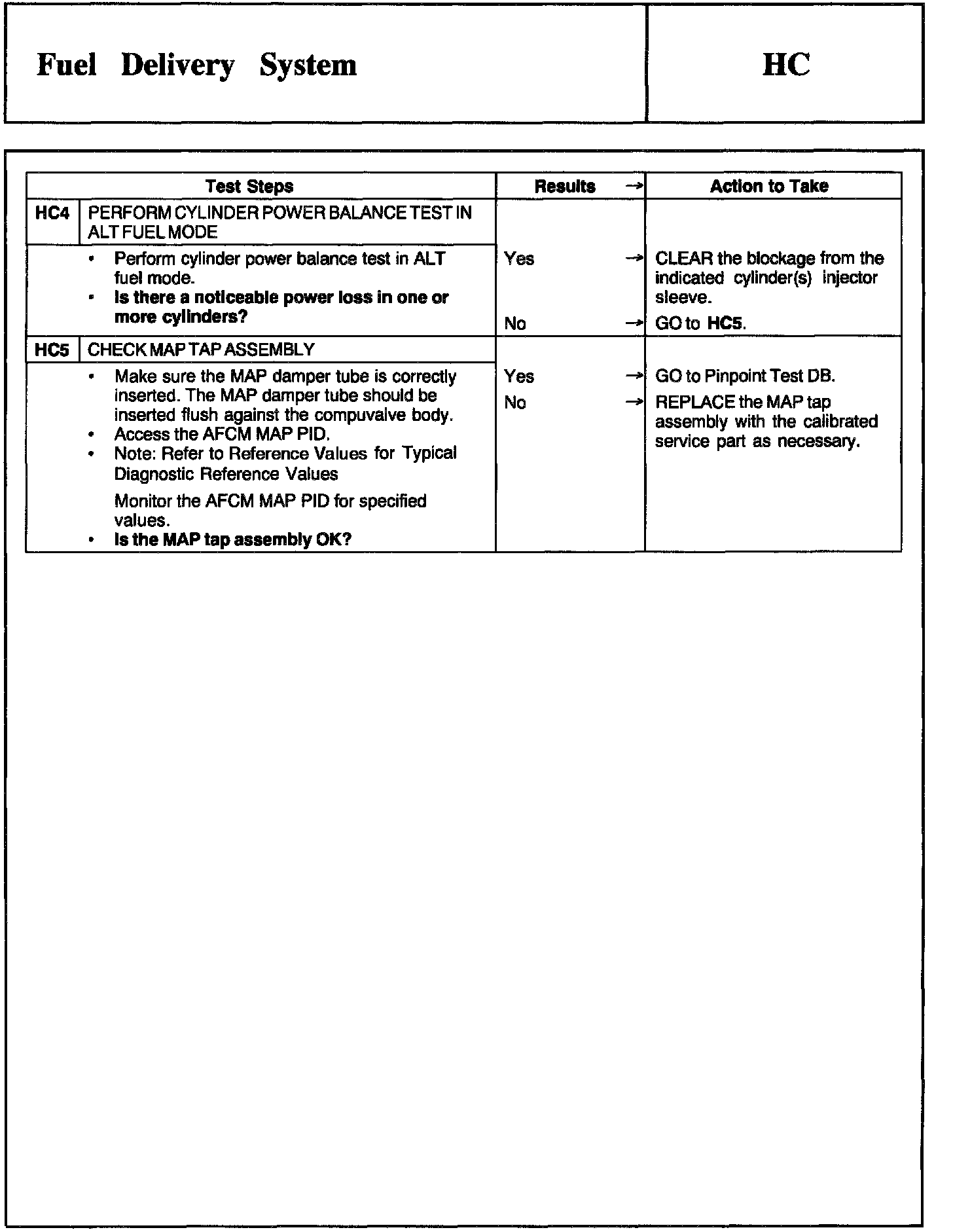

HC4 - HC5:
