Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
F 150 4WD Pickup V6-4.2L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Ford 8.8 Inch Front Axle
>>

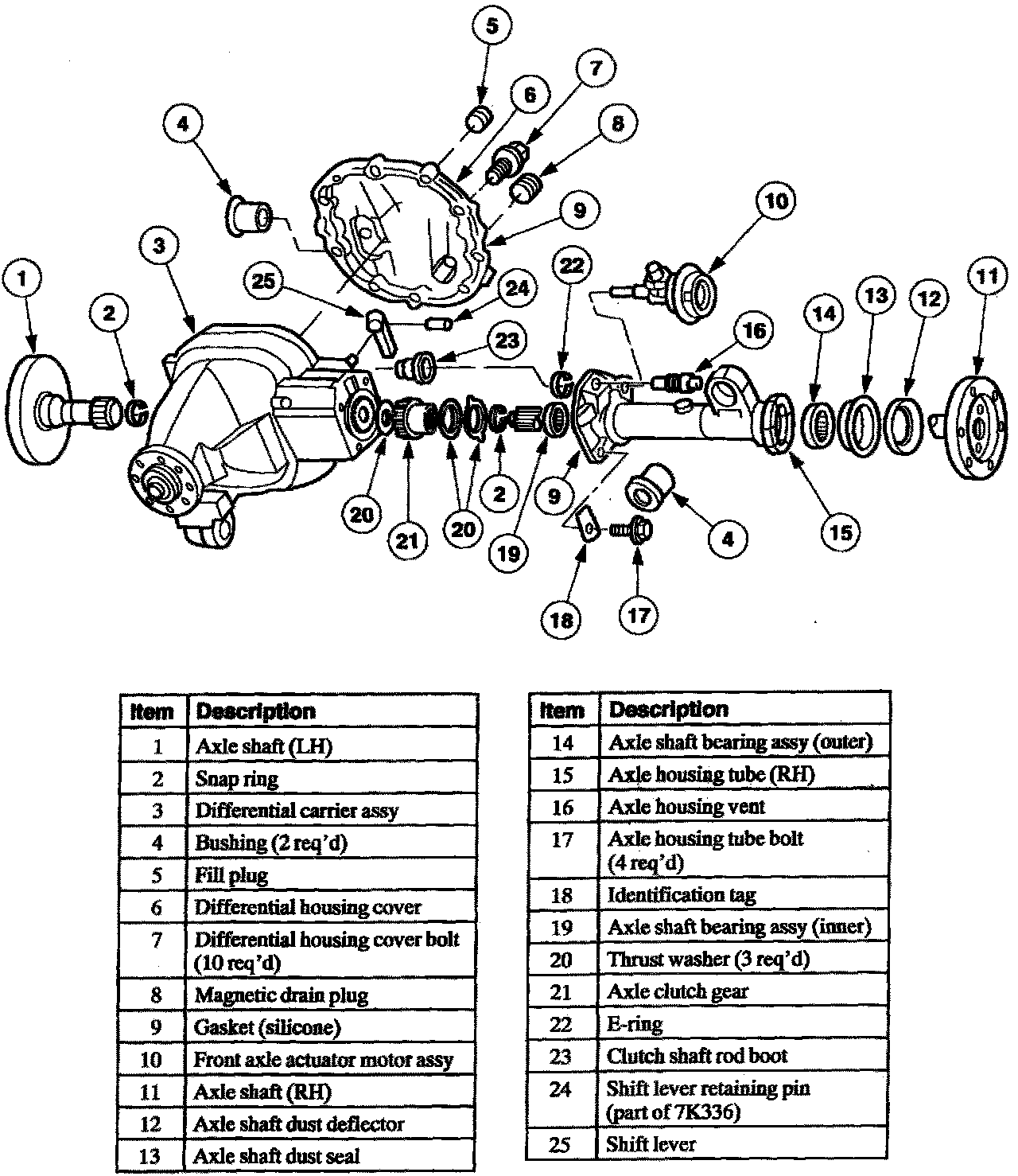

Front Axle Assembly -Exploded View
Front Axle Assembly -Exploded View
