Camshaft Position Sensor

REMOVAL
1. Disconnect the battery ground cable.
2. Partially drain the cooling system.
3. Remove the air cleaner outlet tube.

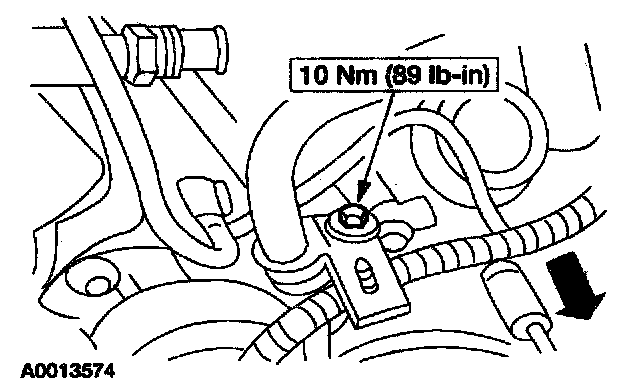

4. Disconnect the engine harness from the water tube, remove the bolt and position the heater water outlet tube aside.

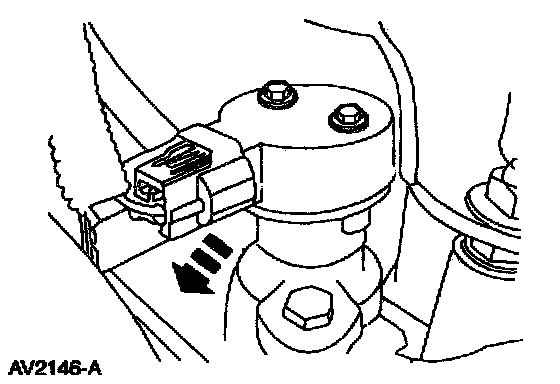

5. Disconnect the Camshaft Position (CMP) sensor electrical connector.

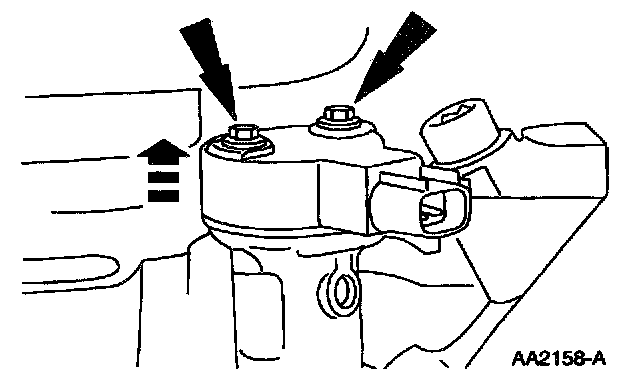

6. Remove the screws and the CMP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
