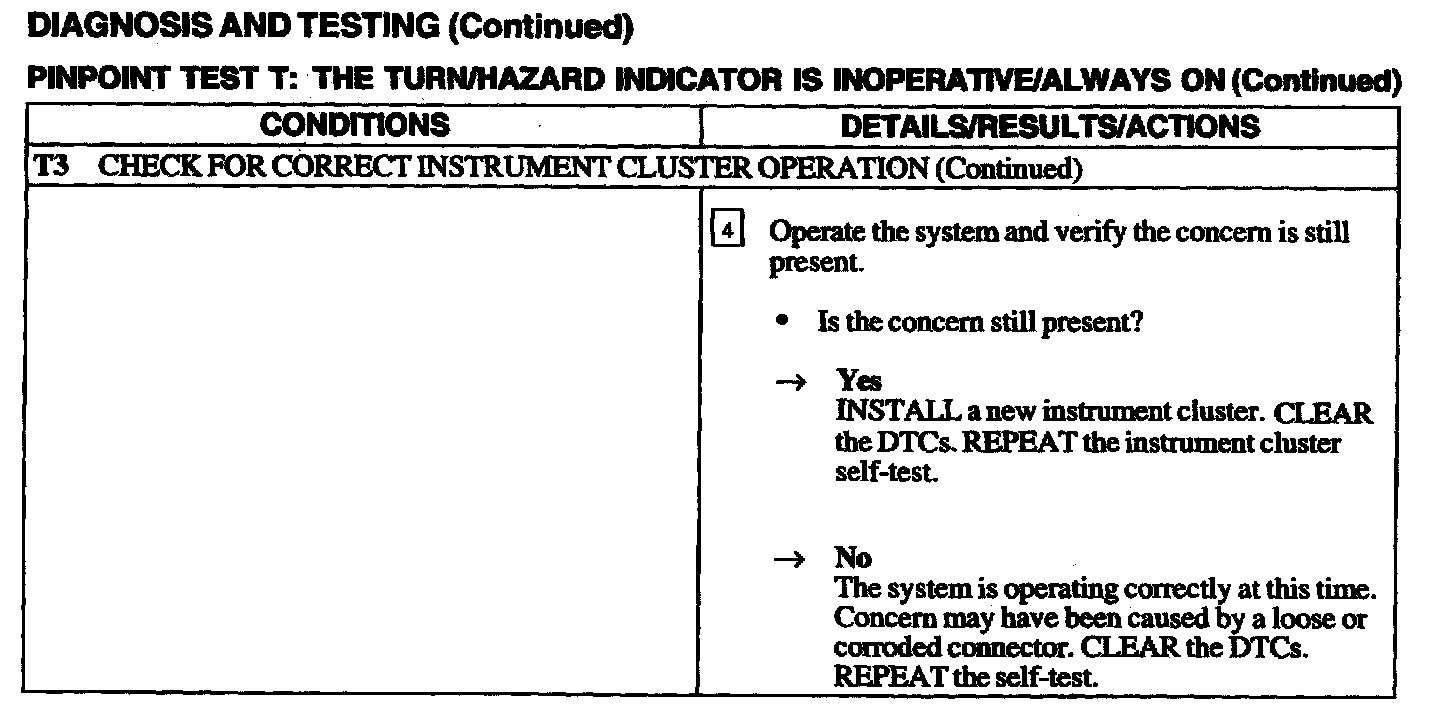

Test T: Turn/Hazard Indicator Is Inoperative/Always On
Test T: Turn/Hazard Indicator Is Inoperative/Always On
T1 - T2:
T2 - T3:
T3:
