Home >> Ford >> 2002 >> F 150 4WD Pickup V8-5.4L SOHC VIN L >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Trailer Lighting Relay >> Testing and Inspection >> Trailer Tow Relay, Reversing Lamp

Trailer Tow Relay, Reversing Lamp

Introduction To Component Testing:

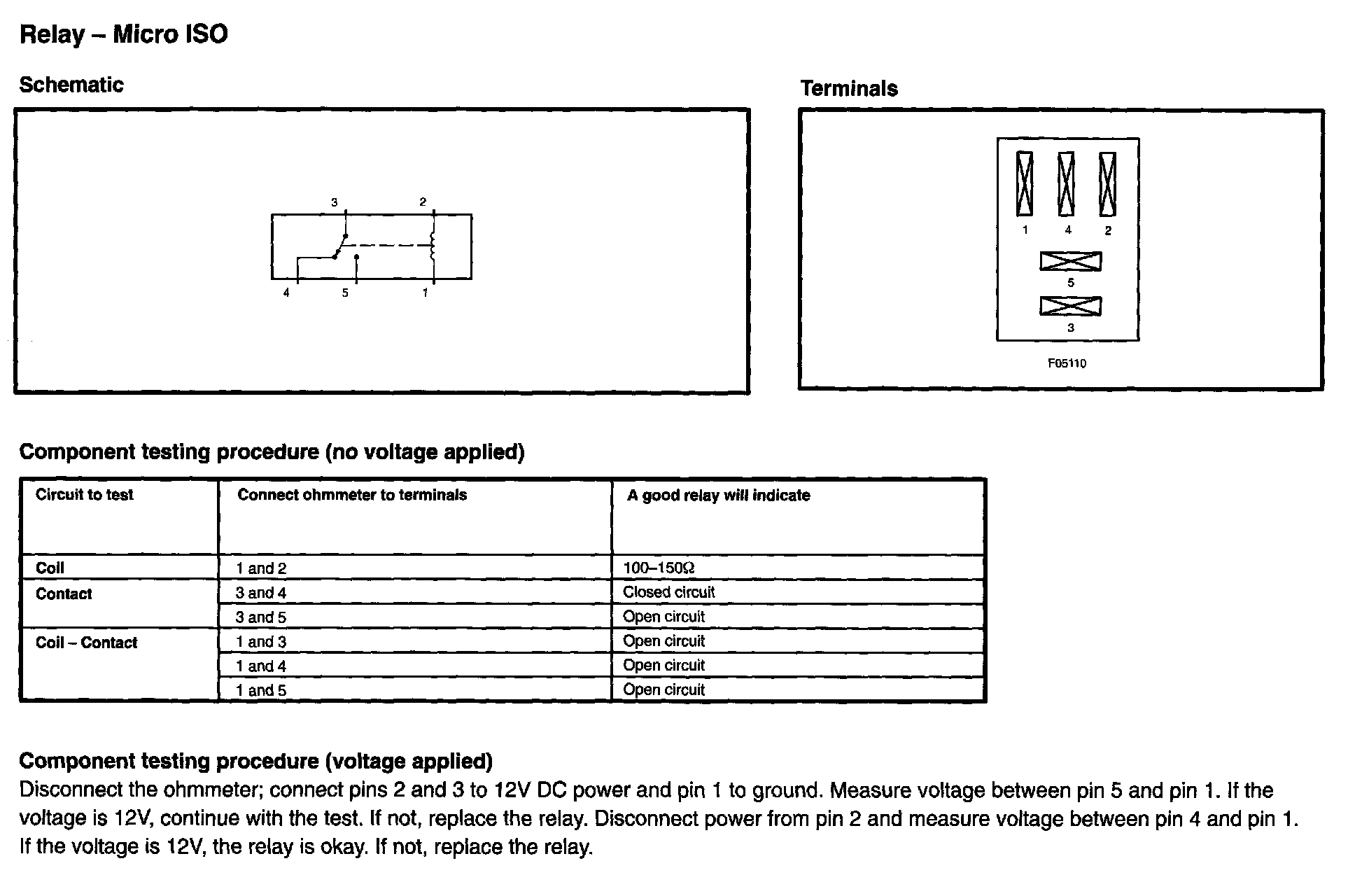

Relay-Micro ISO:
