Pump

Pump

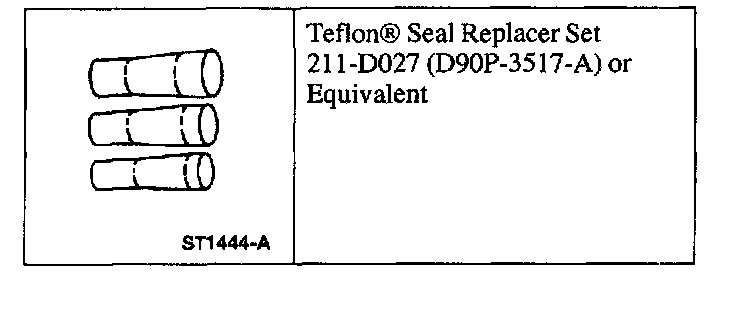

Special Tools:

Special Tool(s)

Removal
1. Remove the engine air cleaner assembly.
2. Remove the drive belt.

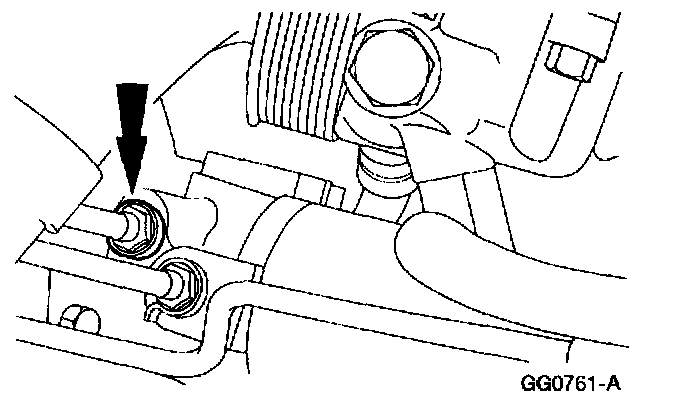

3. Disconnect the power steering pressure hose from the steering gear.
4. Raise the vehicle.

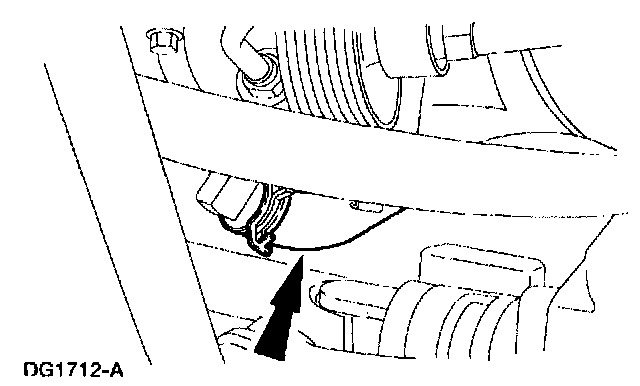

5. Disconnect the power steering reservoir pump hose from the power steering pump.
^ Drain the power steering fluid reservoir.

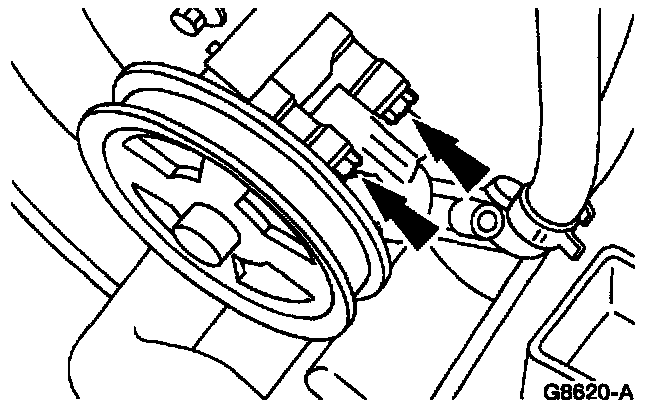

6. Remove the upper power steering pump bolts.

7. NOTE: Early build 4.6L and 5.4L engines may have two lower power steering pump bolts; the second bolt may be discarded upon removal of the power steering pump.

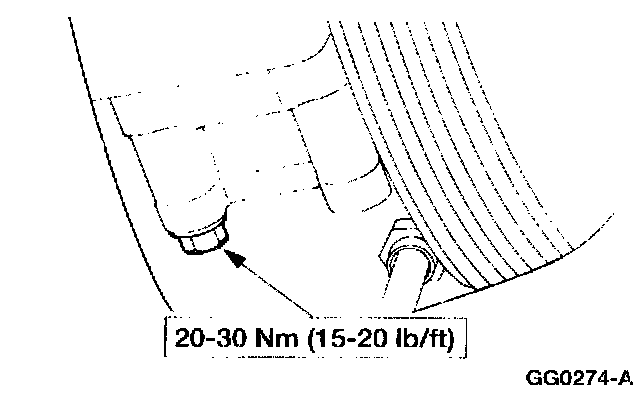

Remove the lower power steering pump bolt and remove the power steering pump.

8. NOTE: Secure the power steering pump in a vise.

Remove the power steering pressure hose.

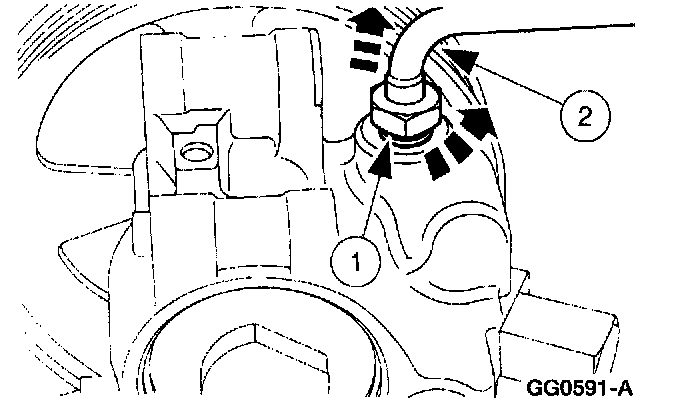

1. Loosen the power steering pressure hose fitting.
2. Remove the power steering pressure hose.

Installation

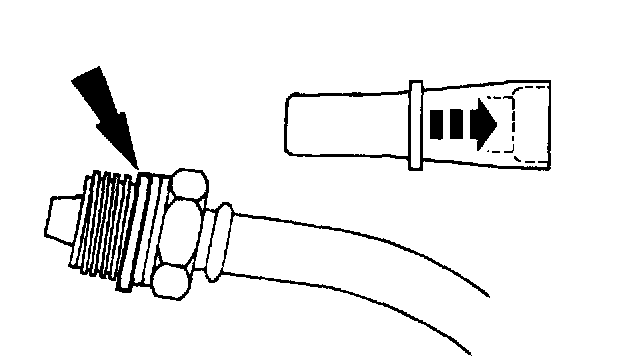

1. Install the power steering seal by stretching the seal over the seal replacer until it is large enough to slip over the tube nut.
2. Install the power steering pressure hose.





1. Position the power steering pressure hose into the pump.

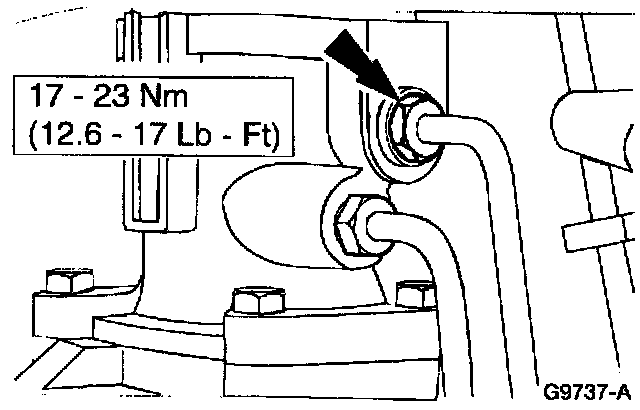

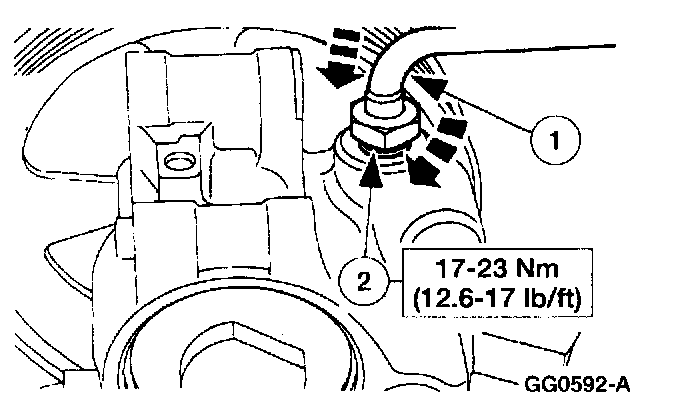

2. Tighten the pressure hose fitting.

3. Position the power steering pump and loosely install the power steering pump bolts.





4. Tighten the power steering pump upper bolts.





5. Tighten the power steering pump lower bolt.





6. Connect the power steering reservoir pump hose to the power steering pump.
7. Lower the vehicle.





8. Connect the power steering pressure hose to the steering gear.
9. Install the drive belt.
10. Install the engine air cleaner assembly.
11. Fill and leak check the system.
