Front Cross-Member: Service and Repair

Transmission Support Crossmember

Removal
1. Raise and support the vehicle.





2. CAUTION: Use a suitable transmission jack to support the transmission

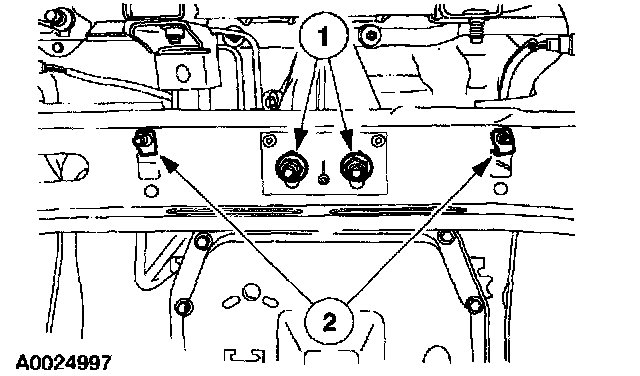

Remove the nuts and bolts.
1 Remove the transmission mounting nuts.
2 Remove the heat shield-to-transmission support crossmember bolts.

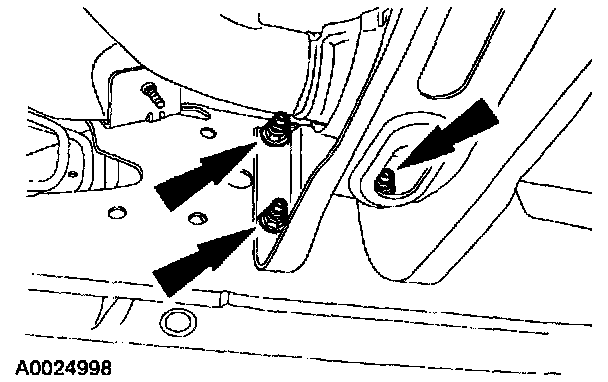

3. Remove the six transmission support crossmember nuts (three per side).

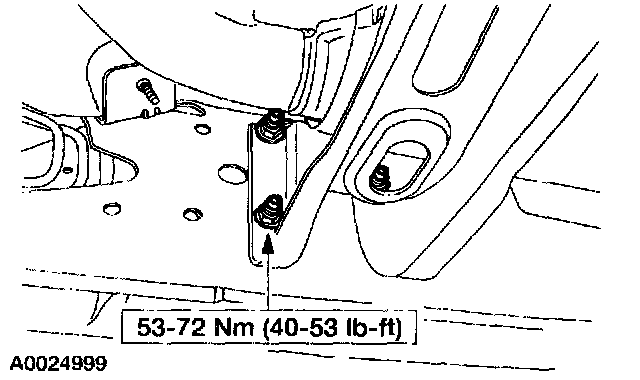

Installation








1. Follow the removal procedure in reverse order.
