Cruise Control Servo: Service and Repair

REMOVAL







1. To remove the speed control cable cap depress the locking tab and rotate the cap.







2. Disconnect the speed control cable from the speed control servo.
1 Gently push the retaining spring.
2 Disconnect the speed control cable slug from the speed control servo pulley.







3. Disconnect the speed control servo electrical connector.

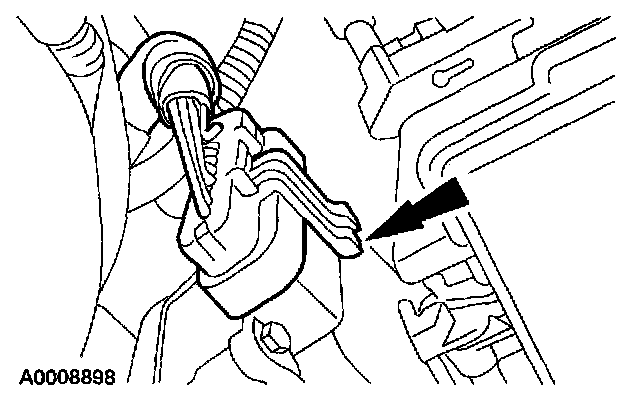

^ Depress the connector tabs.
^ Remove the connector.

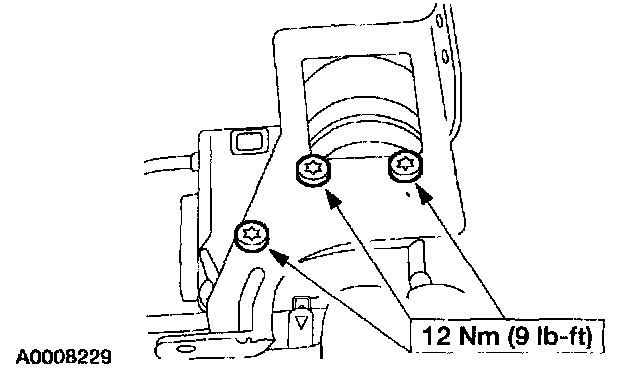

4. Remove the bolts, the speed control servo and bracket.

NOTE: Do not remove the rubber grommets from the speed control servo bracket.

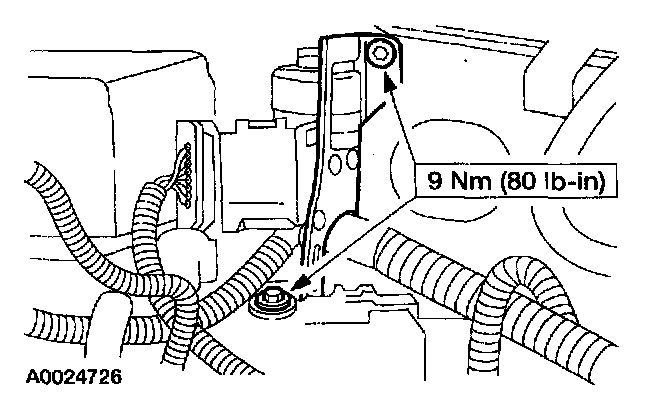

5. Remove the screws and the speed control servo bracket.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure the rubber seal is fully seated onto the speed control cable cap.
