Ford
>>
2002
>>
F 150 Super Crew 2WD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drive/Propeller Shaft
>>

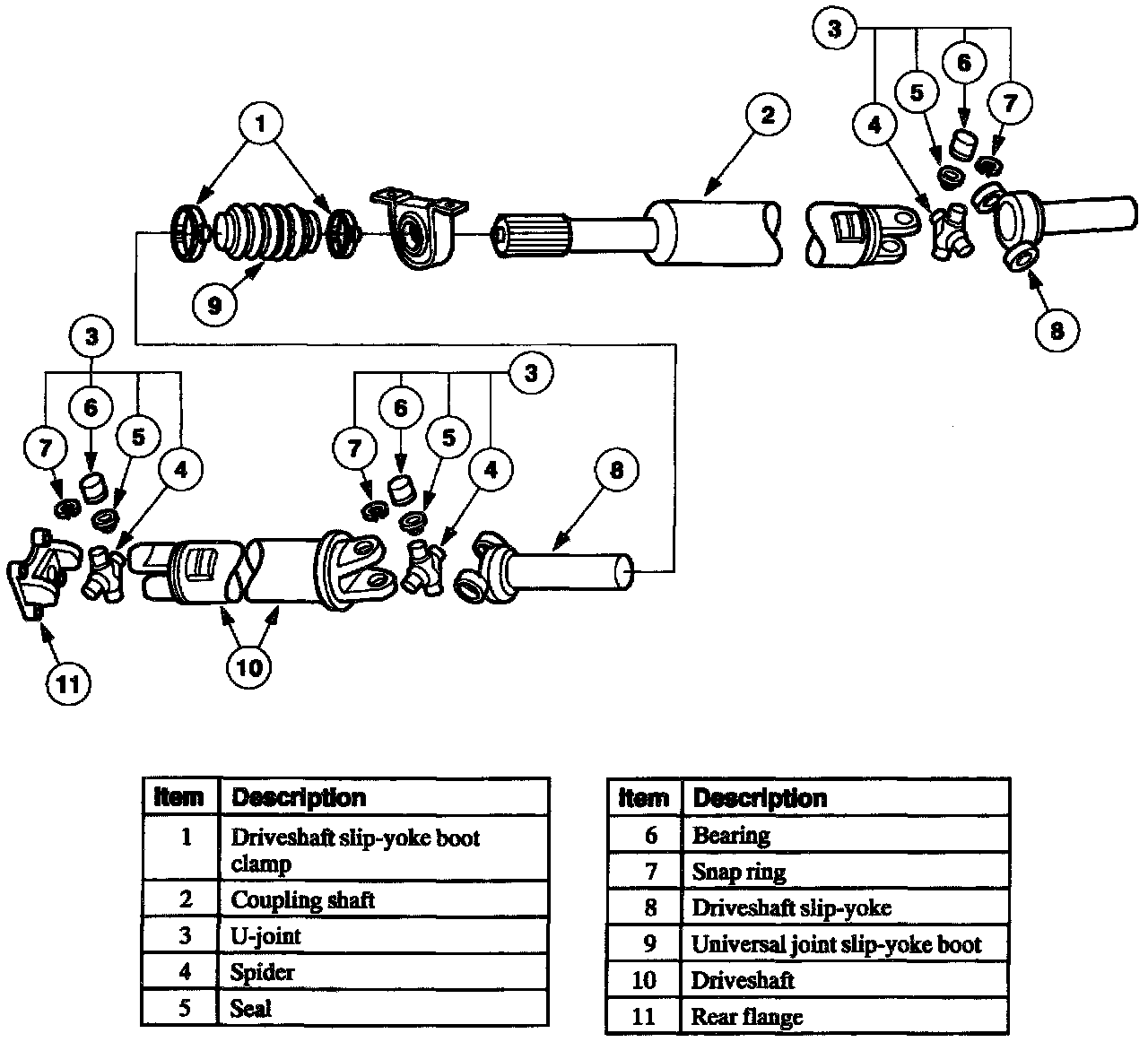

Driveshaft-Rear Two-Piece
Driveshaft-Rear Two-Piece
