Condenser HVAC: Service and Repair

REMOVAL

NOTE:
^ Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.
^ If an A/C condenser core leak is suspected, the A/C condenser core must be leak tested before it is removed from the vehicle.

1. Recover the refrigerant.
2. Remove the upper radiator sight shield.

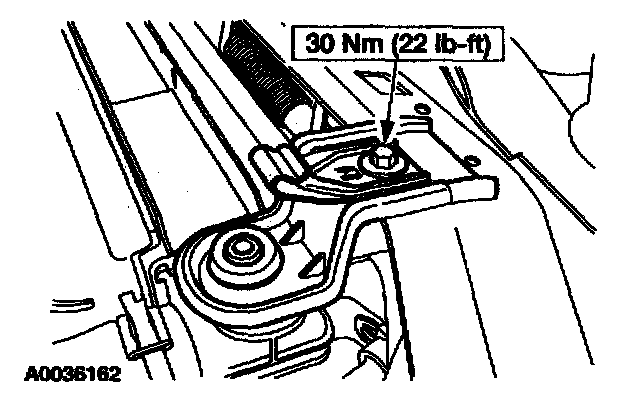

3. Remove the bolts and remove the radiator brackets.

NOTE: RH radiator bracket shown, LH similar.

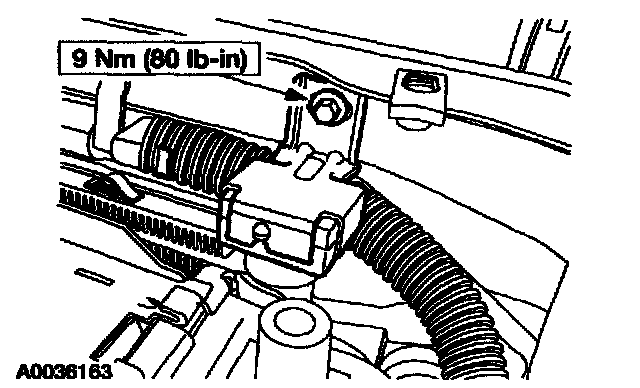

4. Disconnect the A/C lines from the condenser core.







5. Remove the bolts and remove the condenser brackets.

NOTE: RH condenser bracket shown, LH similar.

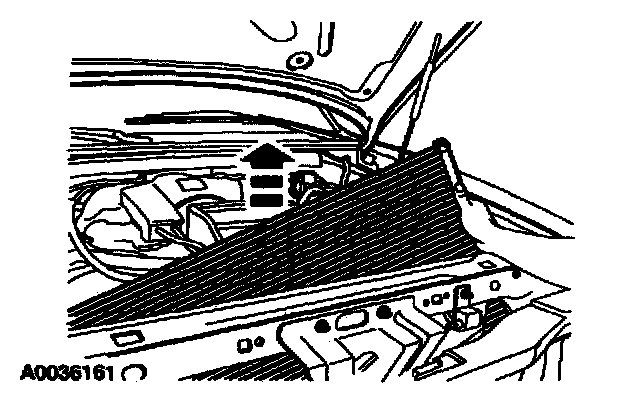

6. Remove the condenser core.

INSTALLATION
1. To install, reverse the removal procedure.
^ Install new O-rings lubricated in clean PAG oil.
^ Lubricate the refrigerant system with the correct amount of clean PAG oil.
