Manual A/C

REMOVAL
1. Disconnect the battery.

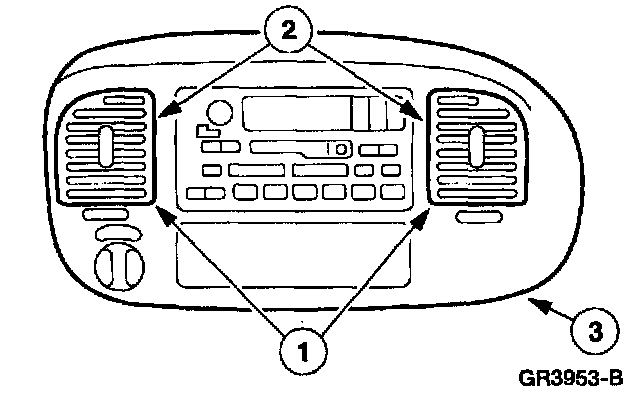

2. Detach the center instrument panel finish panel.
1 Rotate the center instrument panel finish panel vents inward.
2 Through the vent openings, grasp the center instrument panel finish panel and pull outward.
3 Detach the center instrument panel finish panel.

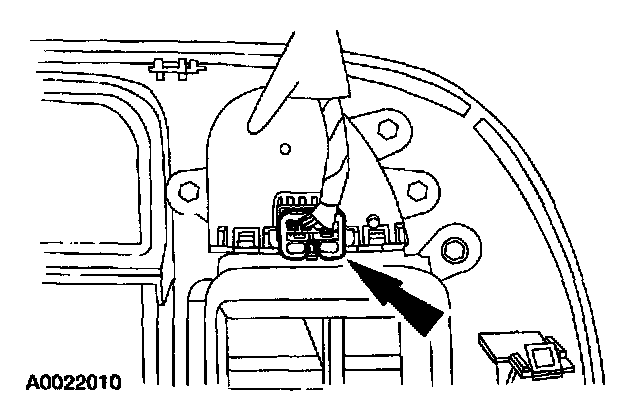

3. Disconnect the Passenger Air Bag Deactivation (PAD) switch electrical connector.

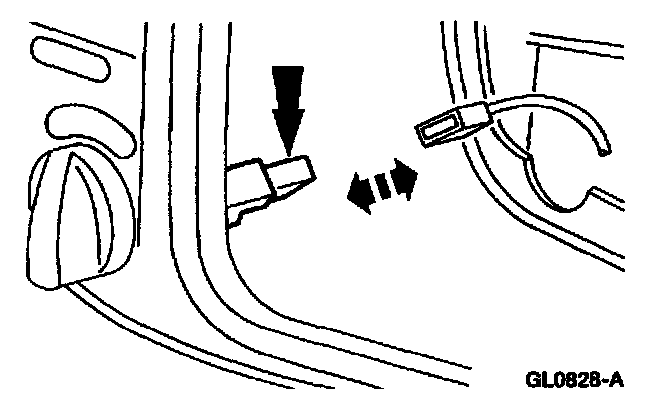

4. If equipped, disconnect the 4WD control switch connector. Remove the center instrument panel finish panel.

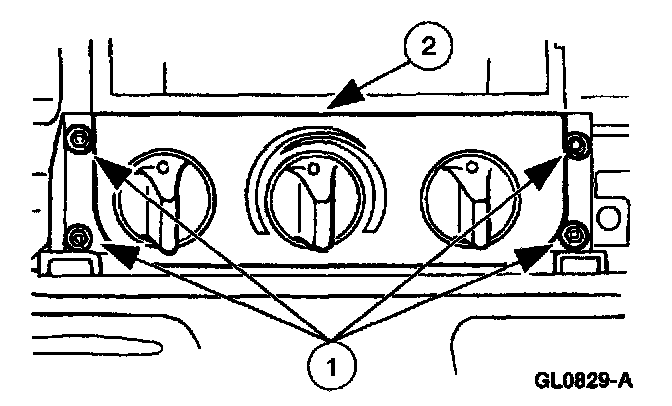

5. Remove the climate control assembly.
1 Remove the screws.
2 Pull out the climate control assembly.

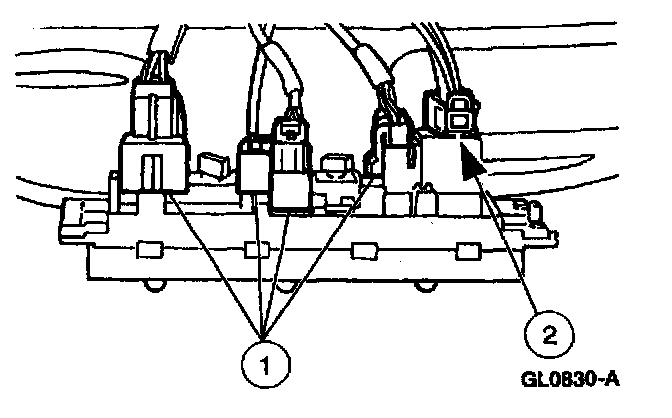

6. Disconnect the climate control assembly.
1 Disconnect the electrical connectors.
2 Disconnect the vacuum line connector.

INSTALLATION
1. To install, reverse the removal procedure.
