Switches

REMOVAL
1. Remove the climate control assembly.

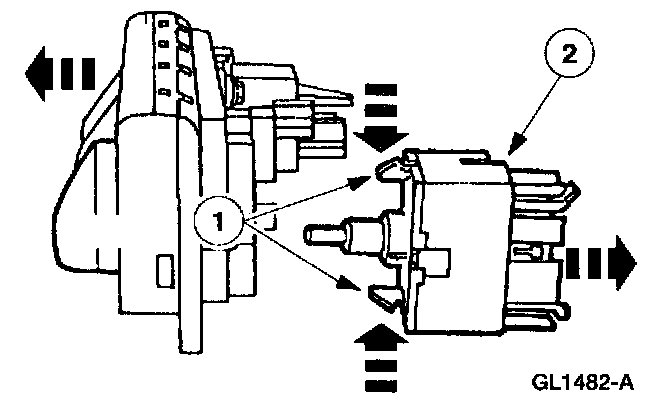

2. Remove the function selector.
1 Depress the snap tabs.
2 Remove the function selector.

NOTE: The knob will drop off as the function selector is removed.

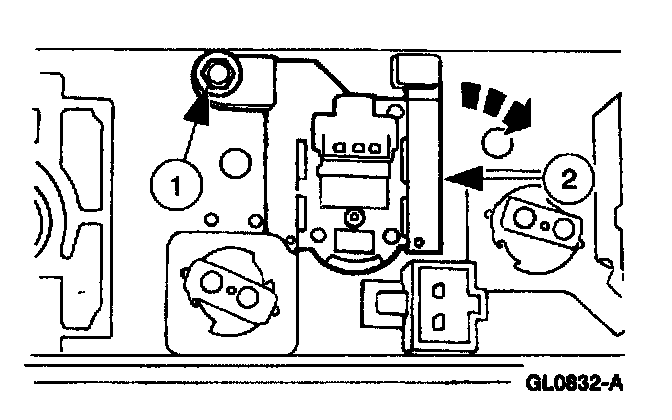

3. Remove the temperature blend control switch.
1 Remove the screw.
2 Rotate and pull the temperature blend control switch.

NOTE: The knob will drop off as the temperature blend control switch is removed.







4. Remove the blower motor switch.
1 Depress the snap tabs.
2 Remove the blower motor switch.

NOTE: The knob will drop off as the blower motor switch is removed.

INSTALLATION
1. To install, reverse the removal procedure.
