Test A: 4WABS Control Module Does Not Respond to Diagnostic Tool
Test A: 4WABS Control Module Does Not Respond to Diagnostic Tool

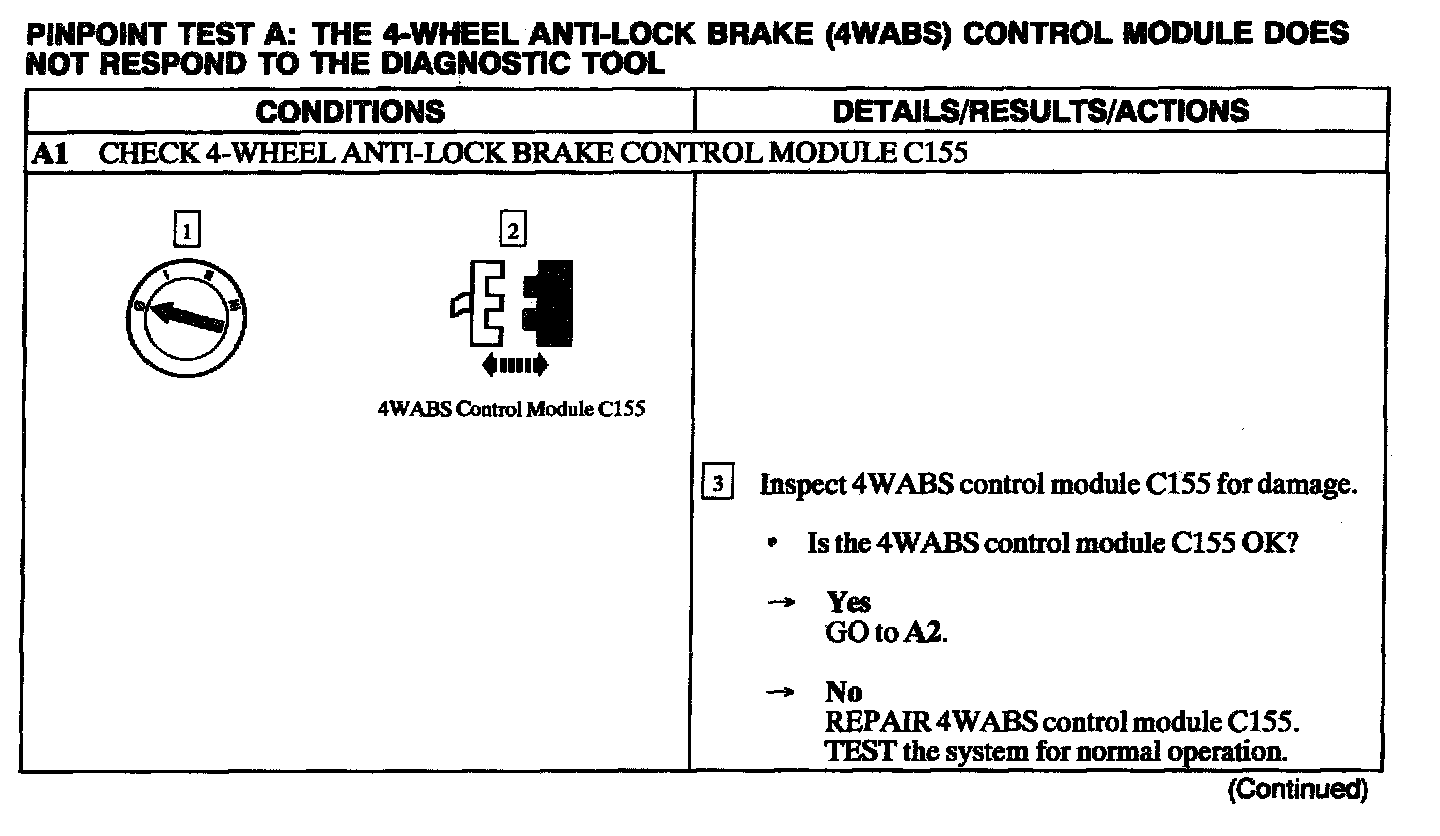

A1:

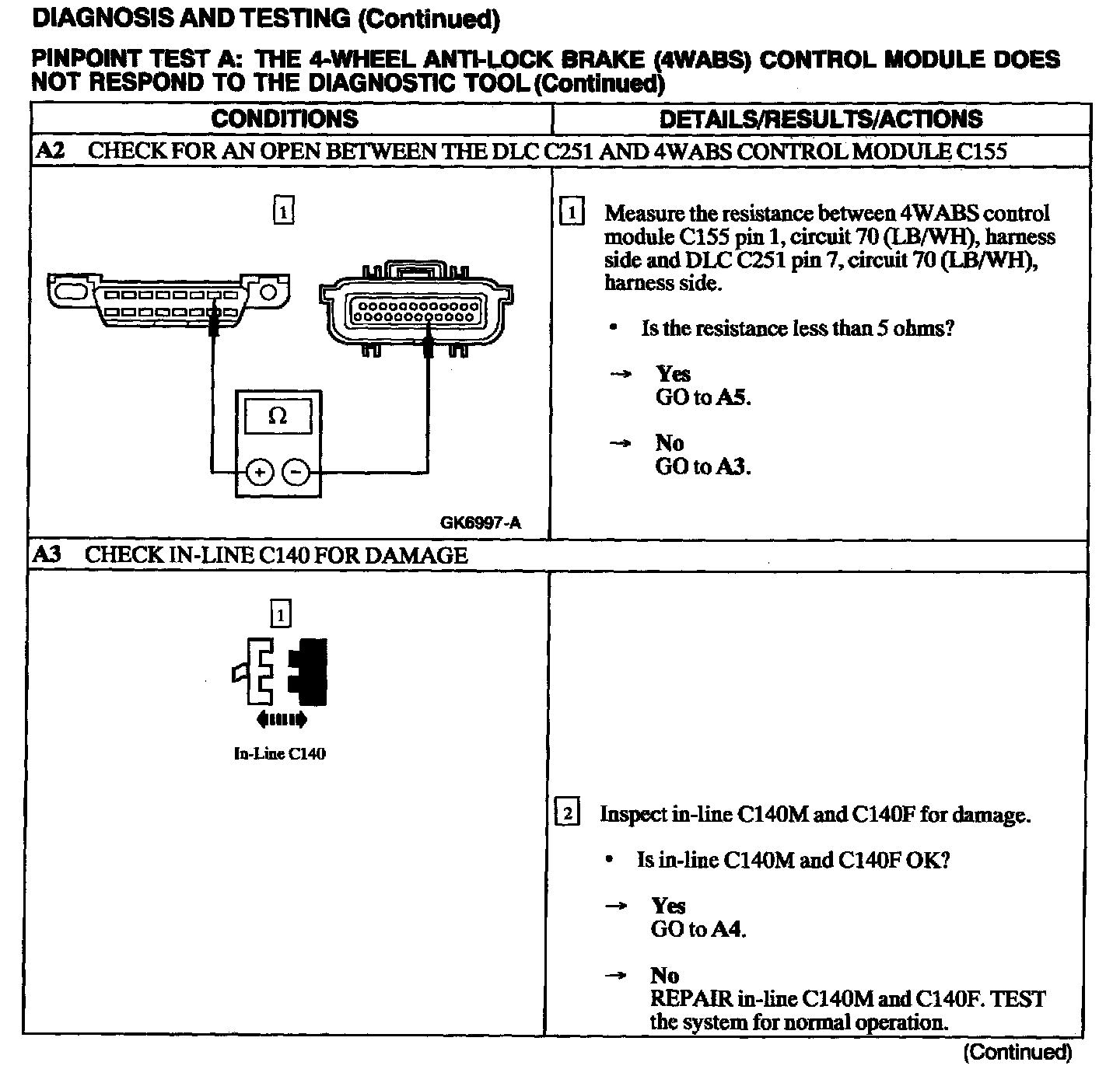

A2 - A3:

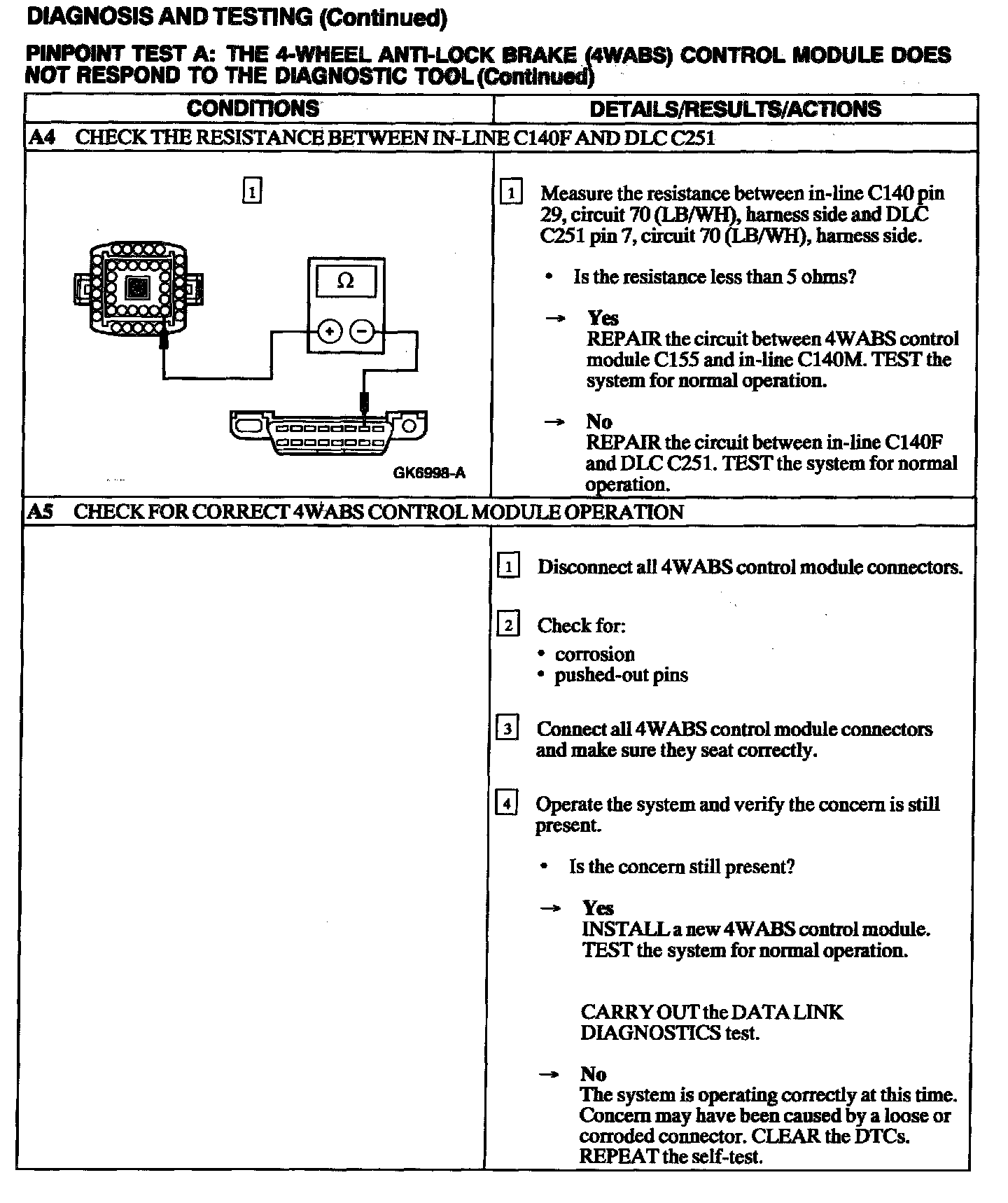

A4 - A5:
