Test I: No SCP Communication Network Communication

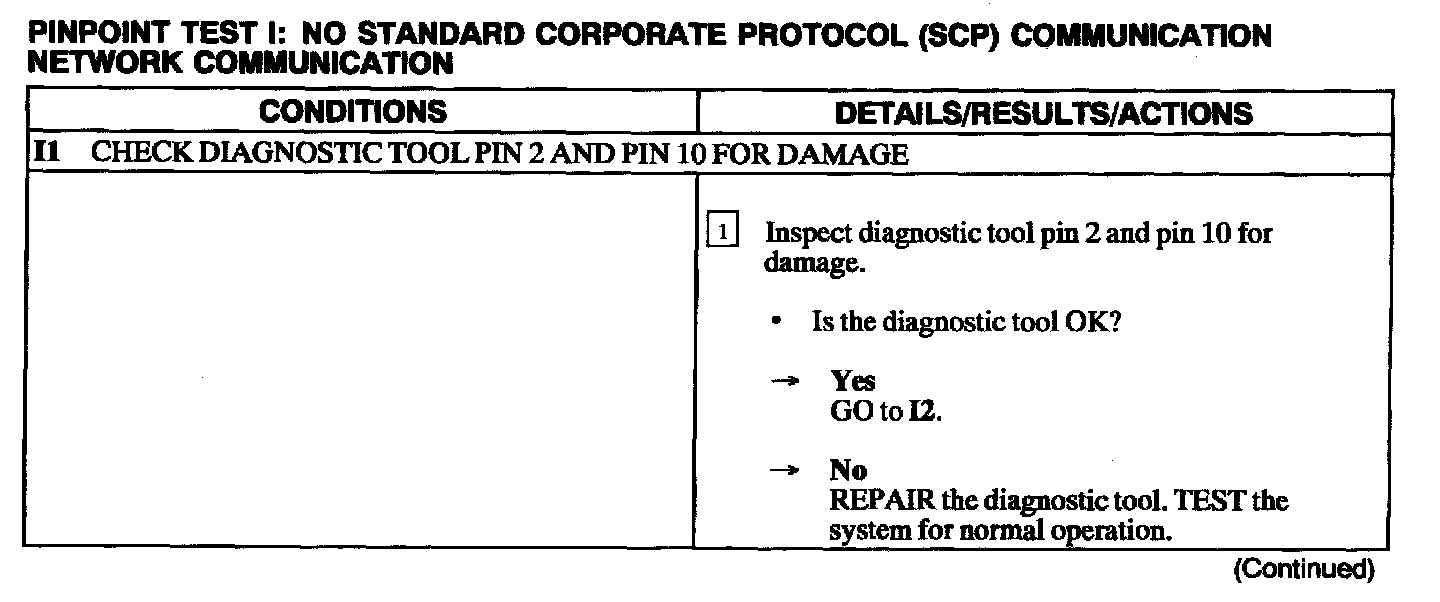

I1:

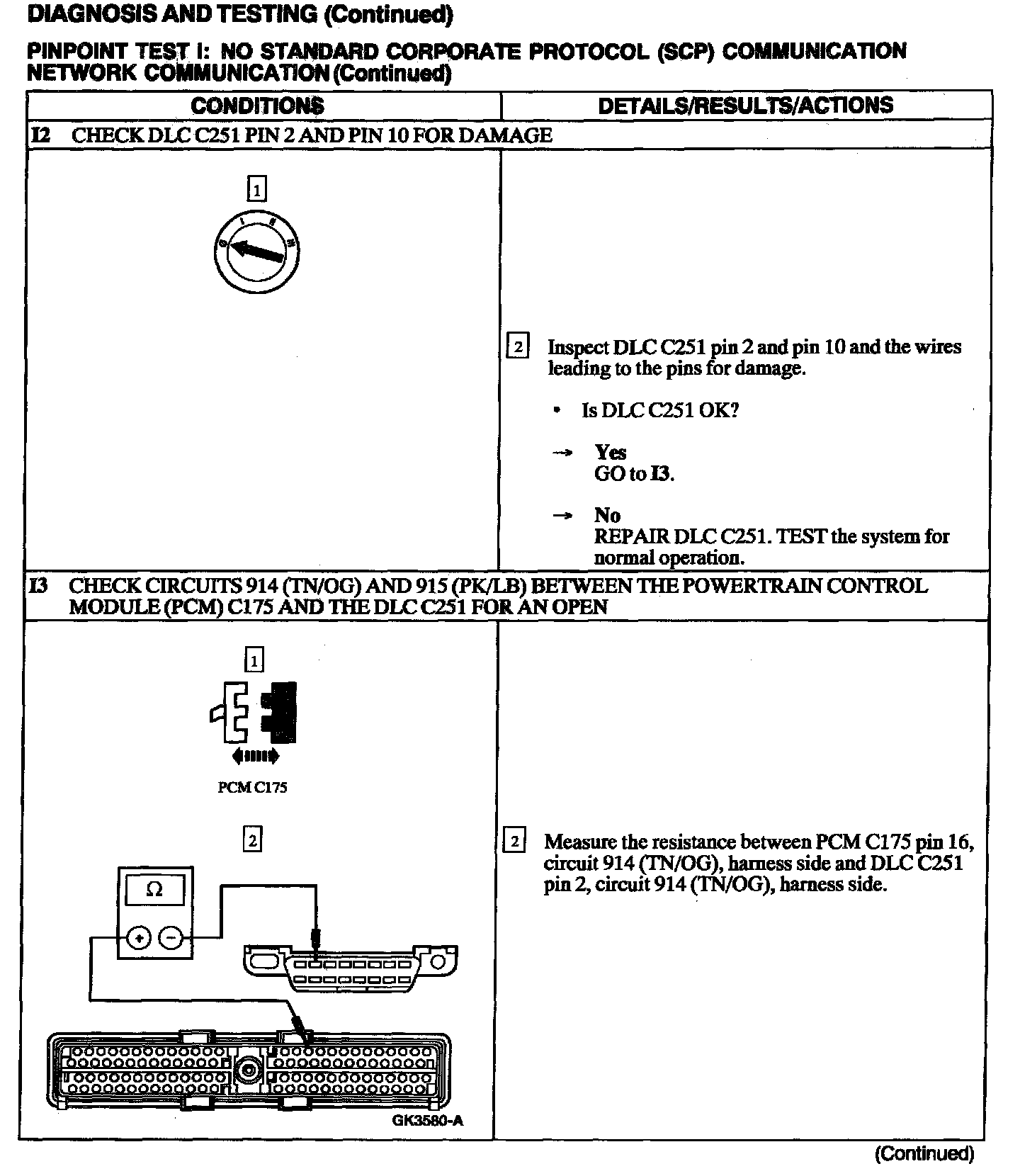

I2 - I3:

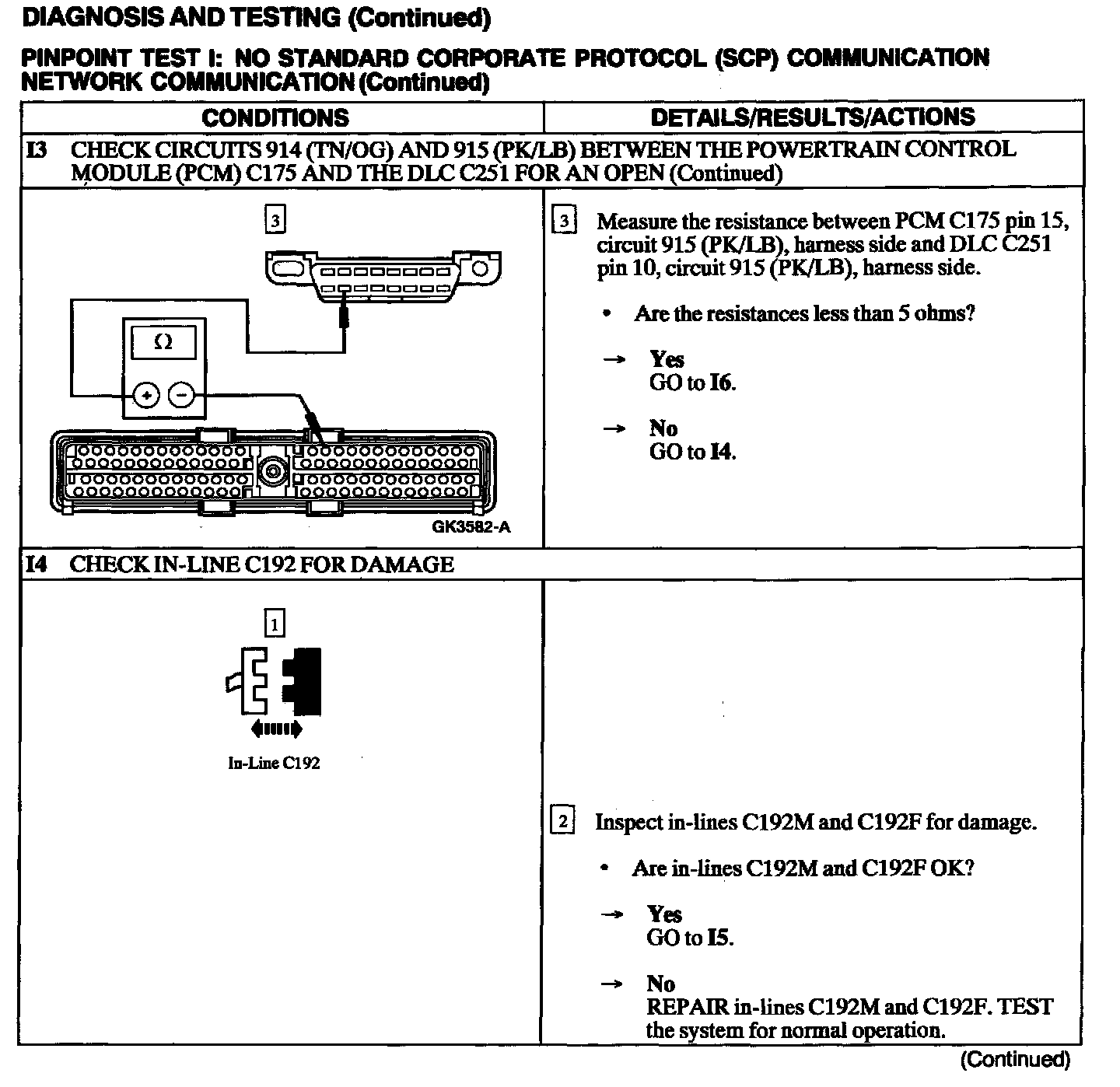

I3 - I4:

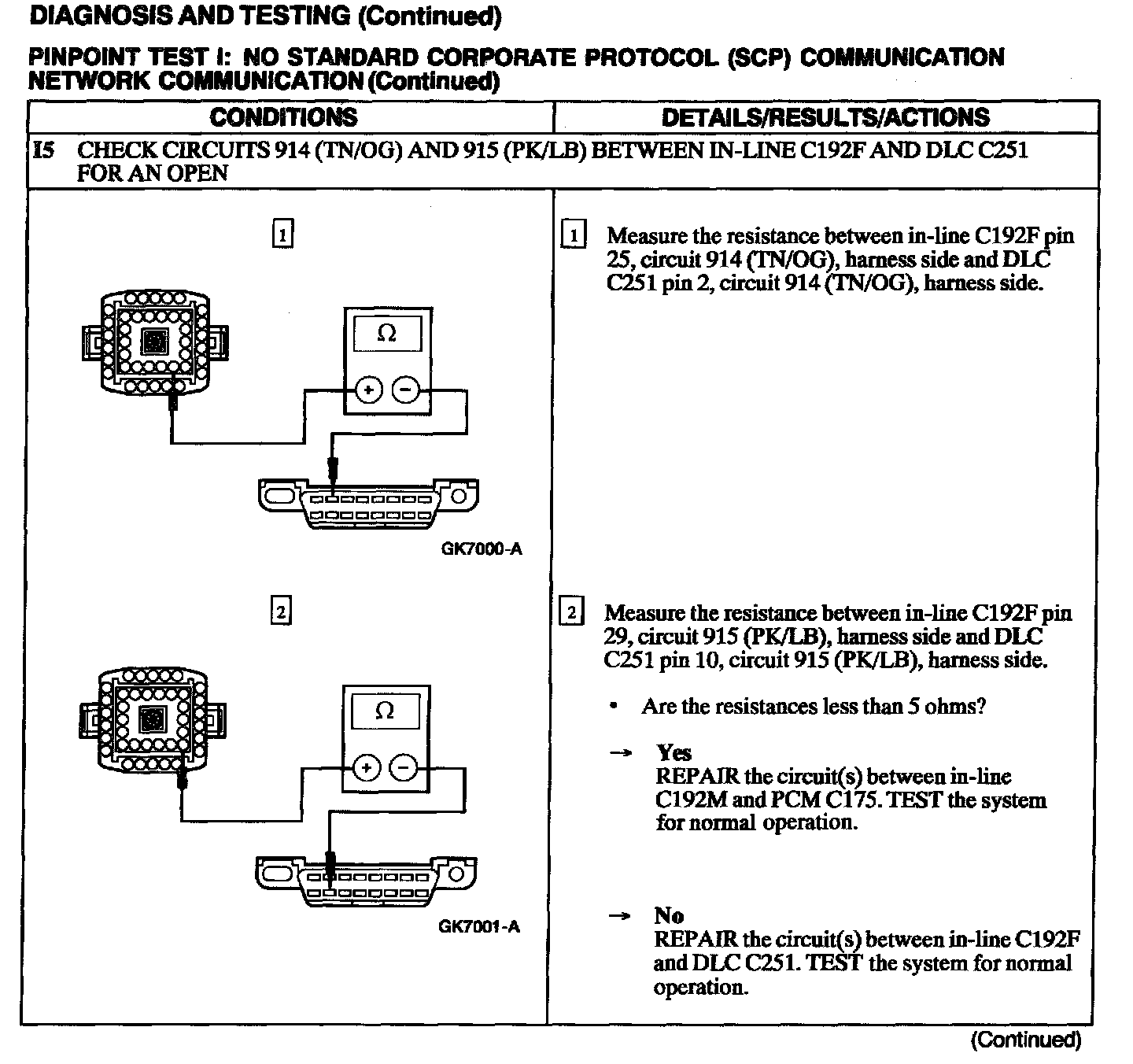

I5:

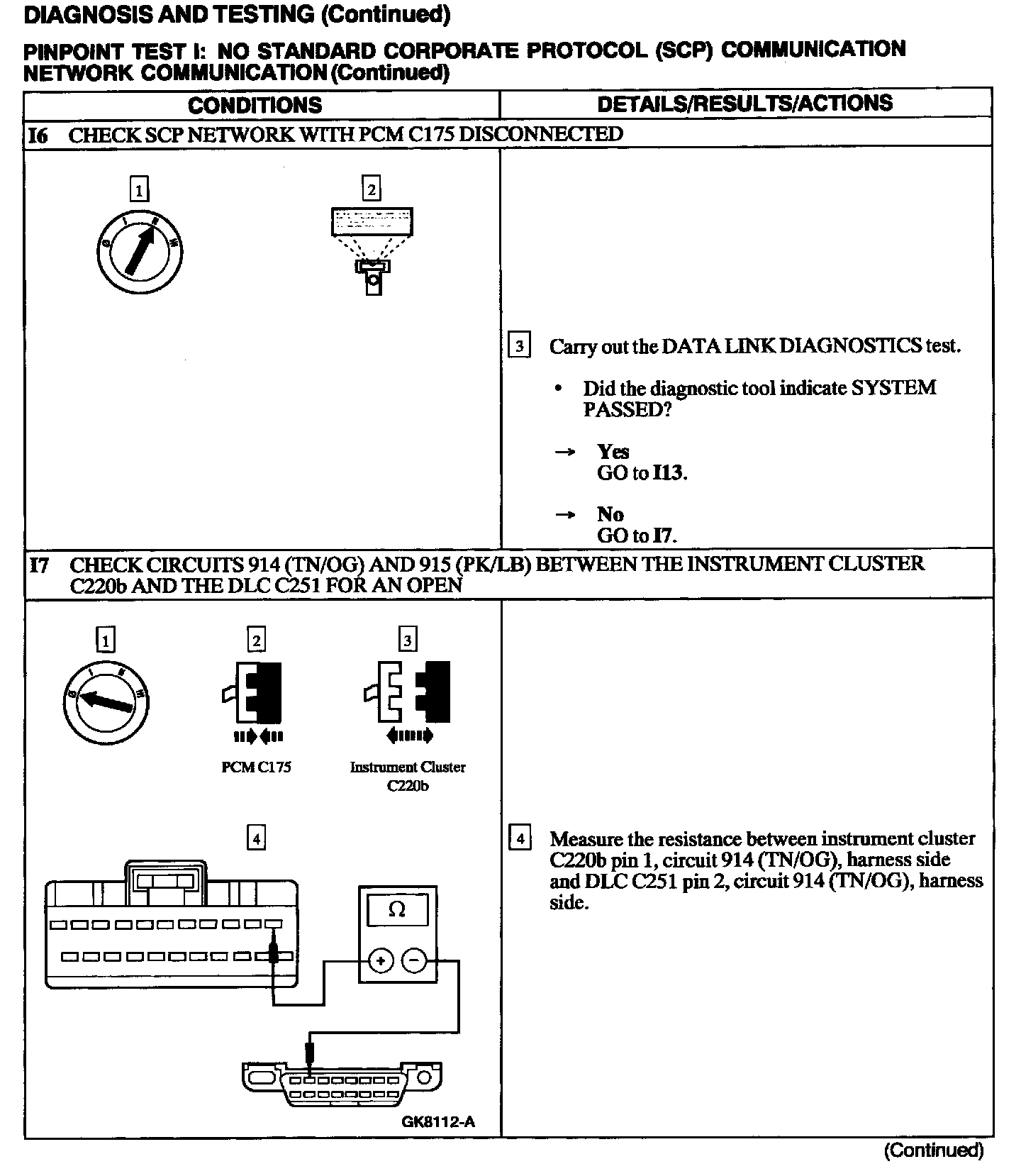

I6 - I7:

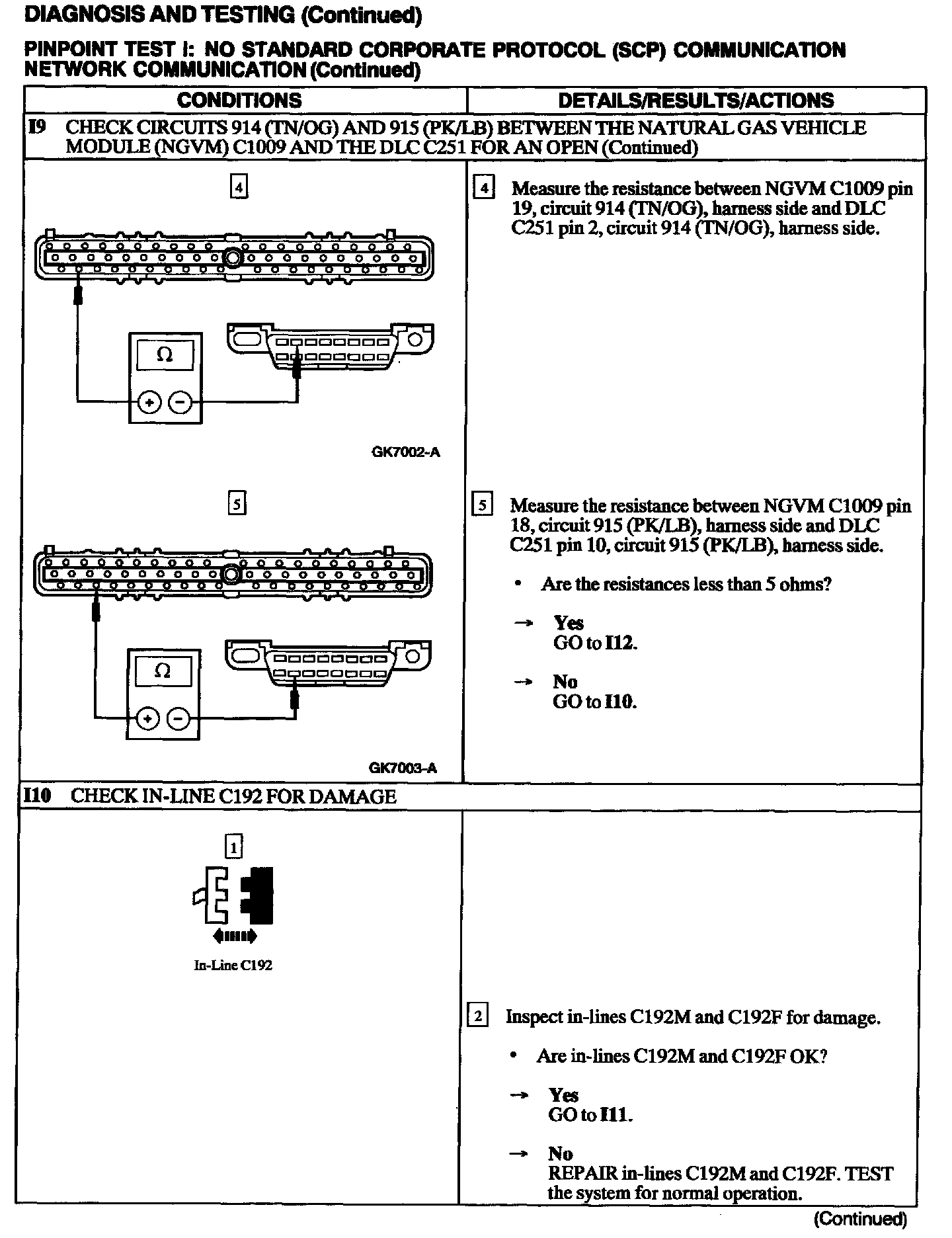

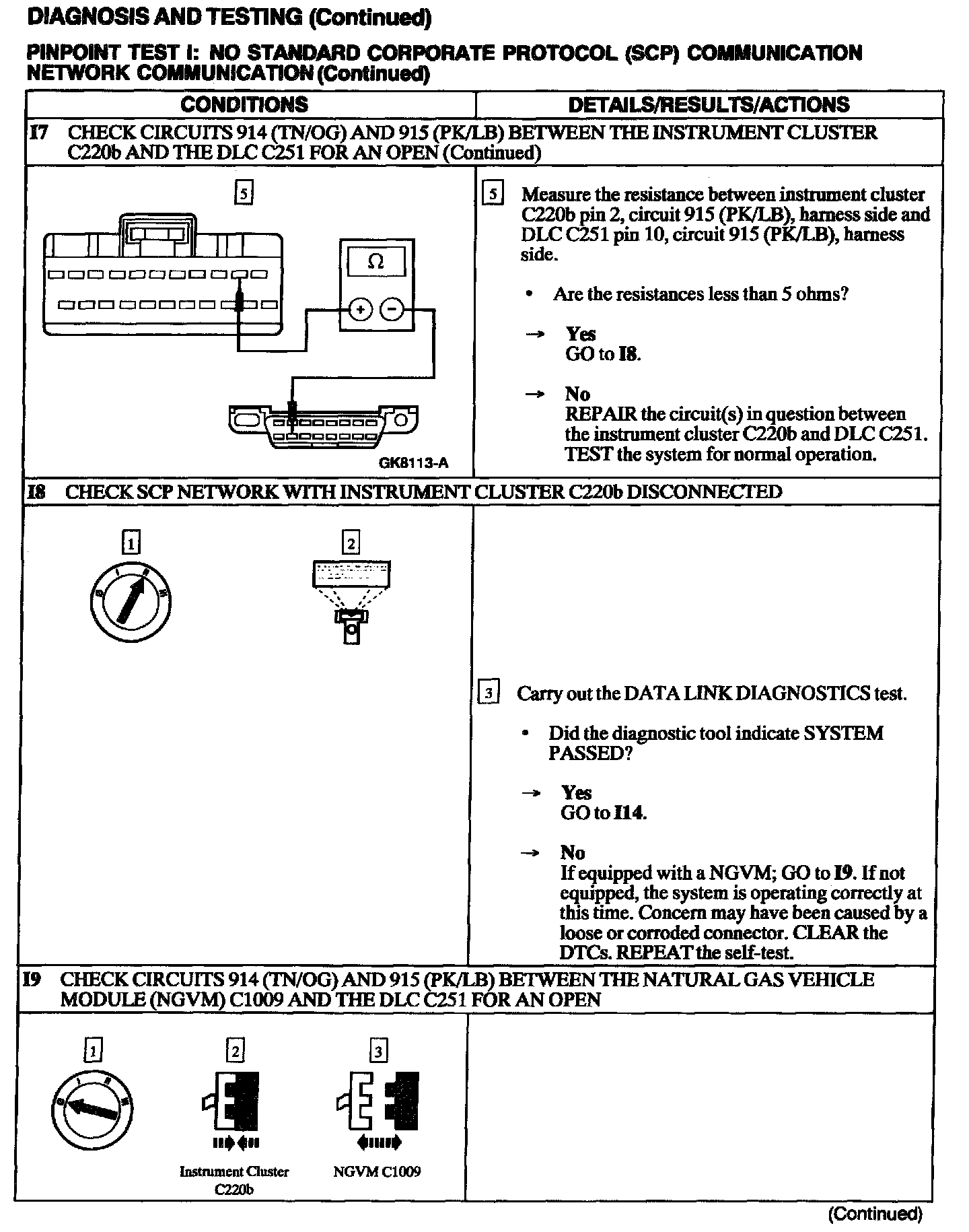

I7 - I9:






I9 - I10:

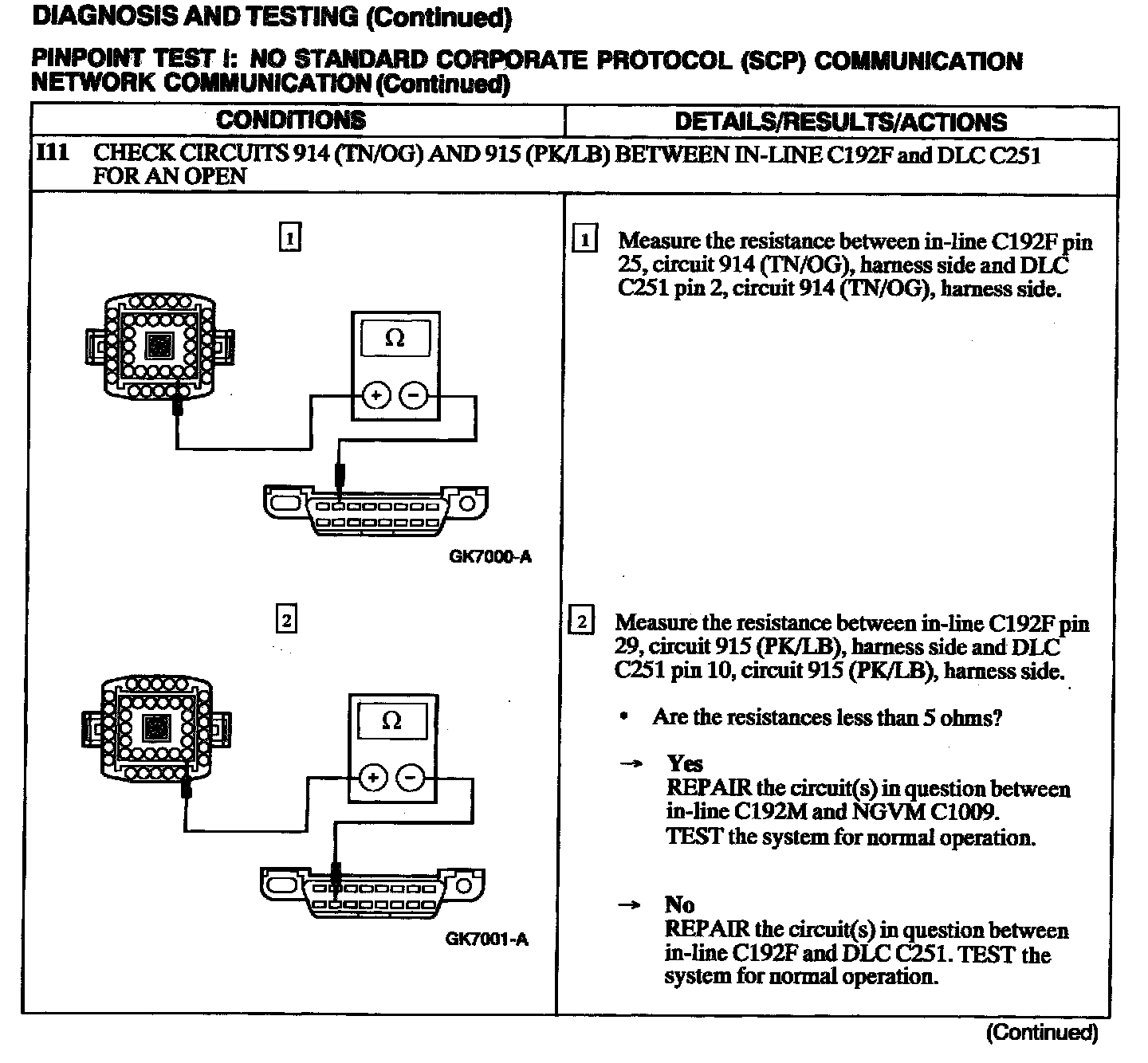

I11:

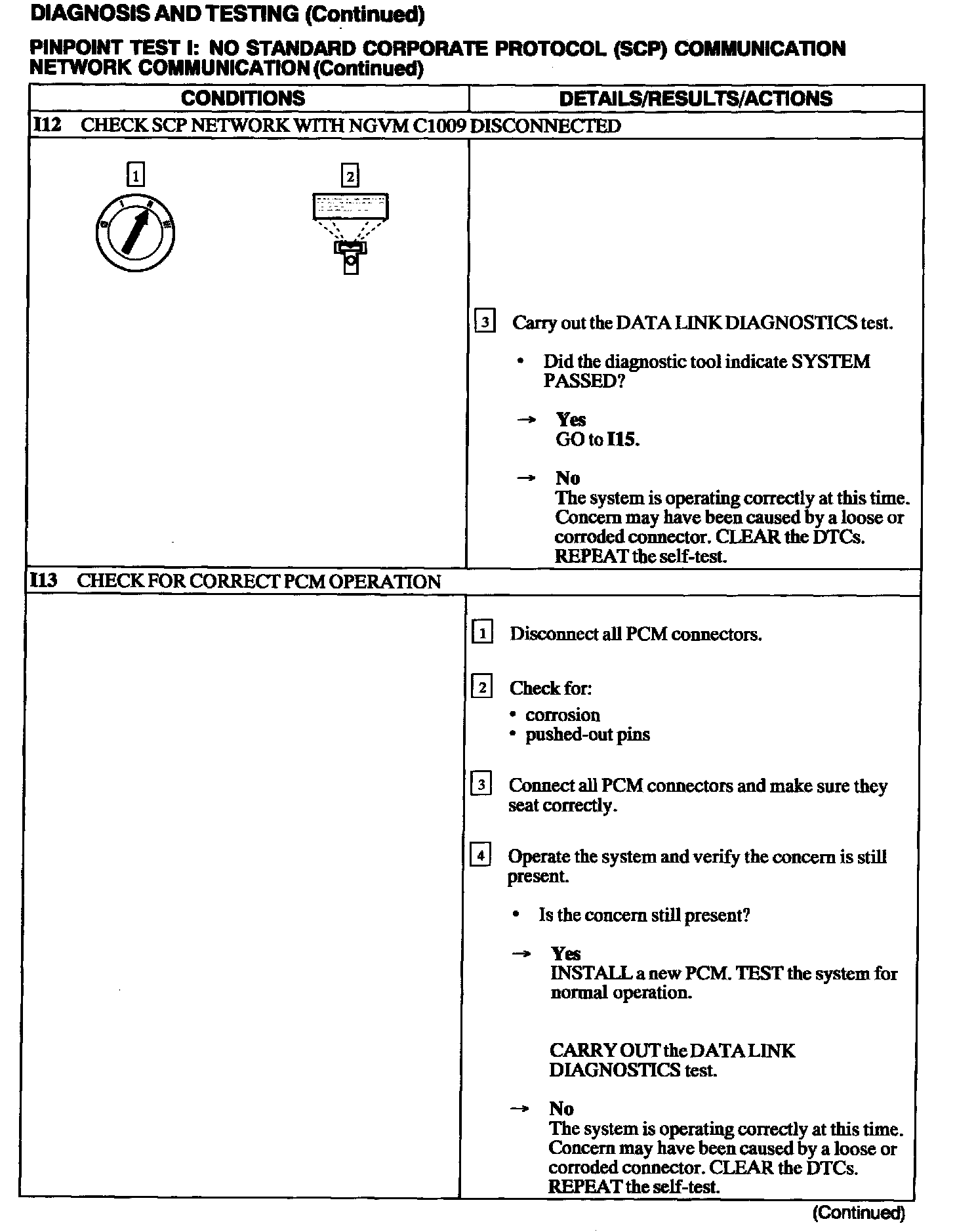

I12 - I13:

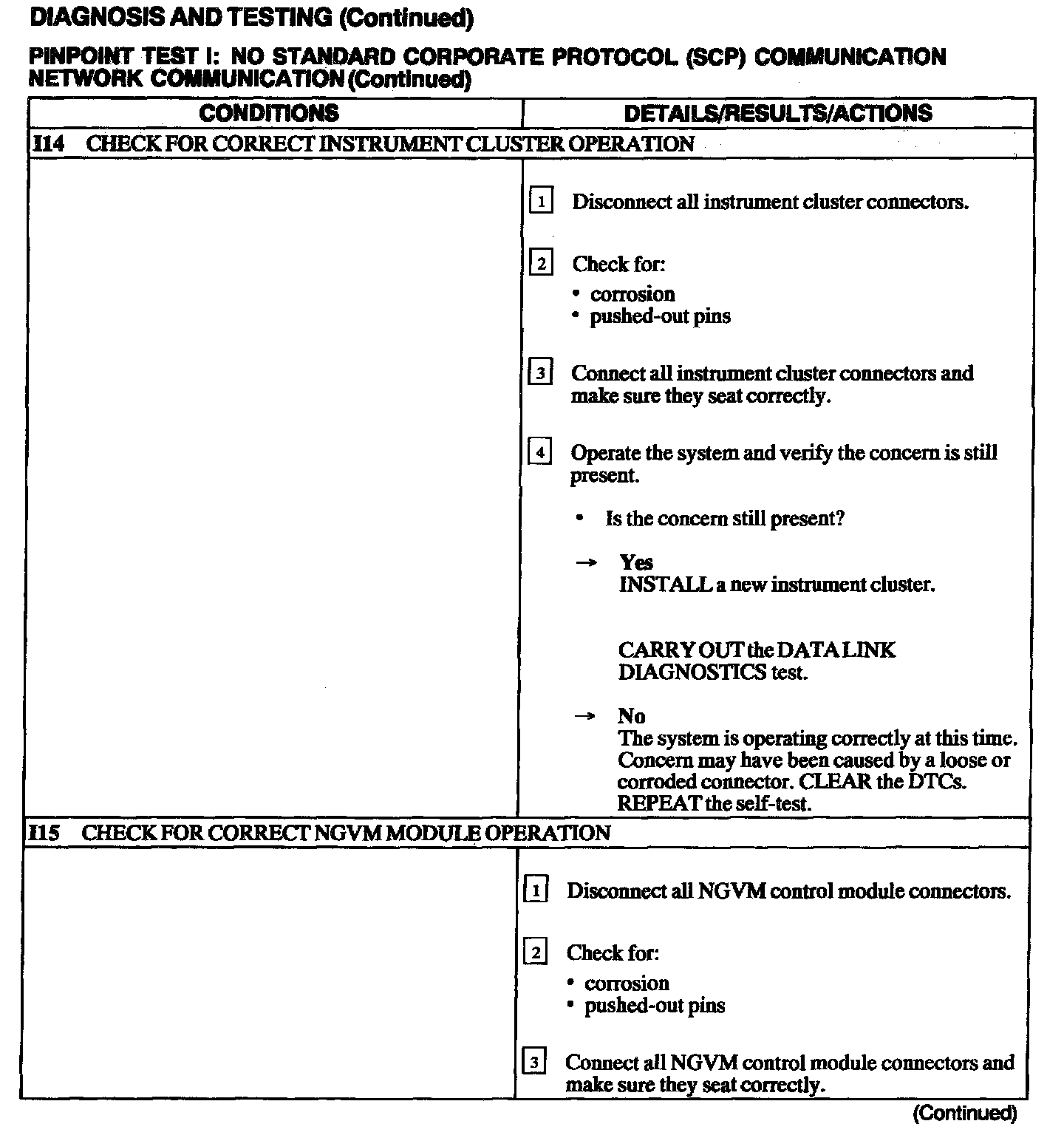

I14 - I15:

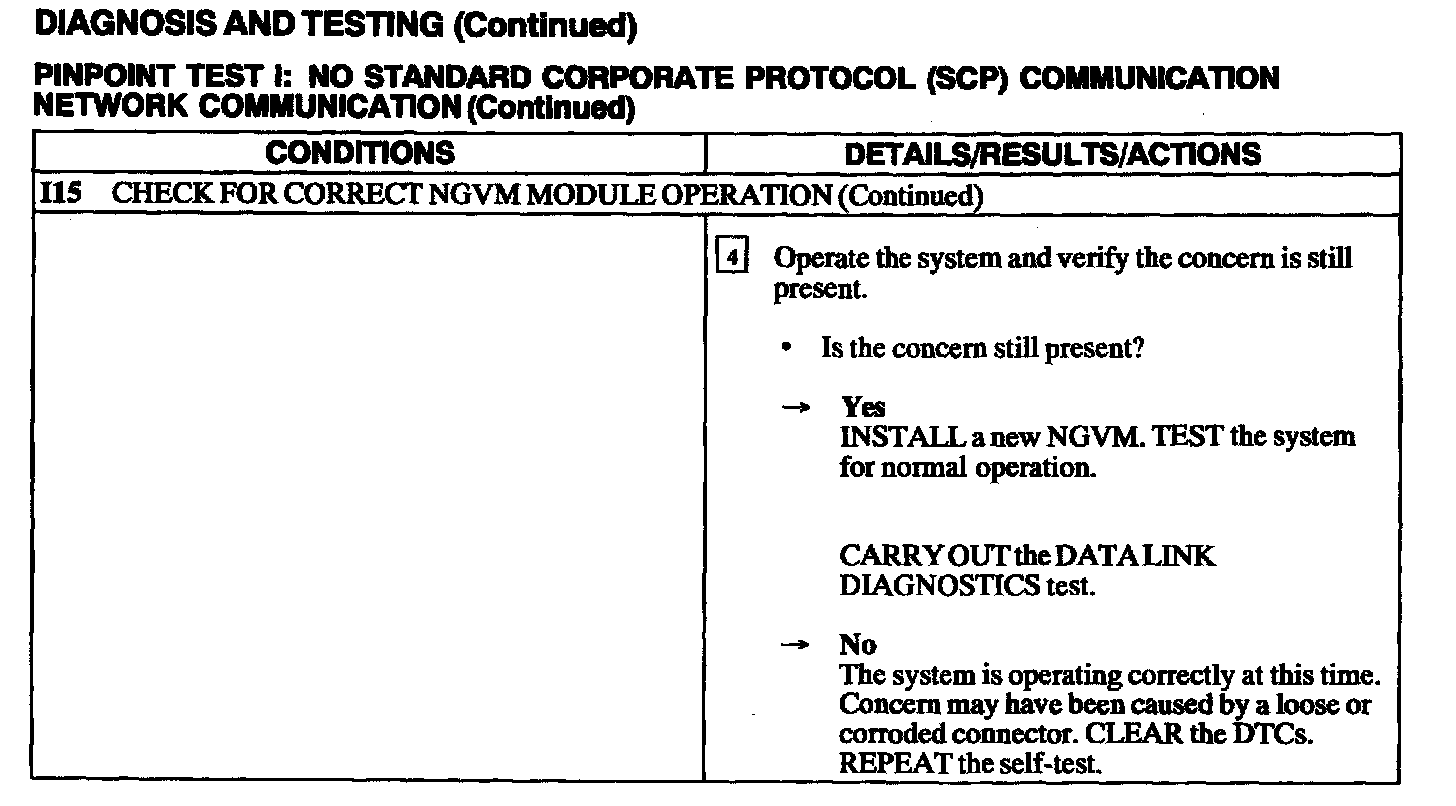

I15:
