Fuel Pump Relay: Locations
View 151-45:

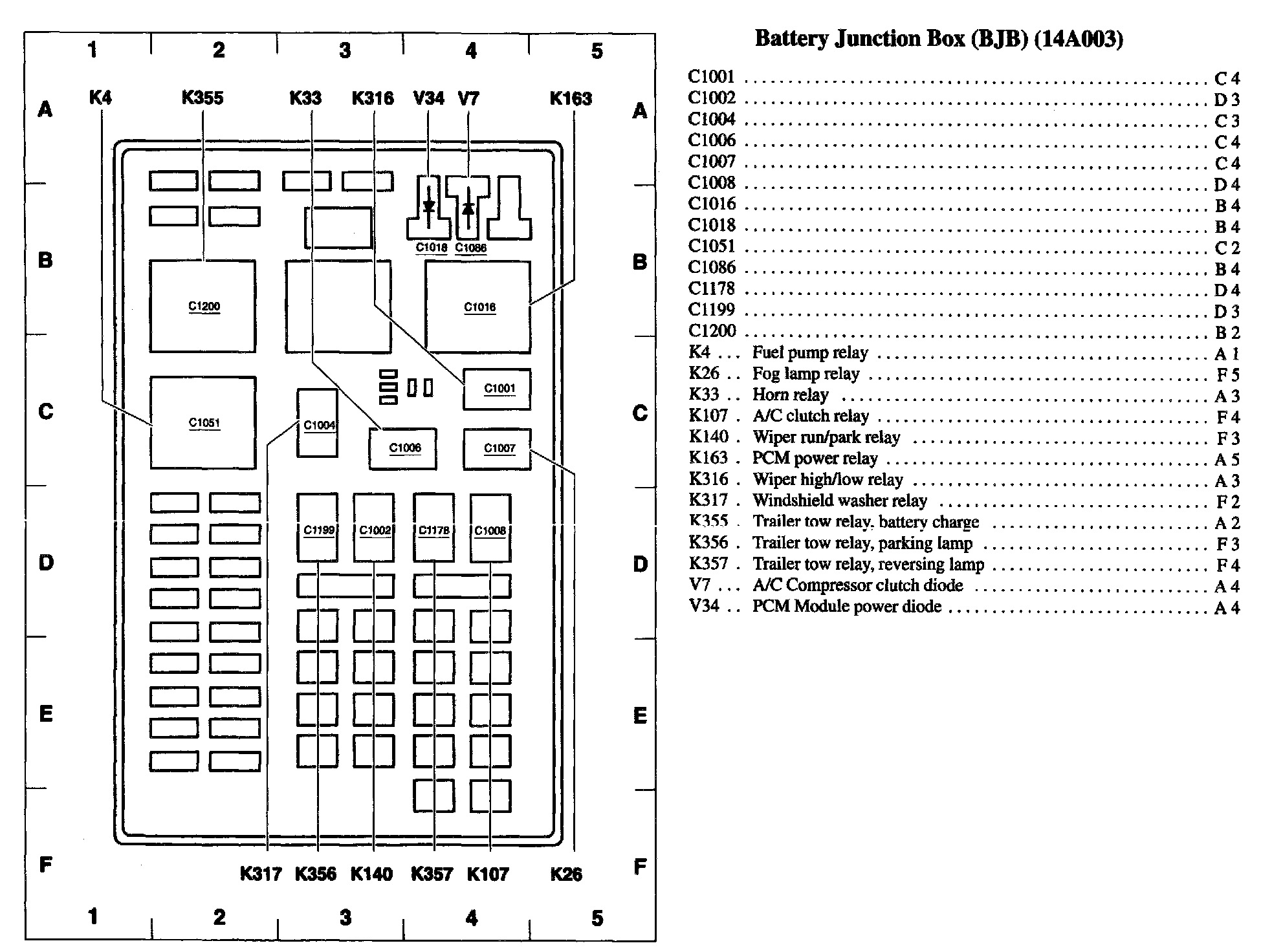

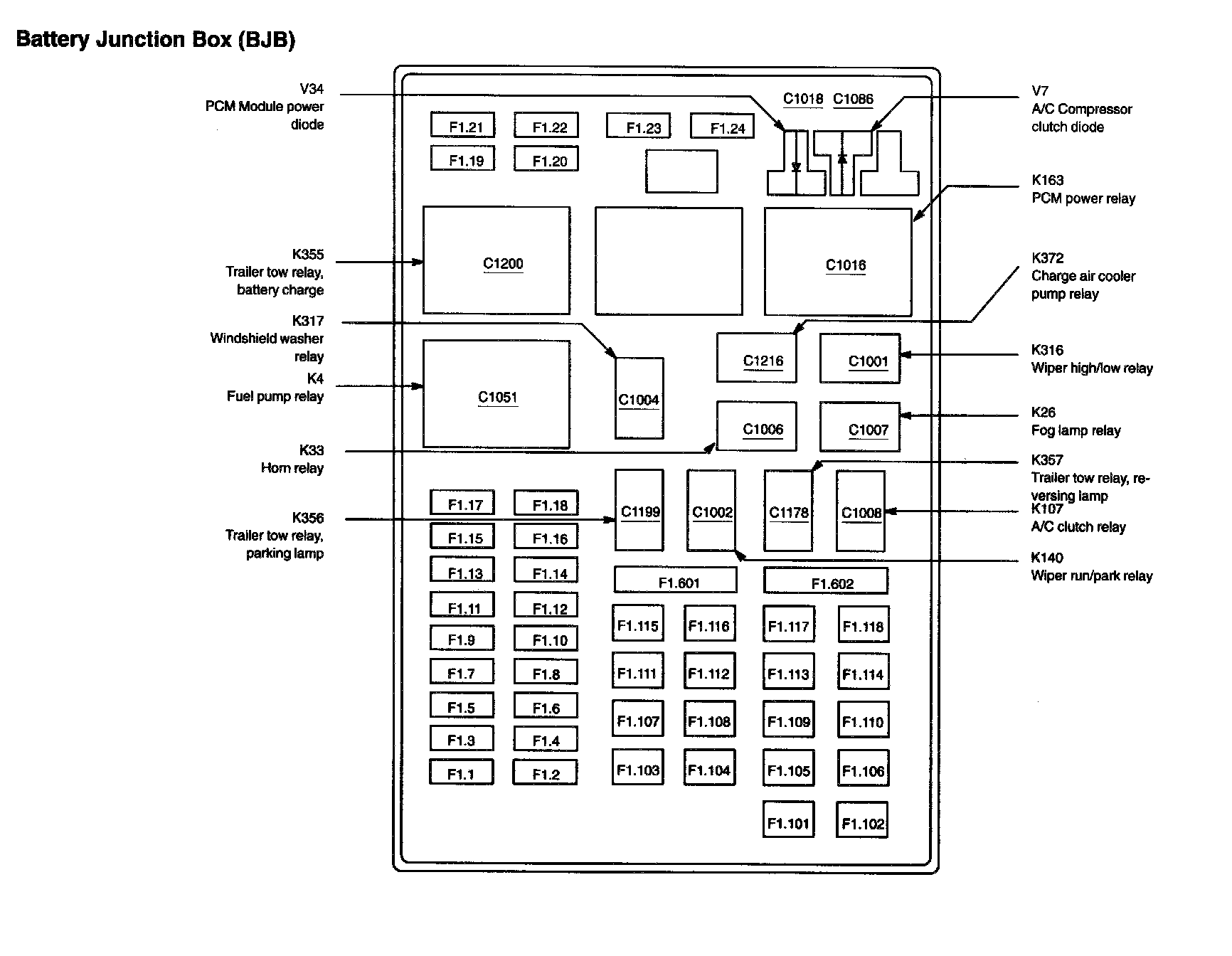

Battery Junction Box:
The fuel pump relay is located inside the Battery Junction Box. The Battery Junction Box is located on the left side of the engine compartment.
The fuel pump relay is located inside the Battery Junction Box. The Battery Junction Box is located on the left side of the engine compartment.
