Ignition Coil: Service and Repair

REMOVAL

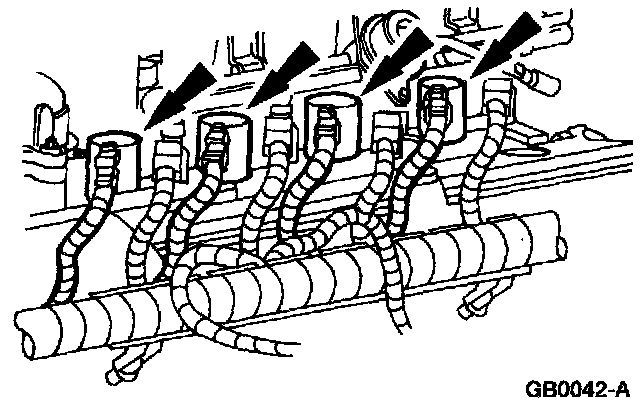

1. Disconnect the Coil On Plug (COP) electrical connectors.
2. Disconnect the eight fuel injector electrical connectors.







3. Remove the bolts and ignition coils.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Apply brake caliper grease to the inside of the coil boots.
