Speed Control Cable - 2.0L Duratec ST

REMOVAL
1. Detach the speed control cable from the retaining clip.

2. Detach the speed control actuator cable cover.

3. Disconnect the speed control cable from the speed control actuator pulley.

4. Remove the speed control cable.

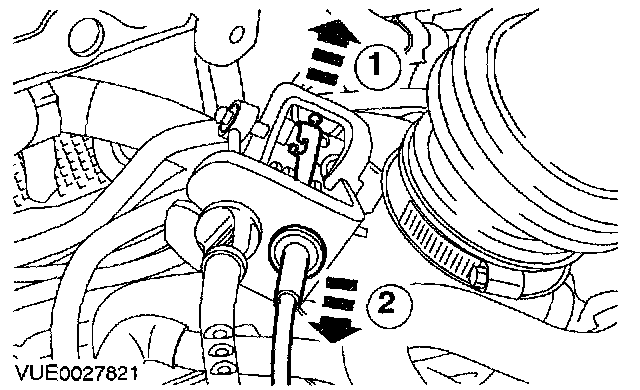

1. Disconnect the inner cable from the throttle body.
2. Detach the speed control cable from the throttle body.

INSTALLATION
1. To install, reverse the removal procedure.
