Duratec

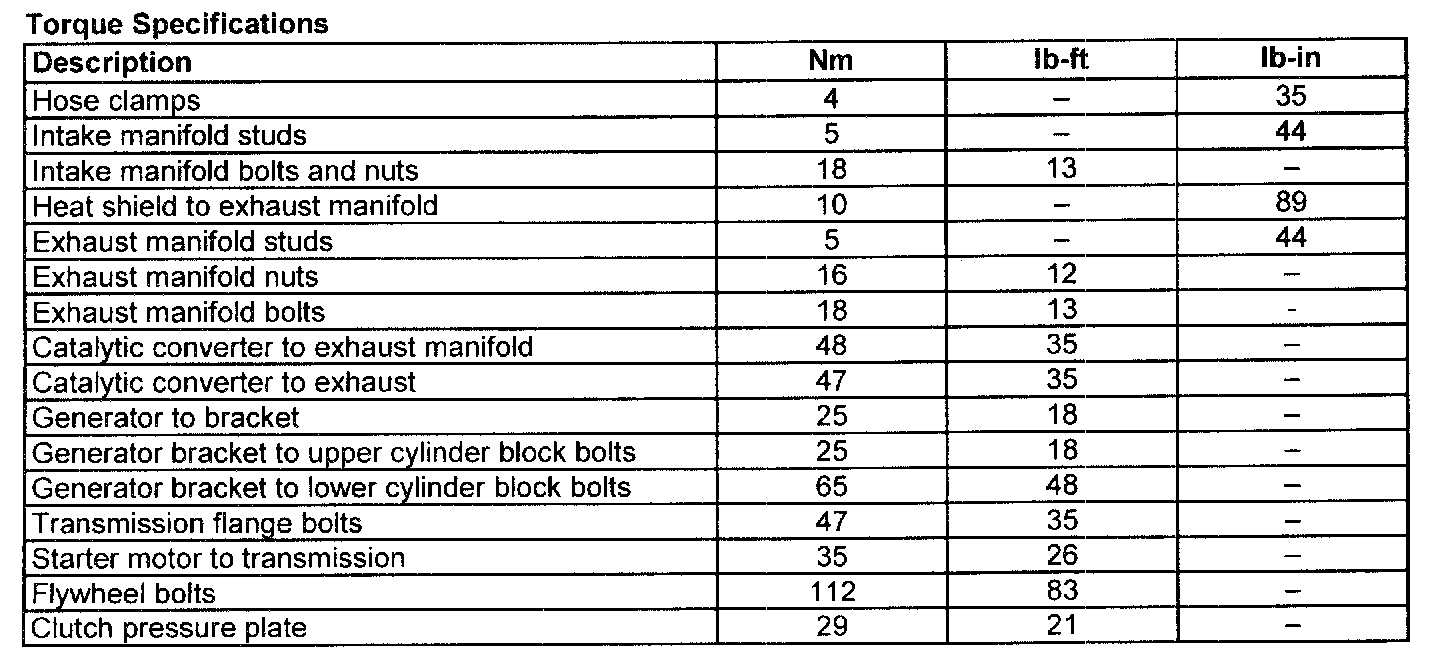

Torque Specifications - 1 0f 2:

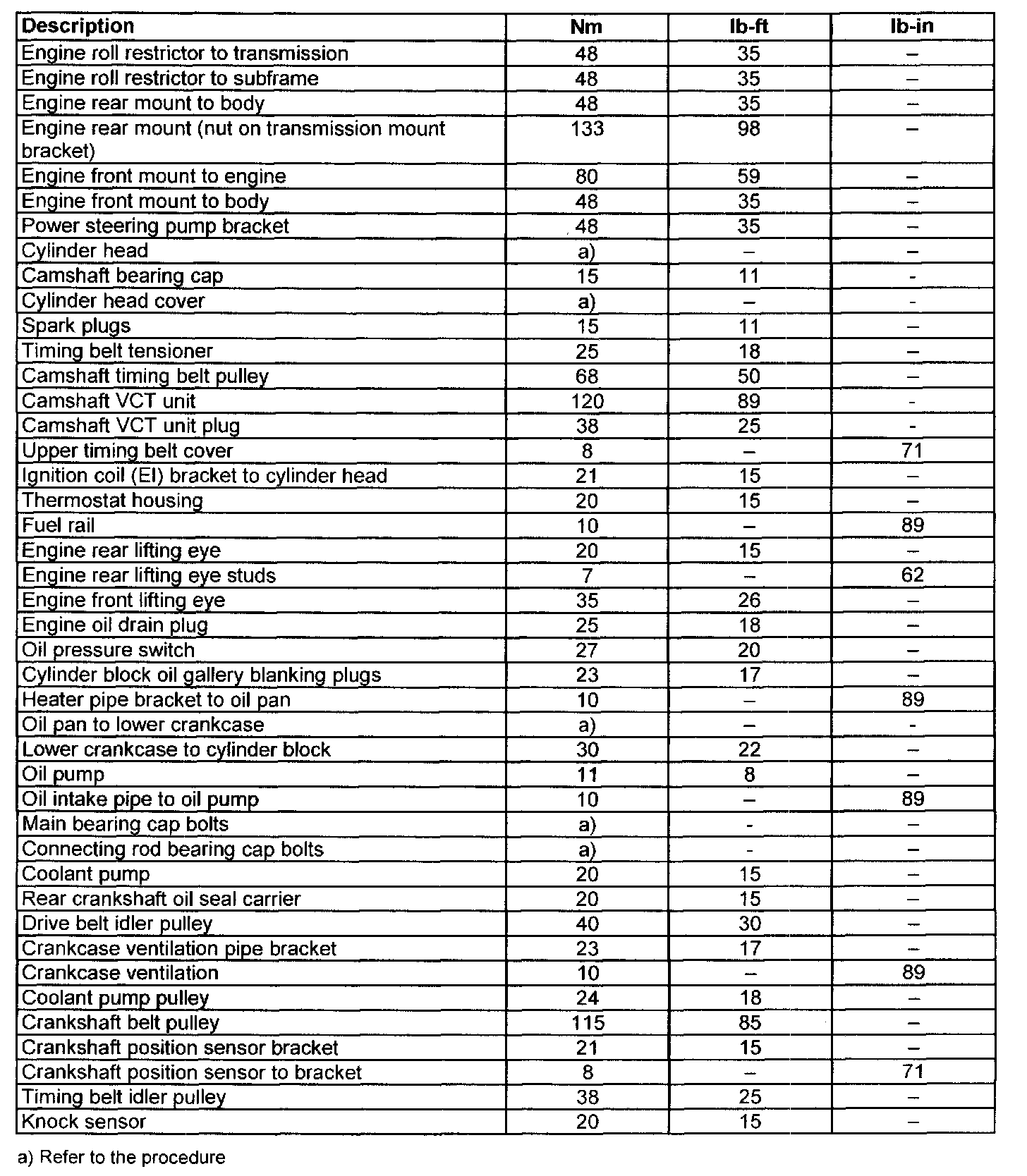

Torque Specifications 2 0f 2:

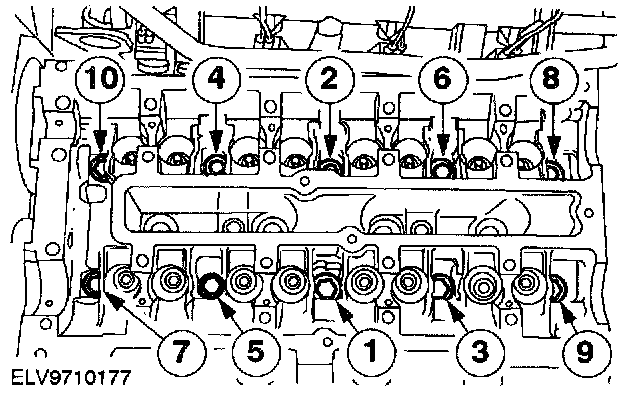

Cylinder Head Torque Sequence:
Tighten the cylinder head bolts in three stages in the sequence indicated.
^ Stage 1: 20 Nm
^ Stage 2: 40 Nm
^ Stage 3: 90 degrees.

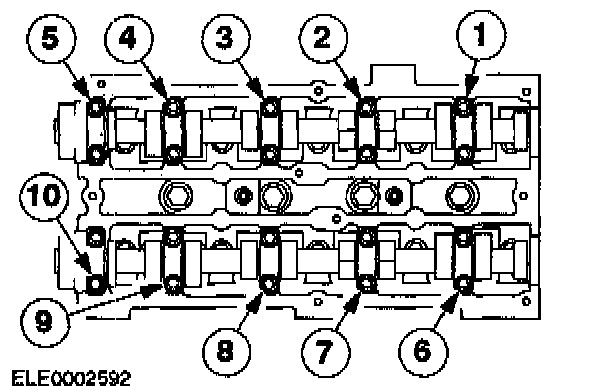

Note: Screw in the camshaft bearing cap bolts evenly, in the sequence shown, a half turn at a time and tighten them in two stages.
Tighten the bolts of the camshaft bearing caps.
^ Stage 1: 10 Nm
^ Stage 2: 19 Nm
