Test E: PATS Transceiver Signal Is Not Received (B1681)

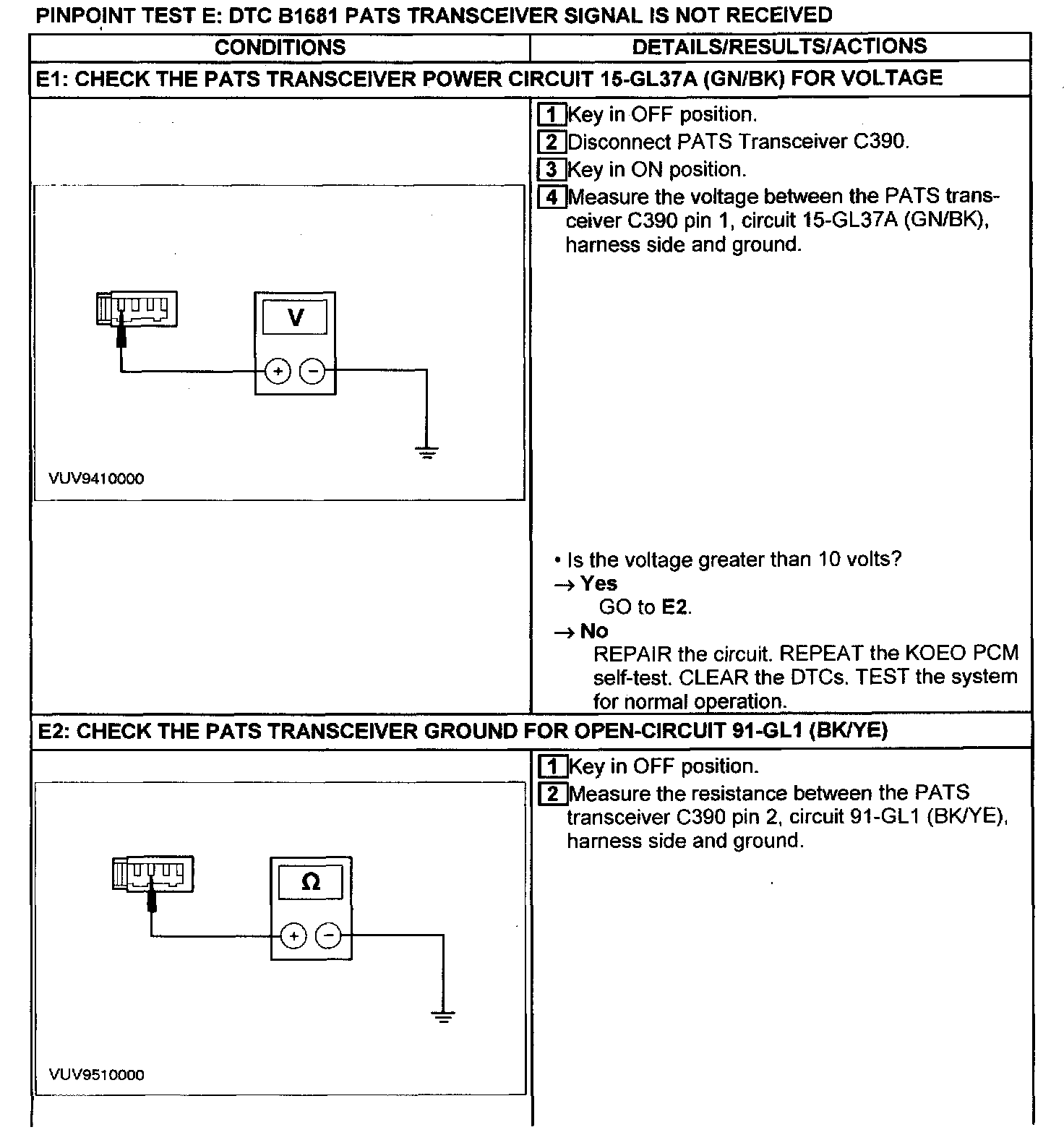

E1 - E2:

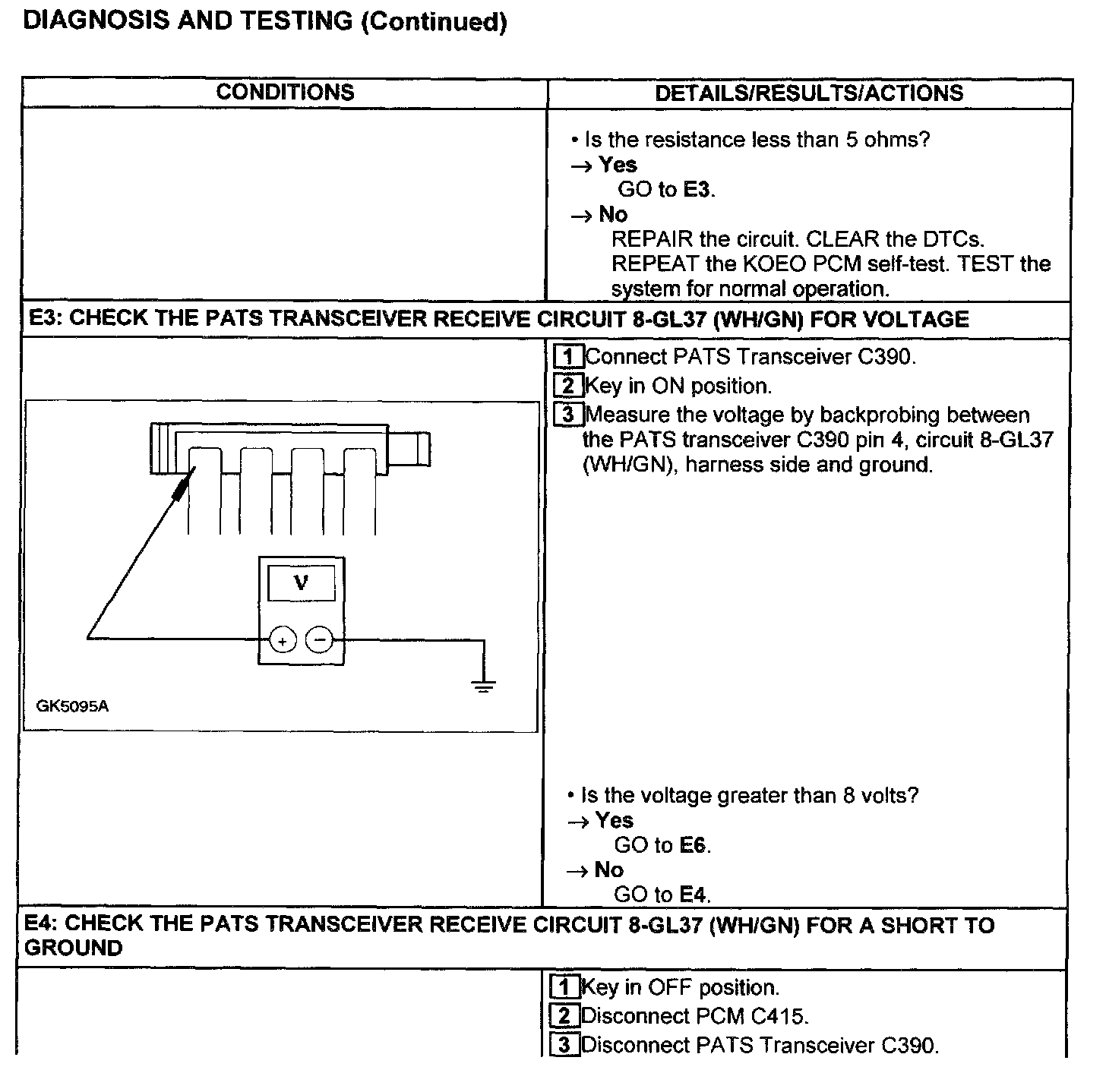

E2 - E4:

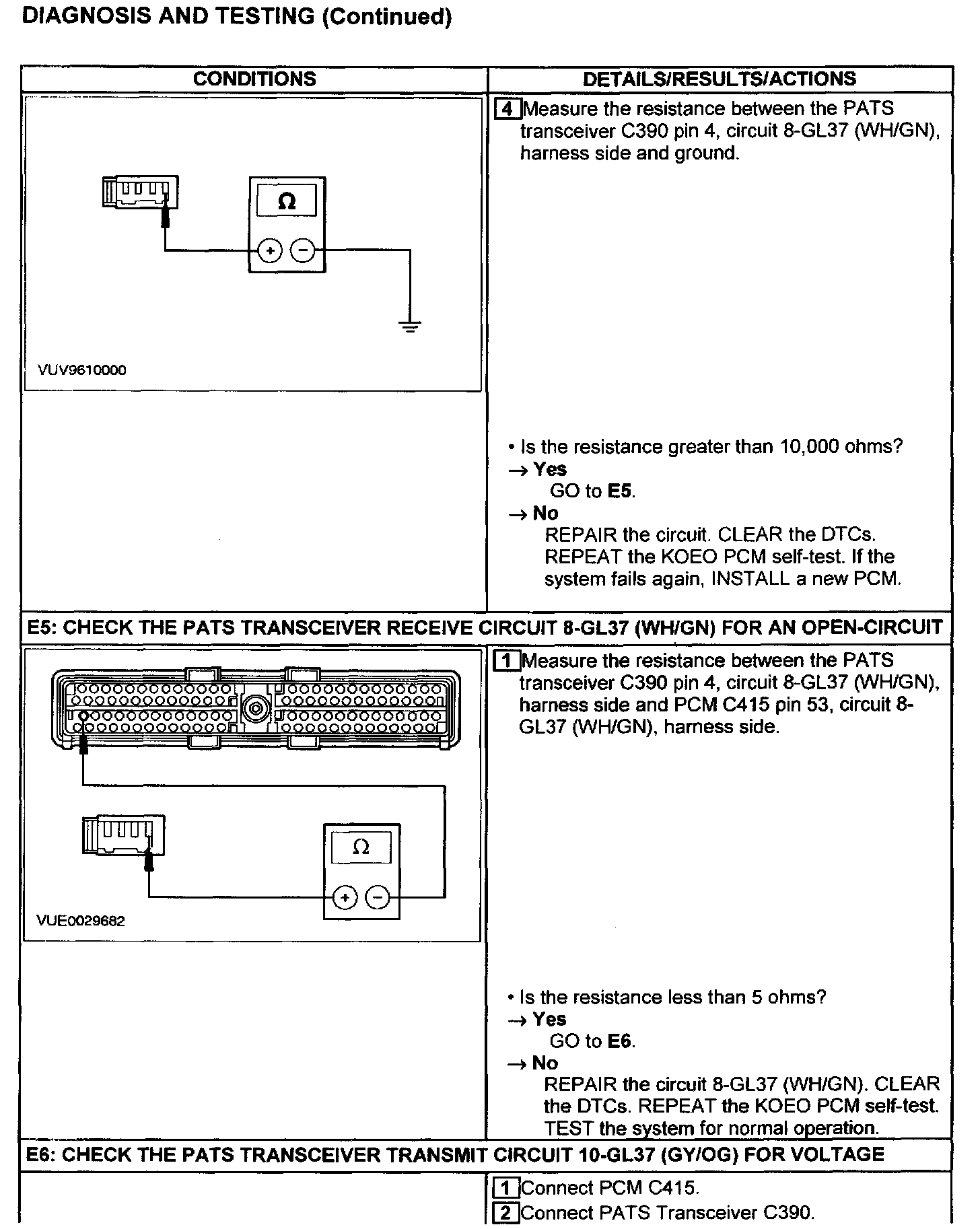

E4 - E6:

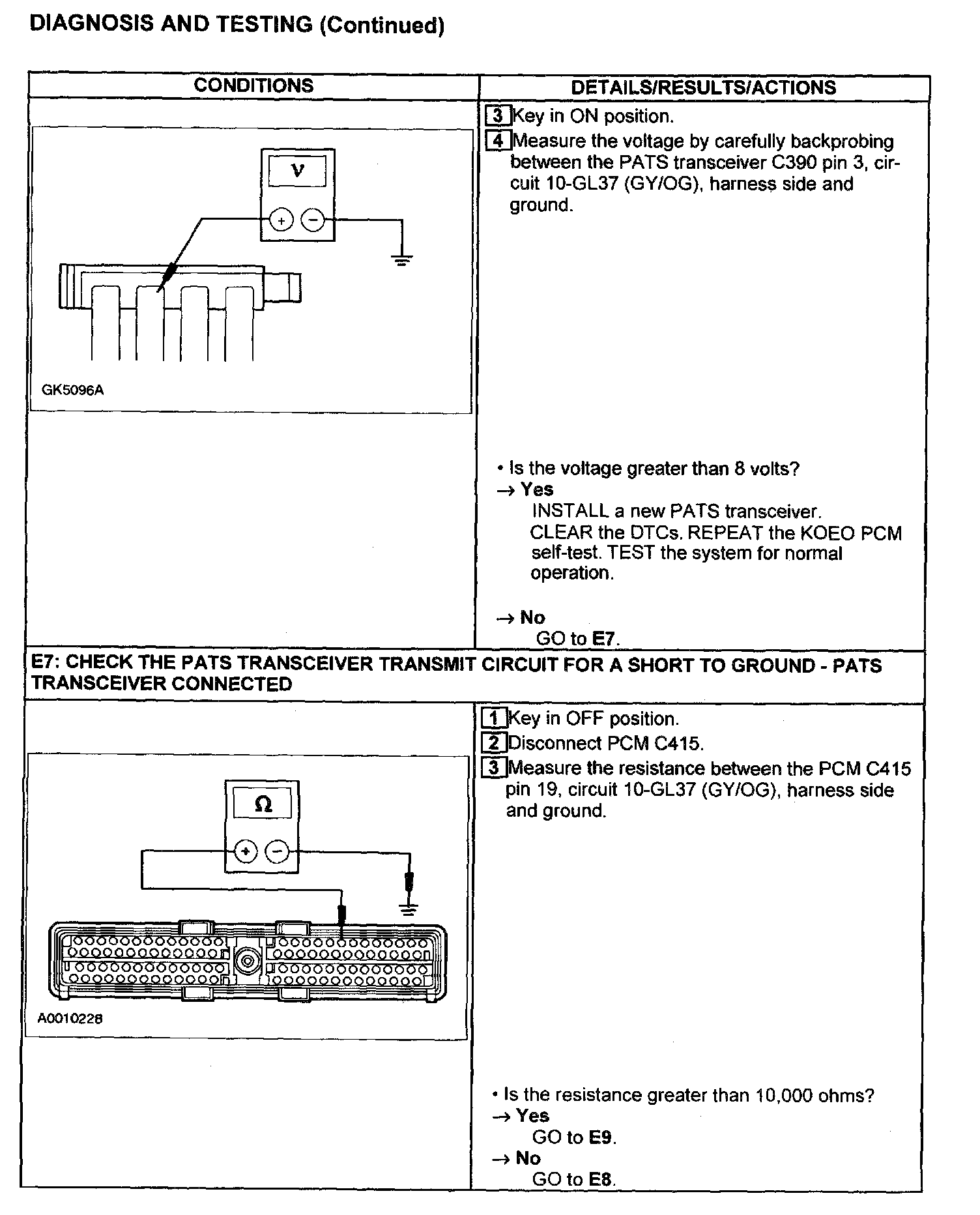

E6 - E7:

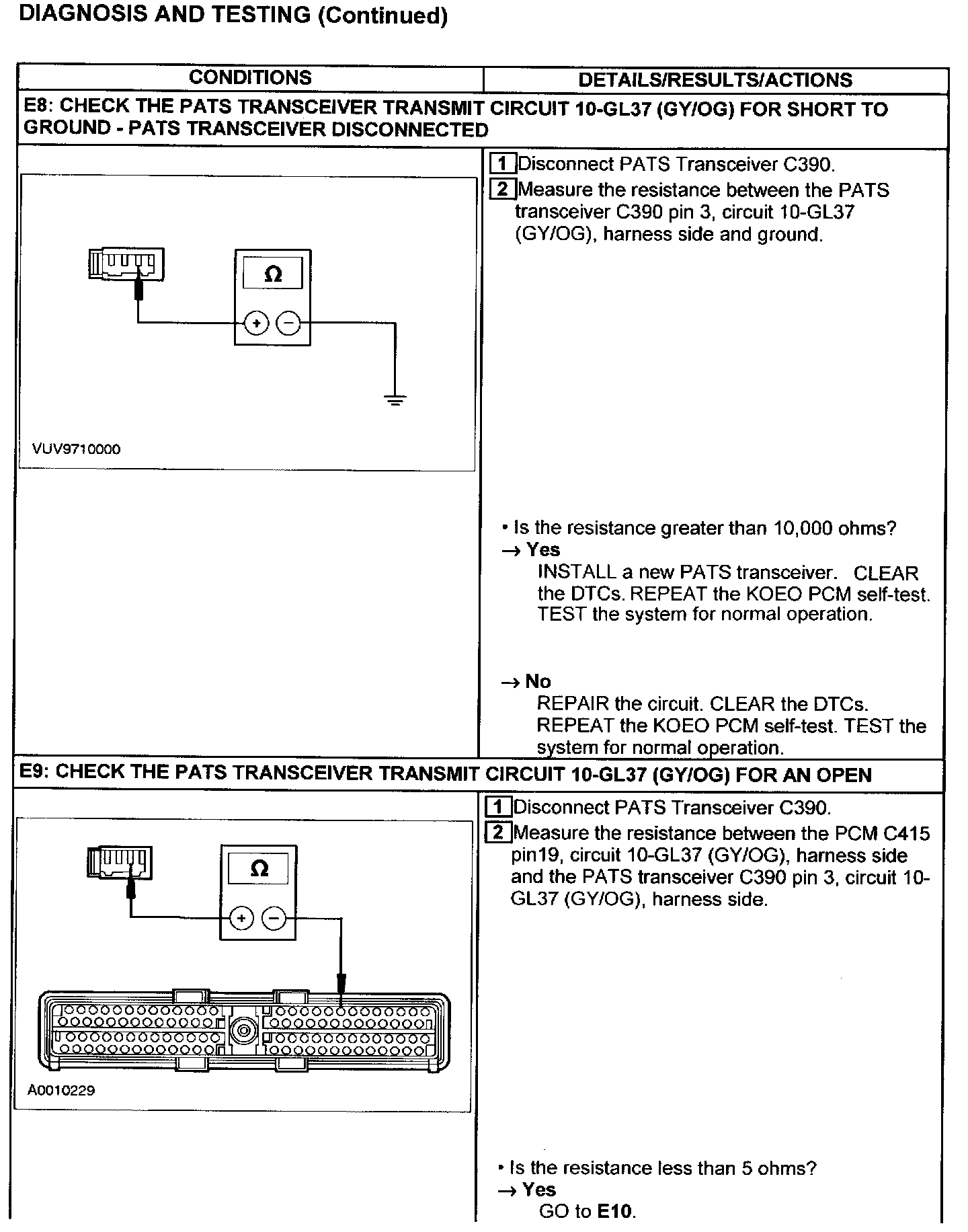

E8 - E9:

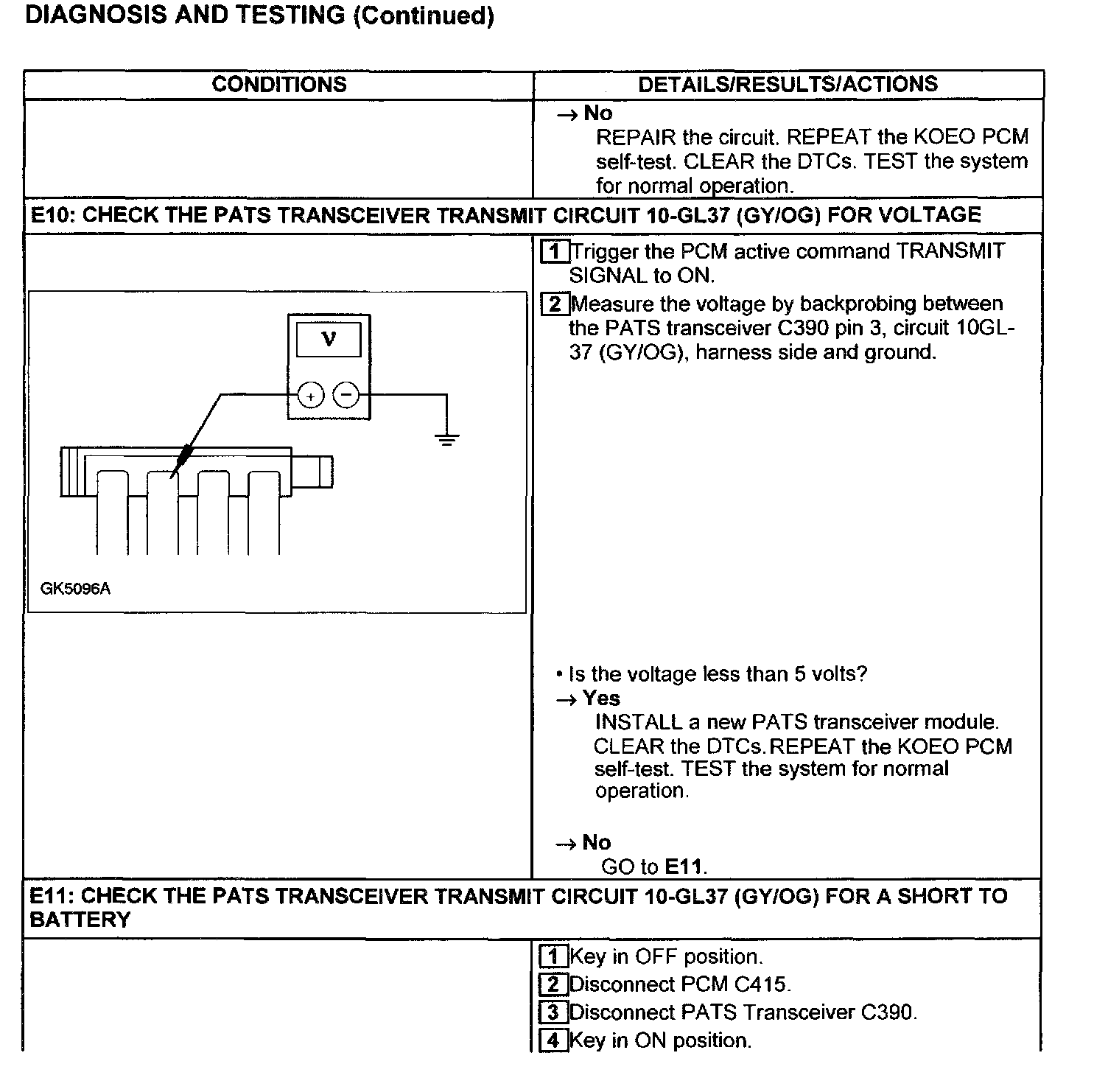

E9 - E11:

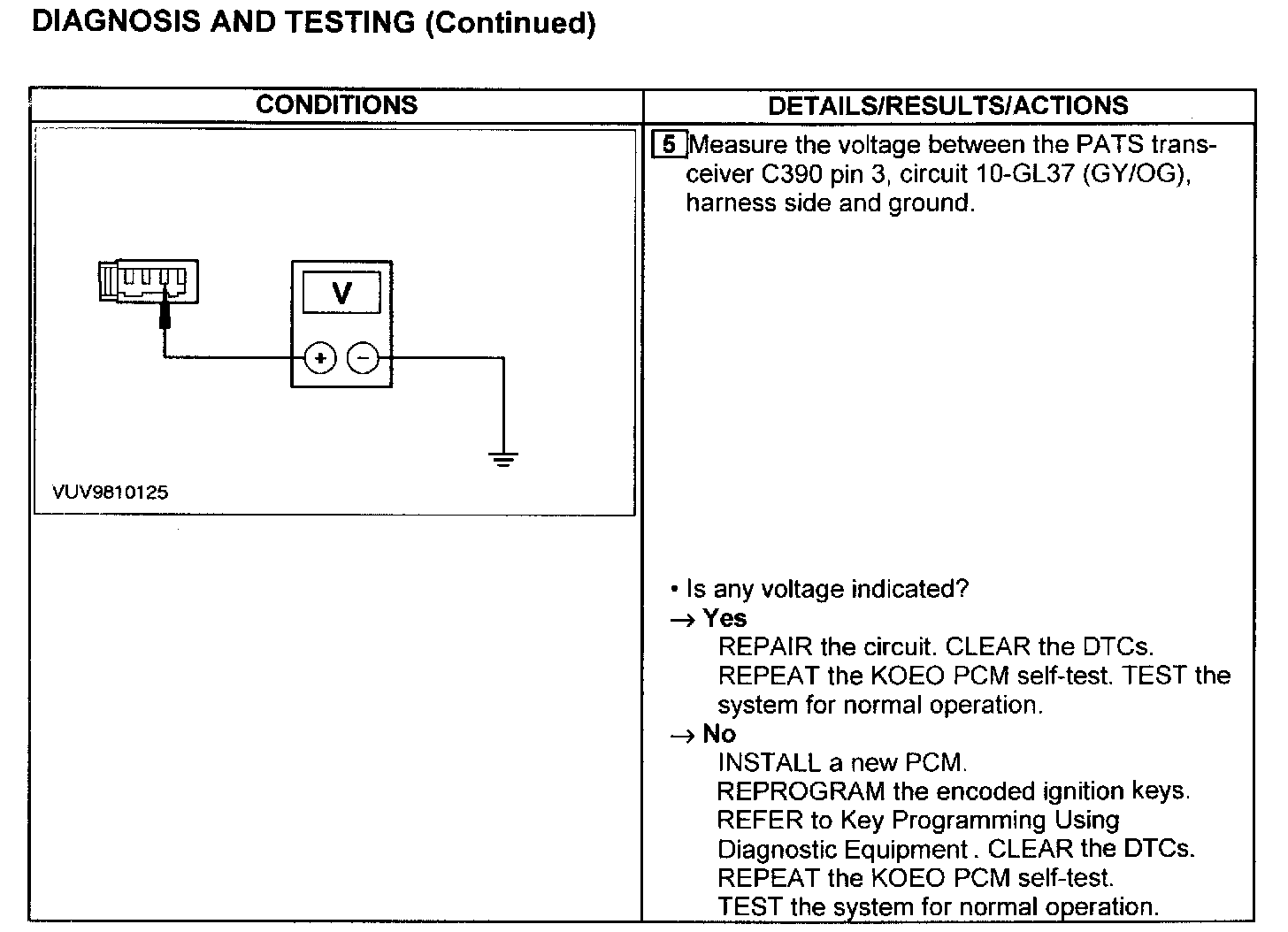

E11:
