Anti-Lock Brakes with Stability Assist

PINPOINT TEST E: DTC C1145 (RF), DTC C1156 (LF), DTC C1165 (RR), DTC C1175 (LR) - ANTILOCK BRAKE SENSOR INPUT CIRCUIT FAILURE

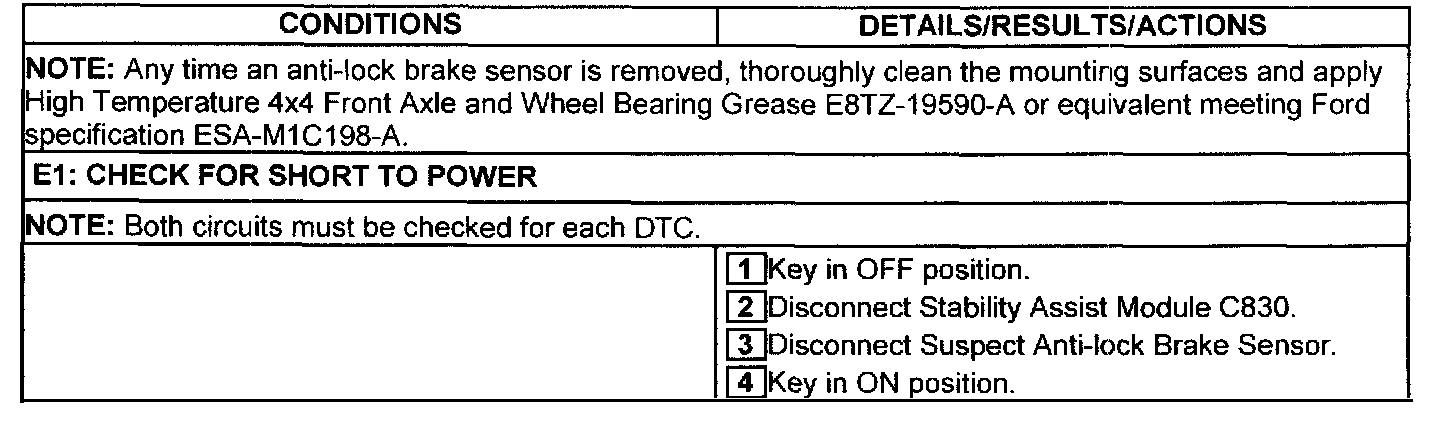

Test E1:

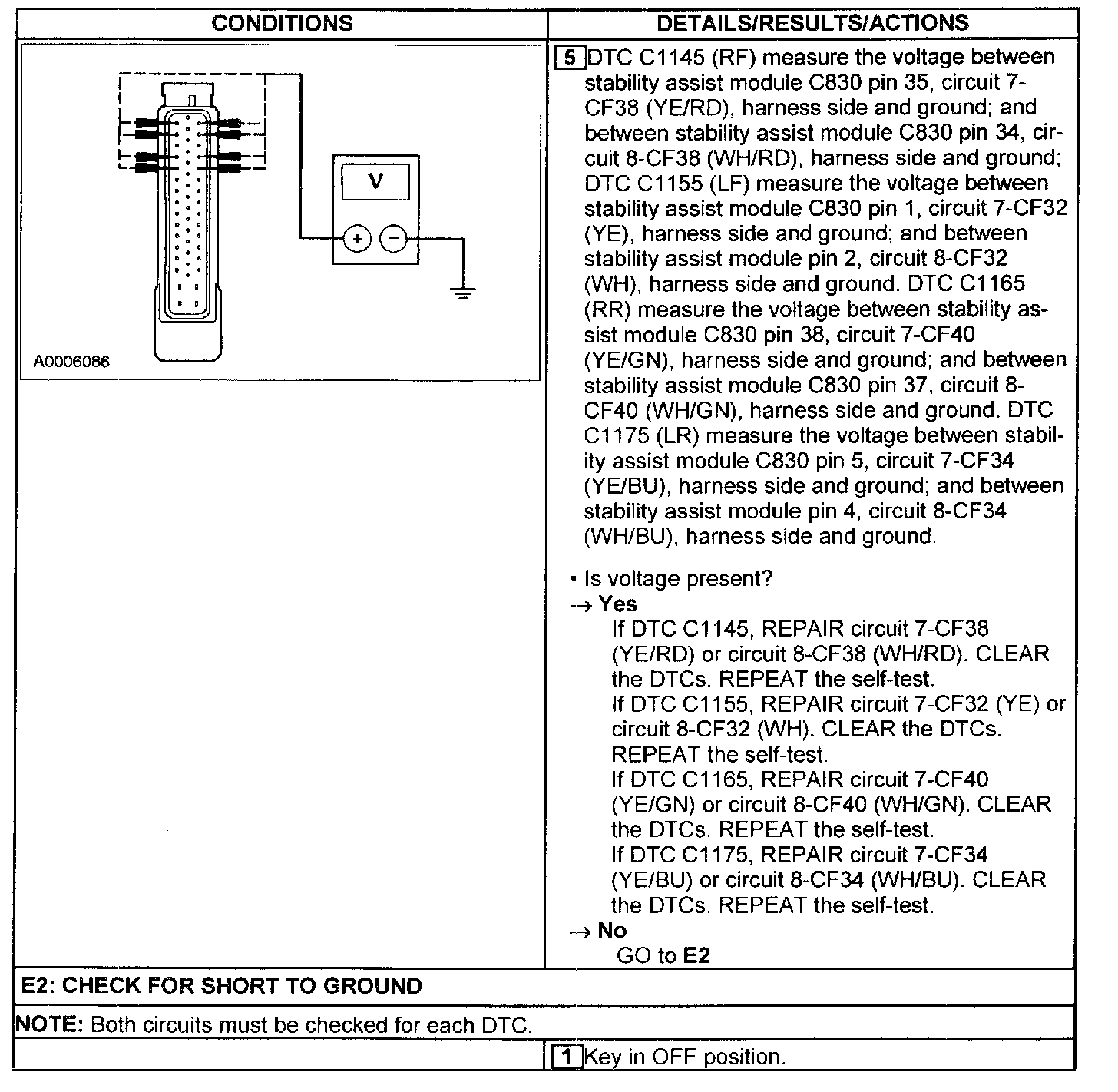

Test E1-E2:

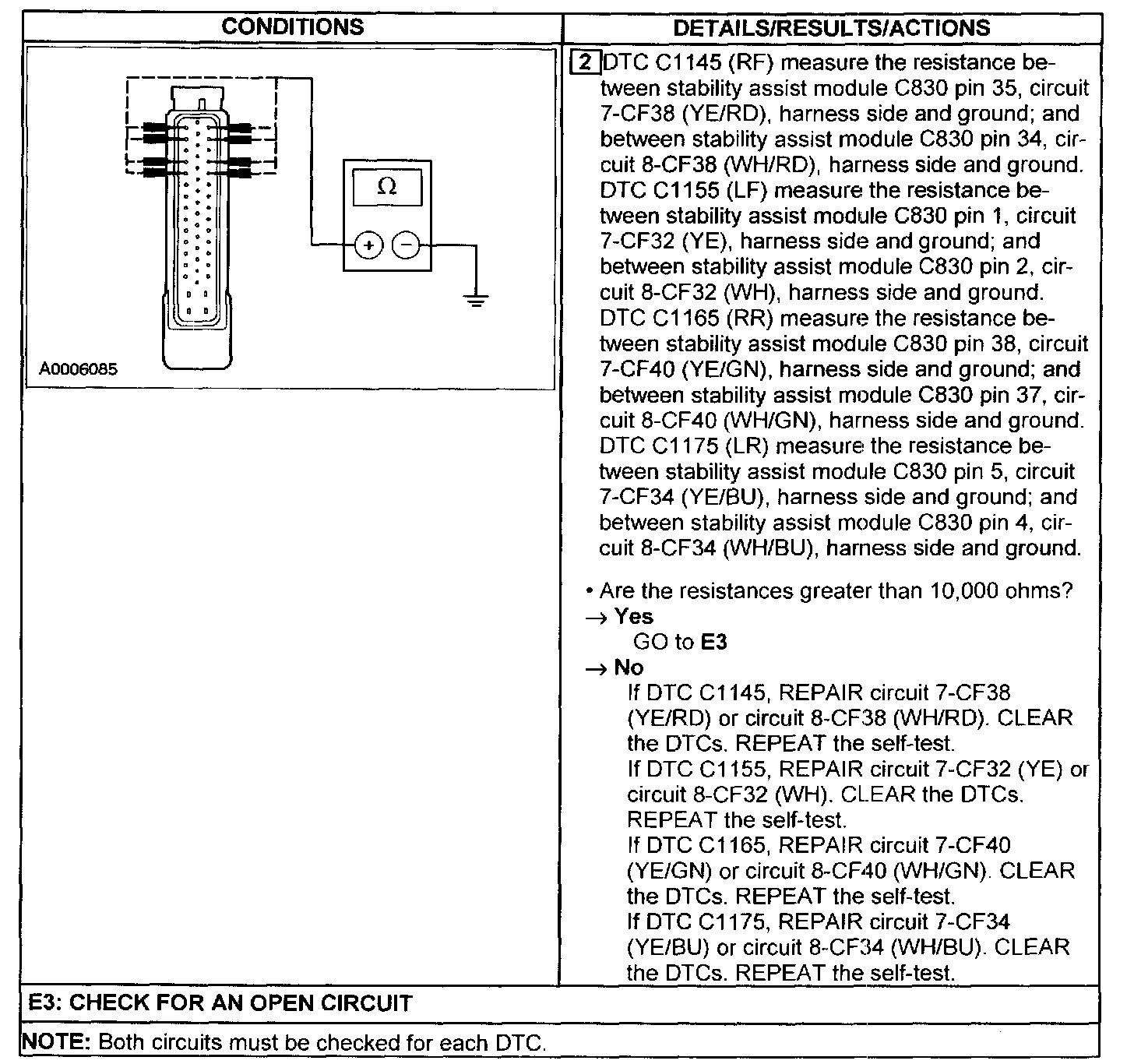

Test E2-E3:

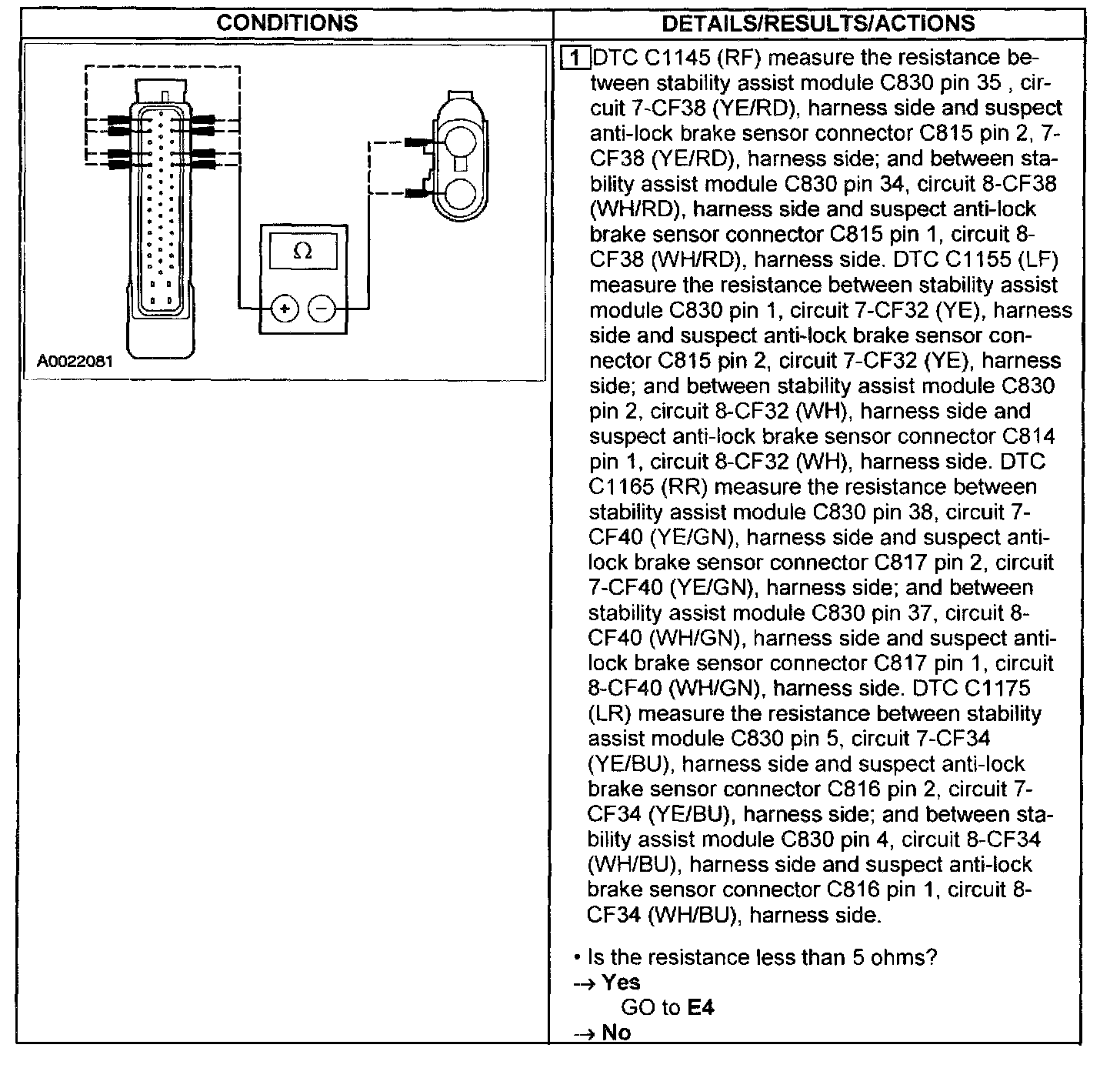

Test E3 Continued:

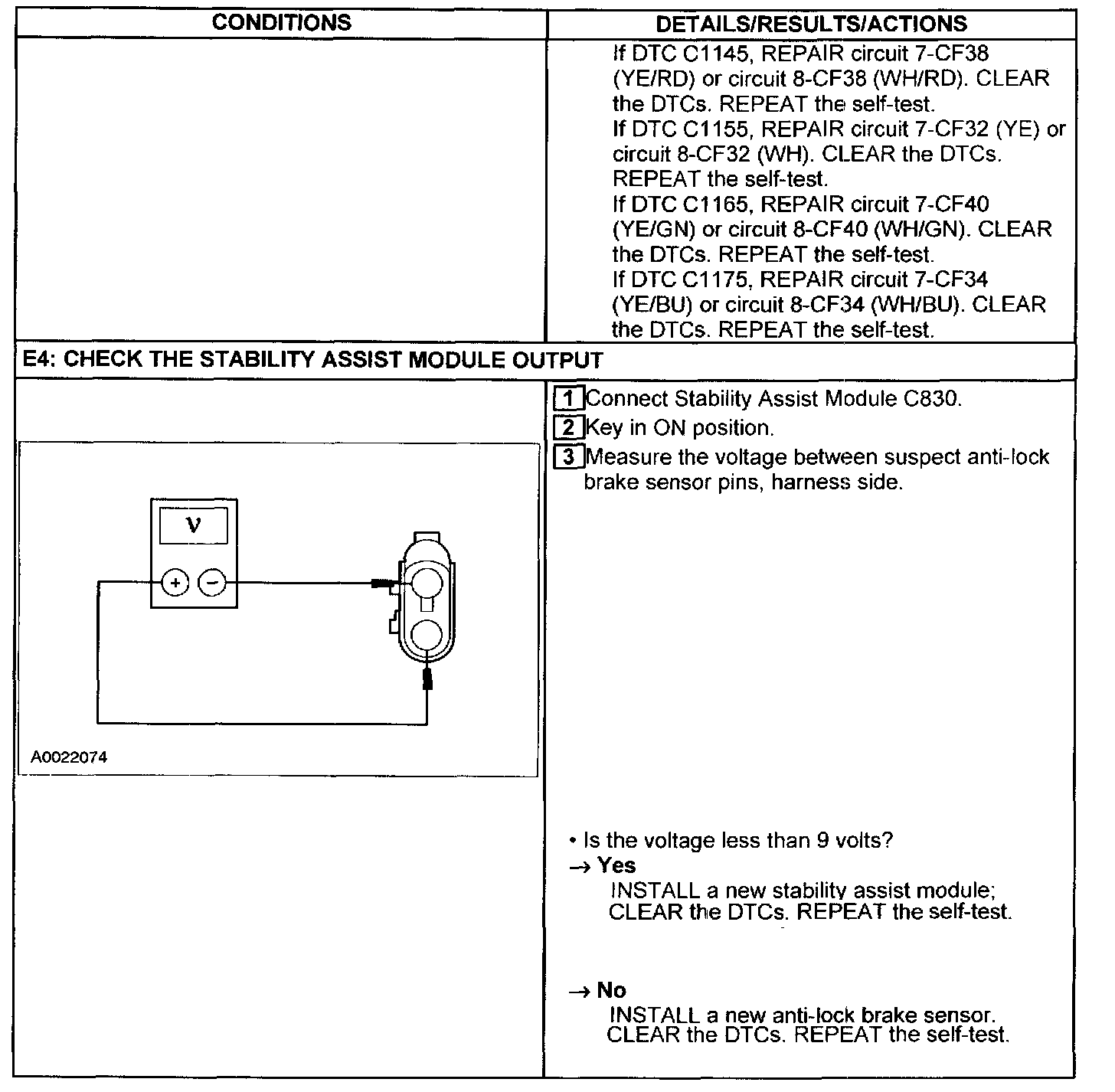

Test E3-E4:
