Home >> Ford >> 2002 >> Focus ZX3 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution Diagrams >> G56

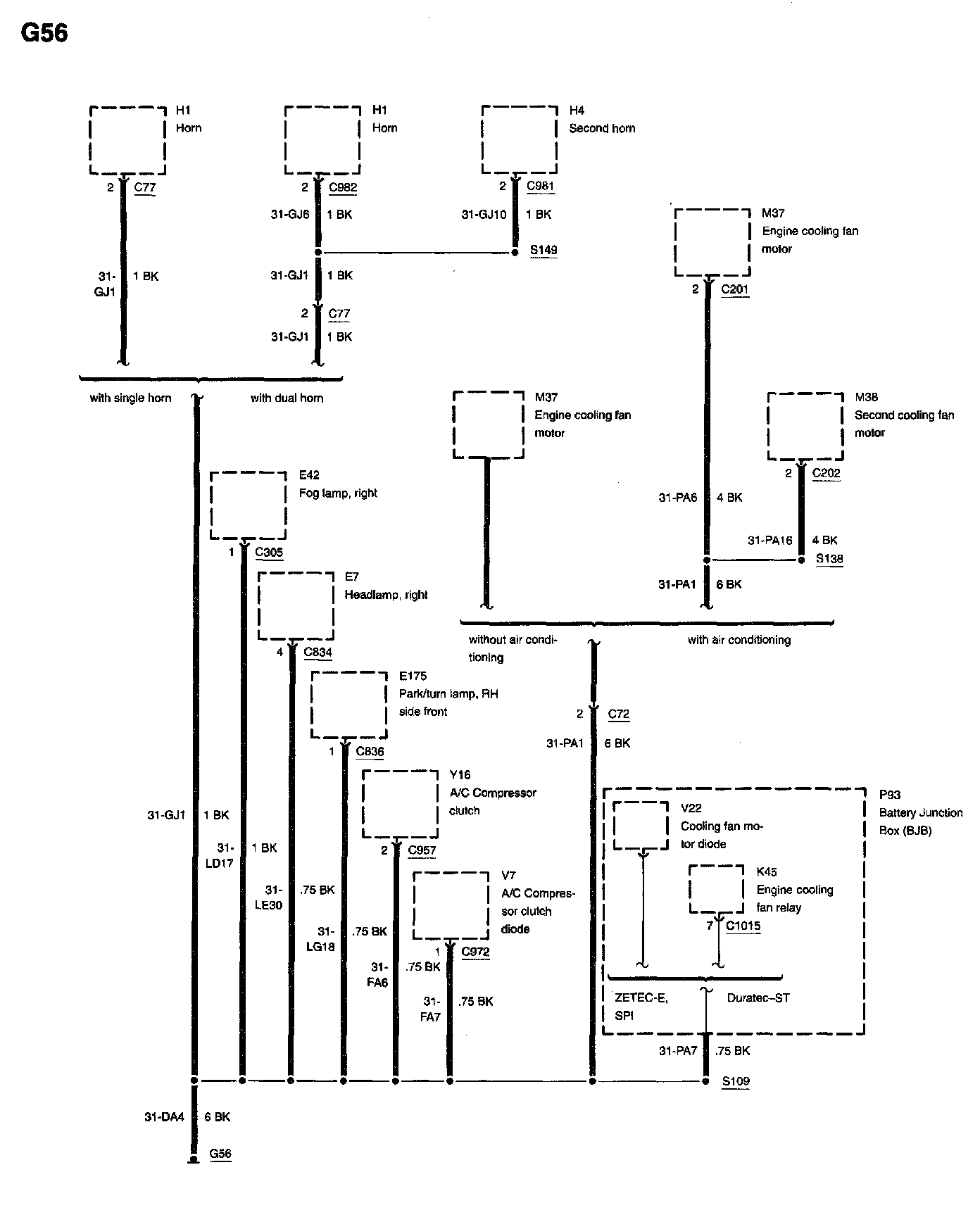

G56

Diagram 700-04-00-18:
