Home >> Ford >> 2002 >> Focus ZX3 L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Fuse Circuits >> F34

F34

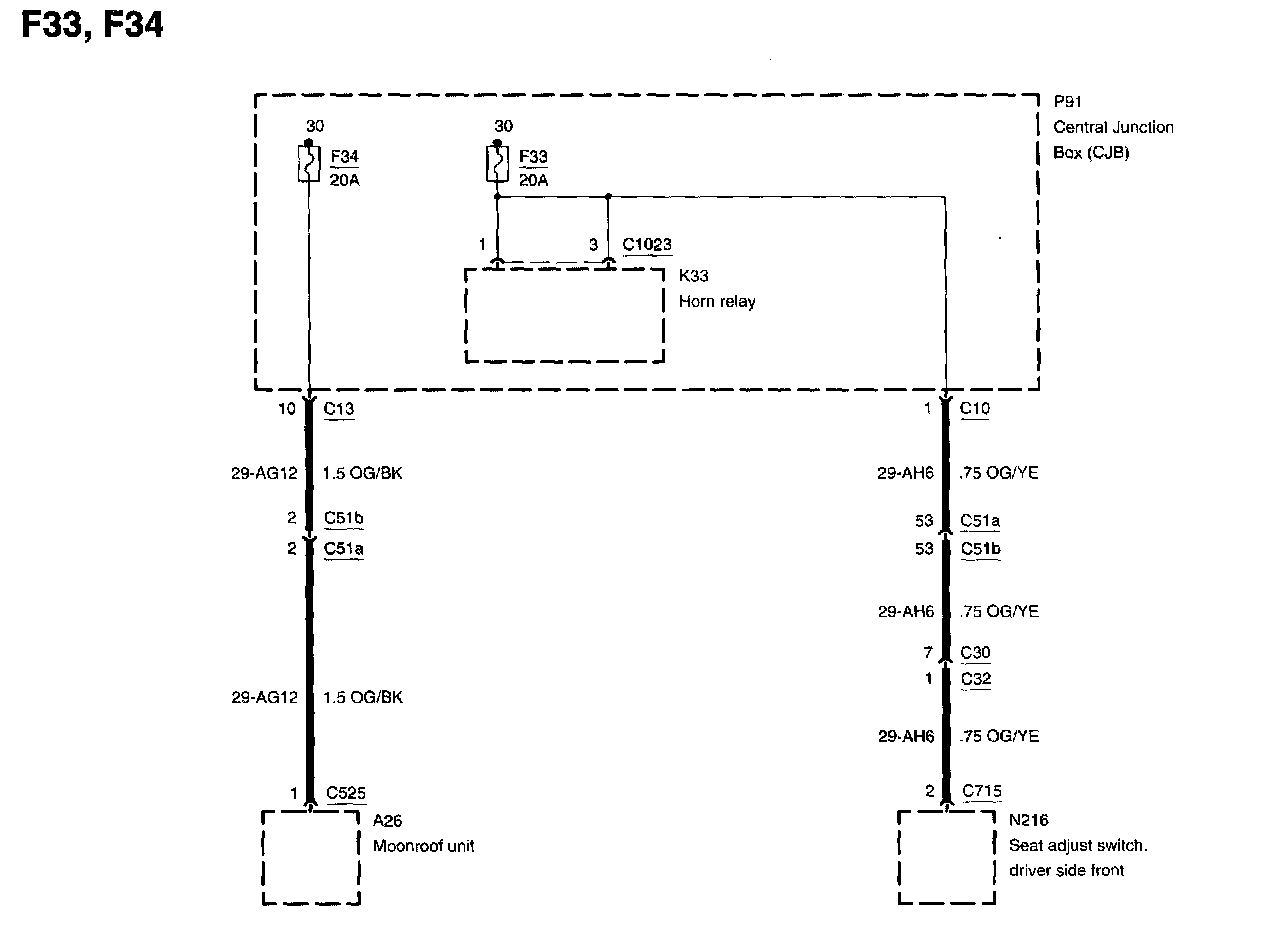

Diagram 700-03-00-10:
