Initial Inspection - Instrument Cluster

1 Verify the customer concern by operating the system. Observe the indicators, warning displays, and gauges to determine if they are operating correctly with the ignition switch:
^ in the ON position with the engine off.
^ in the START position before the ignition switch is released.
^ in the ON position with the engine running.

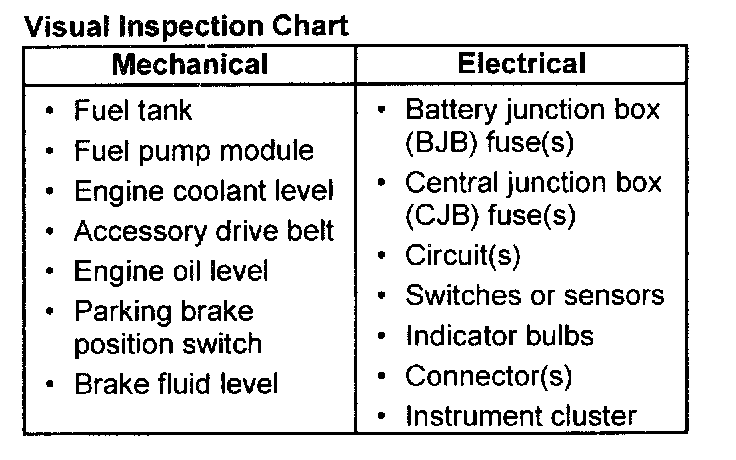

Visual Inspection Chart:

2. Visually inspect for obvious signs of mechanical and electrical damage.
3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern remains after the inspection, connect the diagnostic tool to the Data Link Connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
^ check that the program card is correctly installed.
^ check the connections to the vehicle.
^ check the ignition switch position.
5. If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
6. Carry out the DATA LINK DIAGNOSTICS TEST. If the diagnostic tool responds with:
^ CKT914, CKT915 or CKT70 = ALL ECUS NO RESP/NOT EQUIP, REFER to Module Communications Network (Information Bus).
^ NO RESP/NOT EQUIP for instrument cluster, GO to Pinpoint Test A. Test A: No Communication With the Instrument Cluster
^ SYSTEM PASSED, retrieve and record the continuous DTCs, erase the continuous DTCs and carry out self-test diagnostics for the instrument cluster.
7. If the DTCs retrieved are related to the concern, go to the Instrument Cluster Diagnostic Trouble Code (DTC) Index. Diagnostic Trouble Code Tests and Associated Procedures
8. If no DTCs related to the concern are retrieved, proceed to the Instrument Cluster Dealer Test Mode to continue diagnostics. Component Tests and General Diagnostics
