Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
Focus ZX3 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Barometric Pressure Sensor
>>
Diagrams

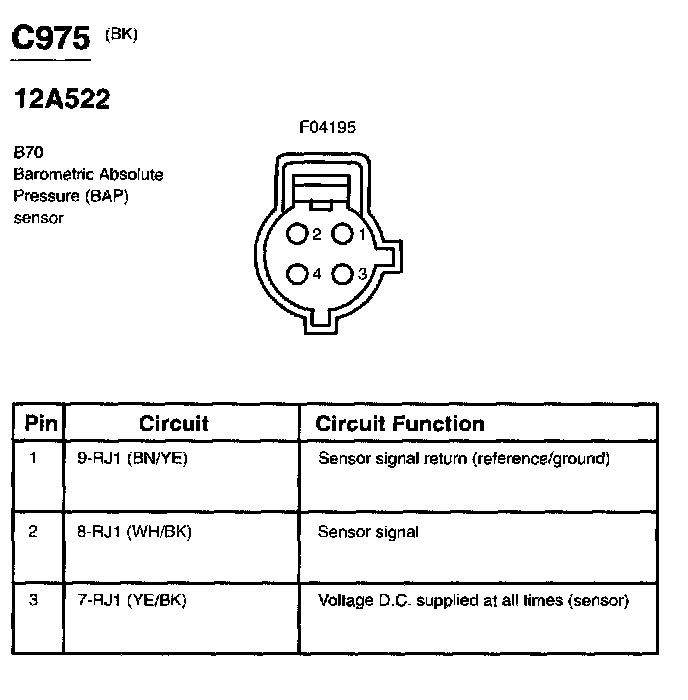

Barometric Pressure Sensor: Diagrams
