Air Cleaner Fresh Air Duct/Hose: Service and Repair

REMOVAL
1. Remove the air cleaner.

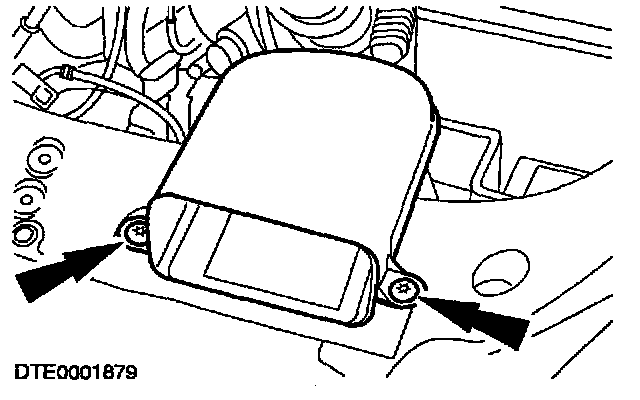

2. Detach the air cleaner intake pipe front fixing.

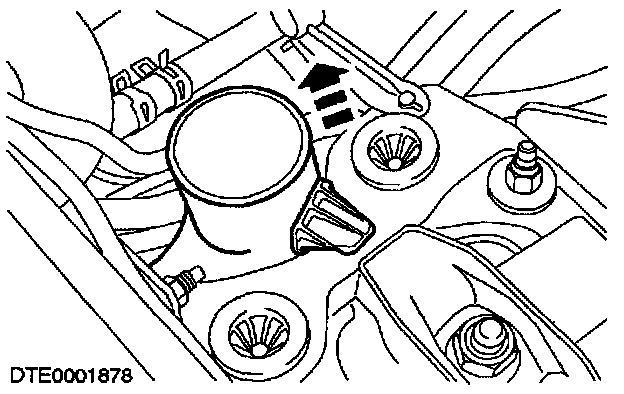

3. Detach the air cleaner intake pipe rear fixing from the engine mounting bracket.







4. Remove the air cleaner intake pipe.

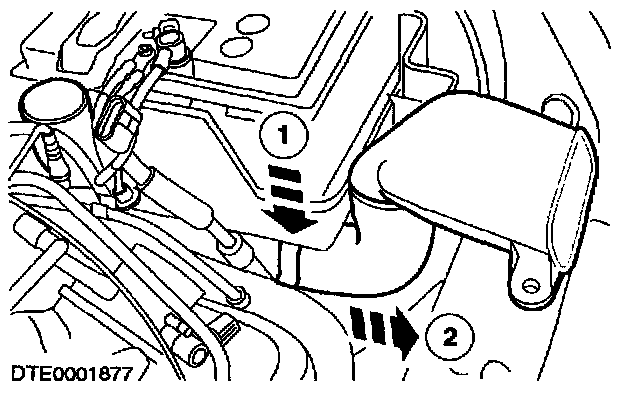

1. Detach the pipe.
2. Remove the pipe.

INSTALLATION
1. To install, reverse the removal procedure.
