F44

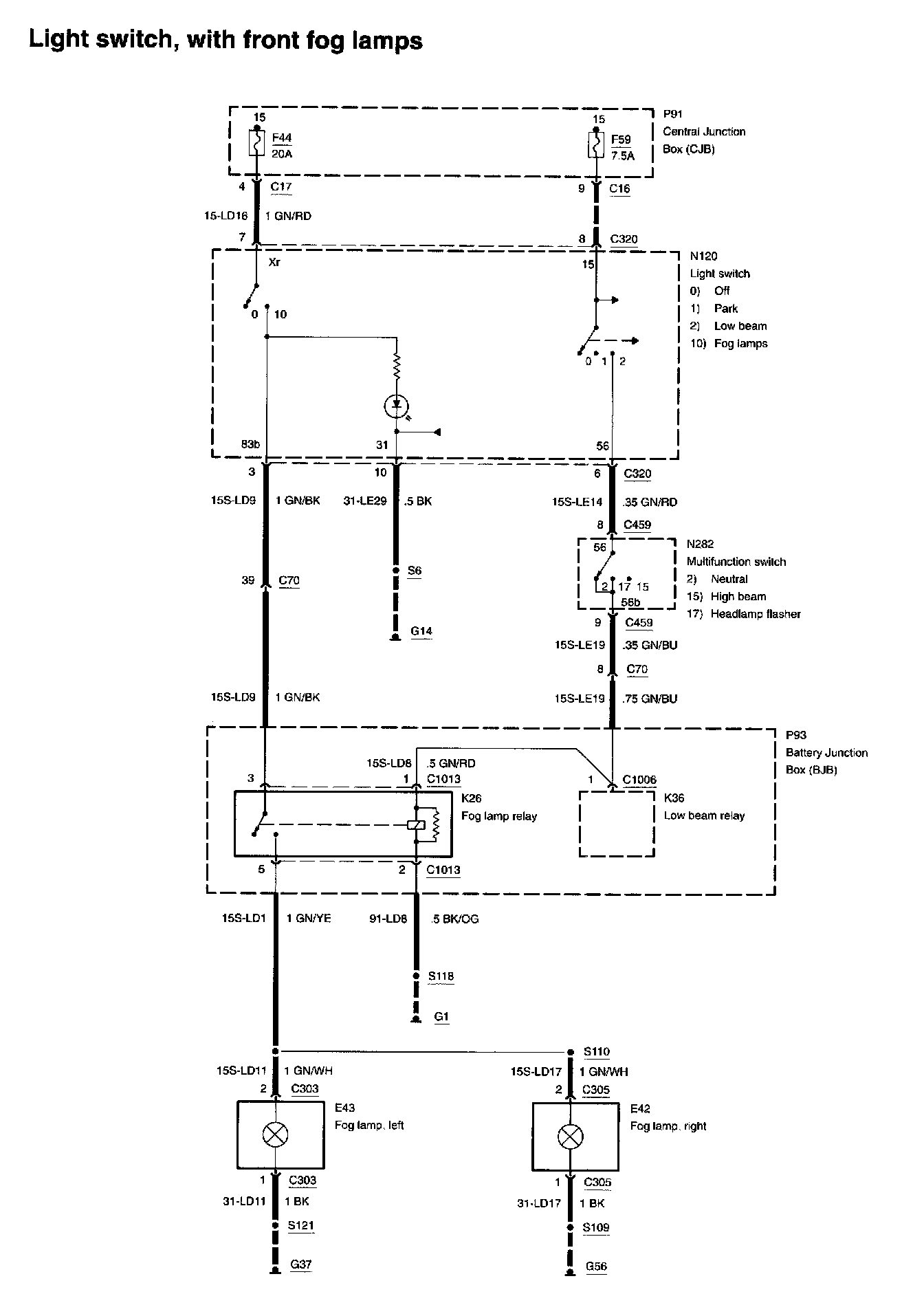

Diagram 700-03-00-15:






Diagram 700-02-00-16:






Diagram 700-02-00-11:






Diagram 700-02-00-10:






Diagram 700-02-00-1:
