Test A Transmission/Transaxle Connector Layouts
Transmission/Transaxle Connector Layouts

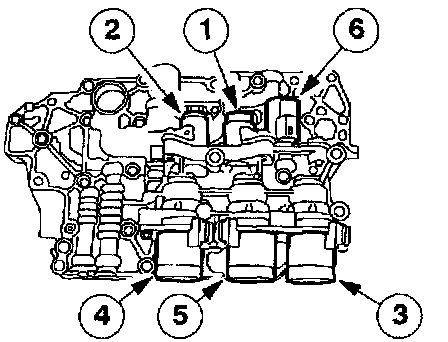

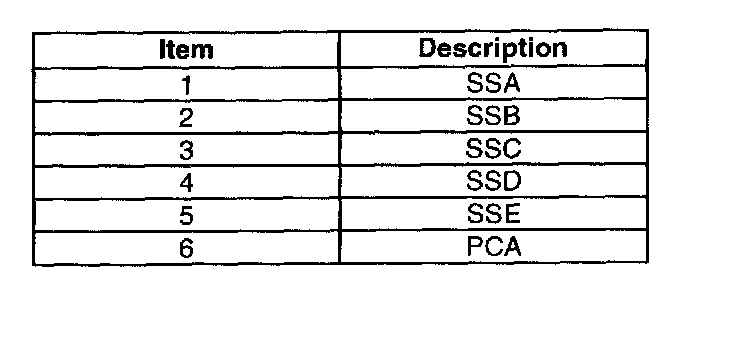

Transaxle Solenoid Location

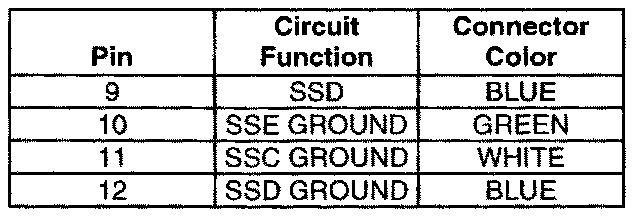

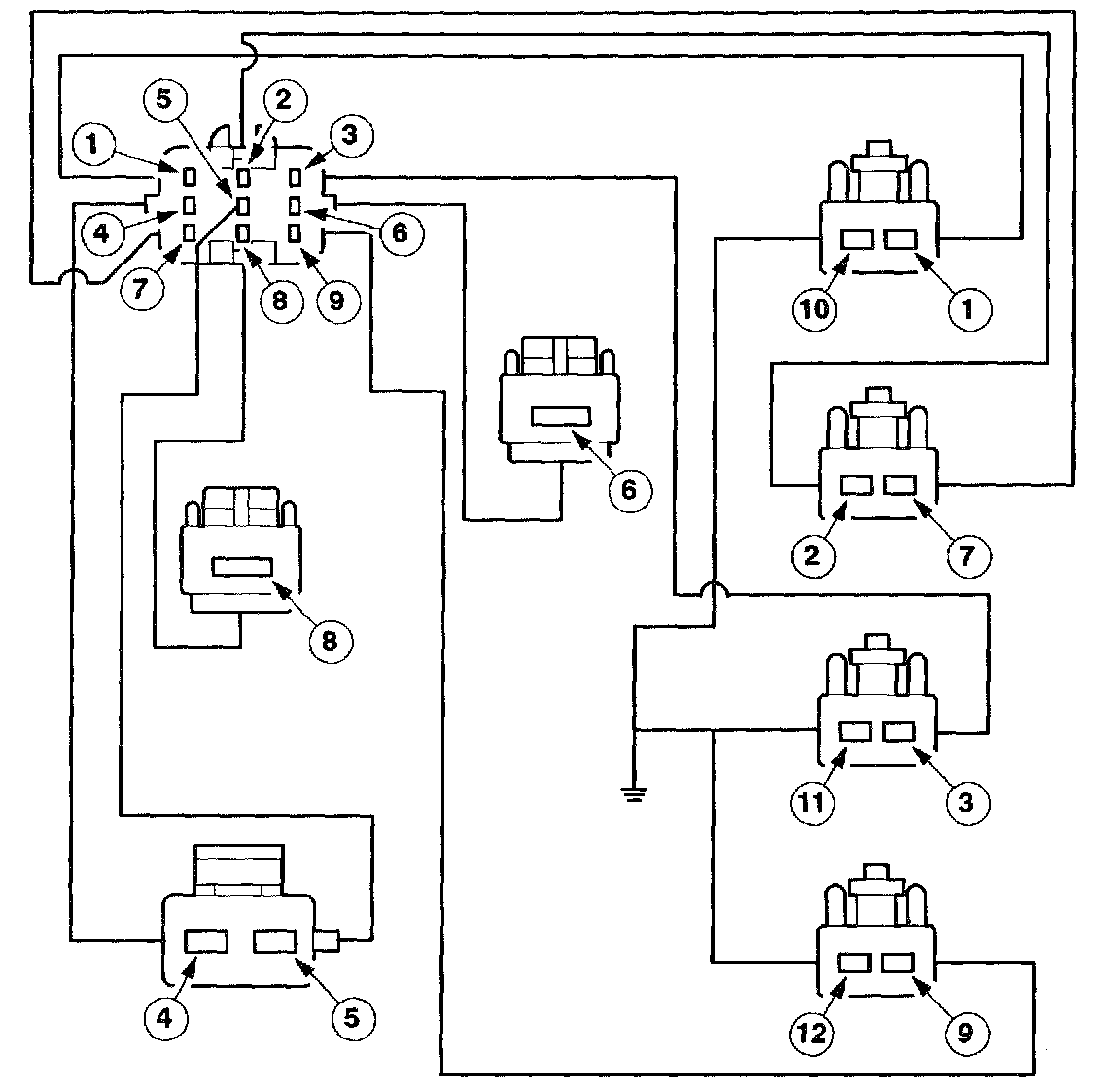

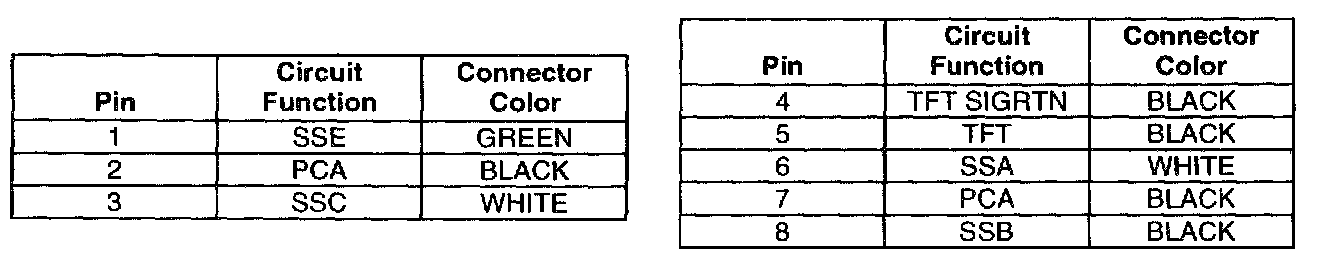

Transaxle Internal Harness Connectors

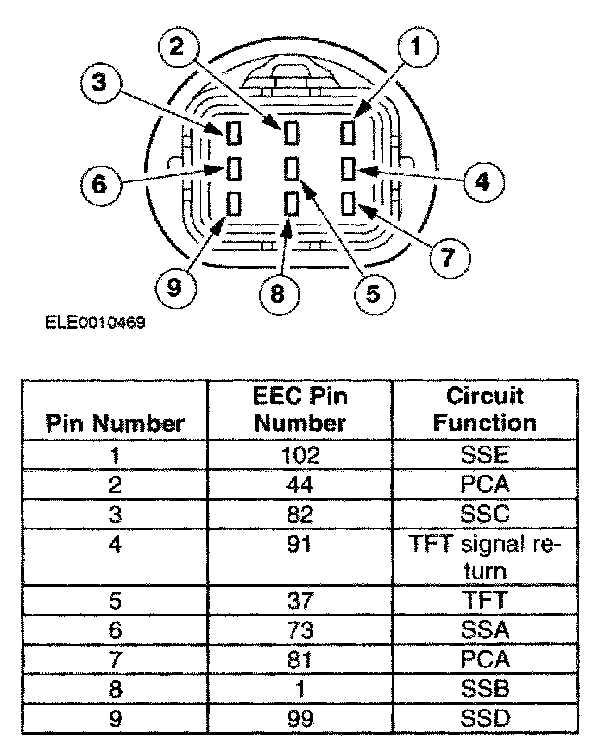

Transaxle Vehicle Harness Connector

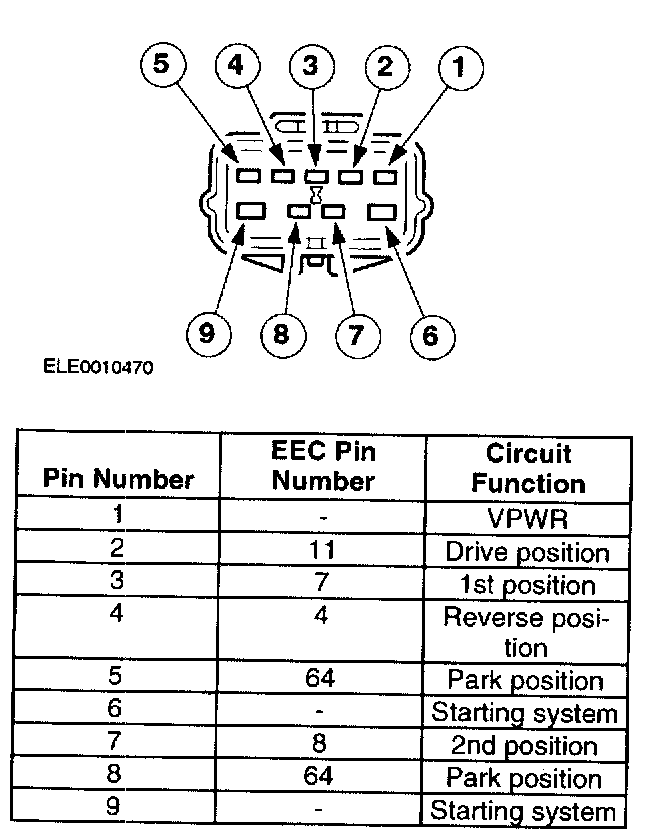

Transmission Range (TR) Sensor Vehicle Harness Connector

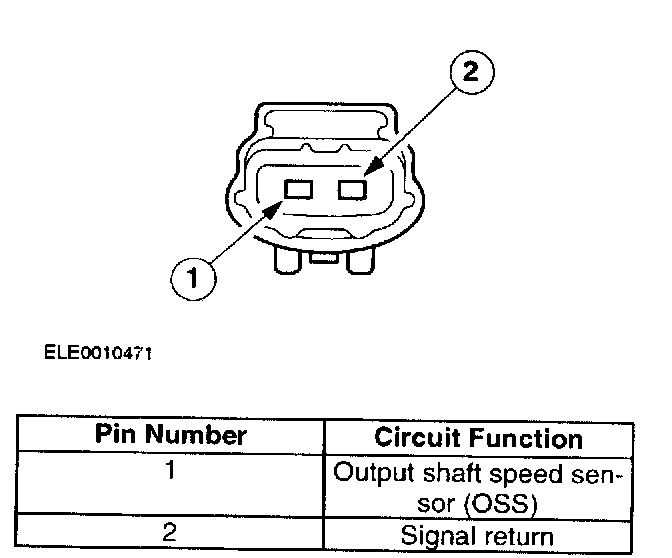

Output Shaft Speed Sensor (OSS) Vehicle Harness Connector

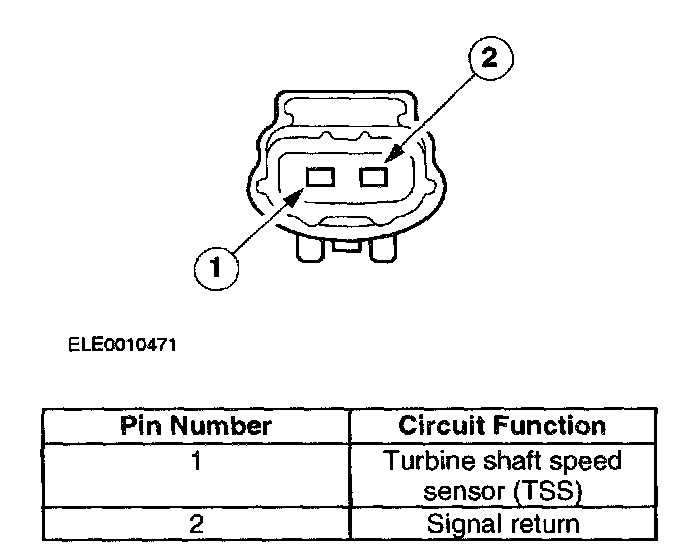

Turbine Shaft Speed (TSS) Sensor Vehicle Harness Connector

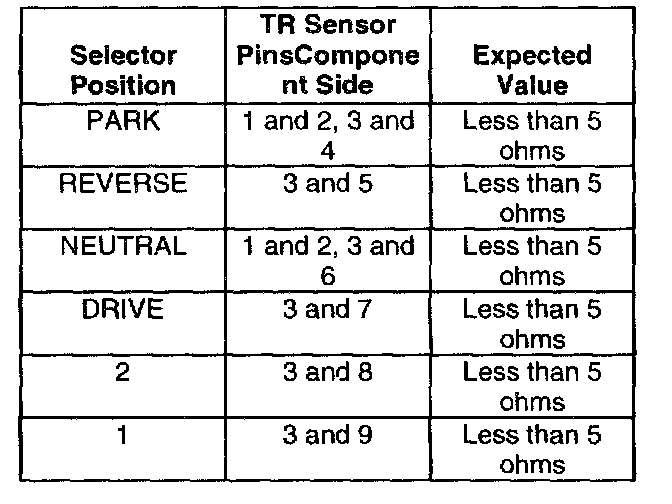

Transmission Range (TR) Sensor Diagnosis Chart
