Test A: Shift and Torque Converter Clutch Solenoids (ONLY)

Pinpoint Test A - Shift and Torque Converter Clutch Solenoids (ONLY)





Test A1-A2

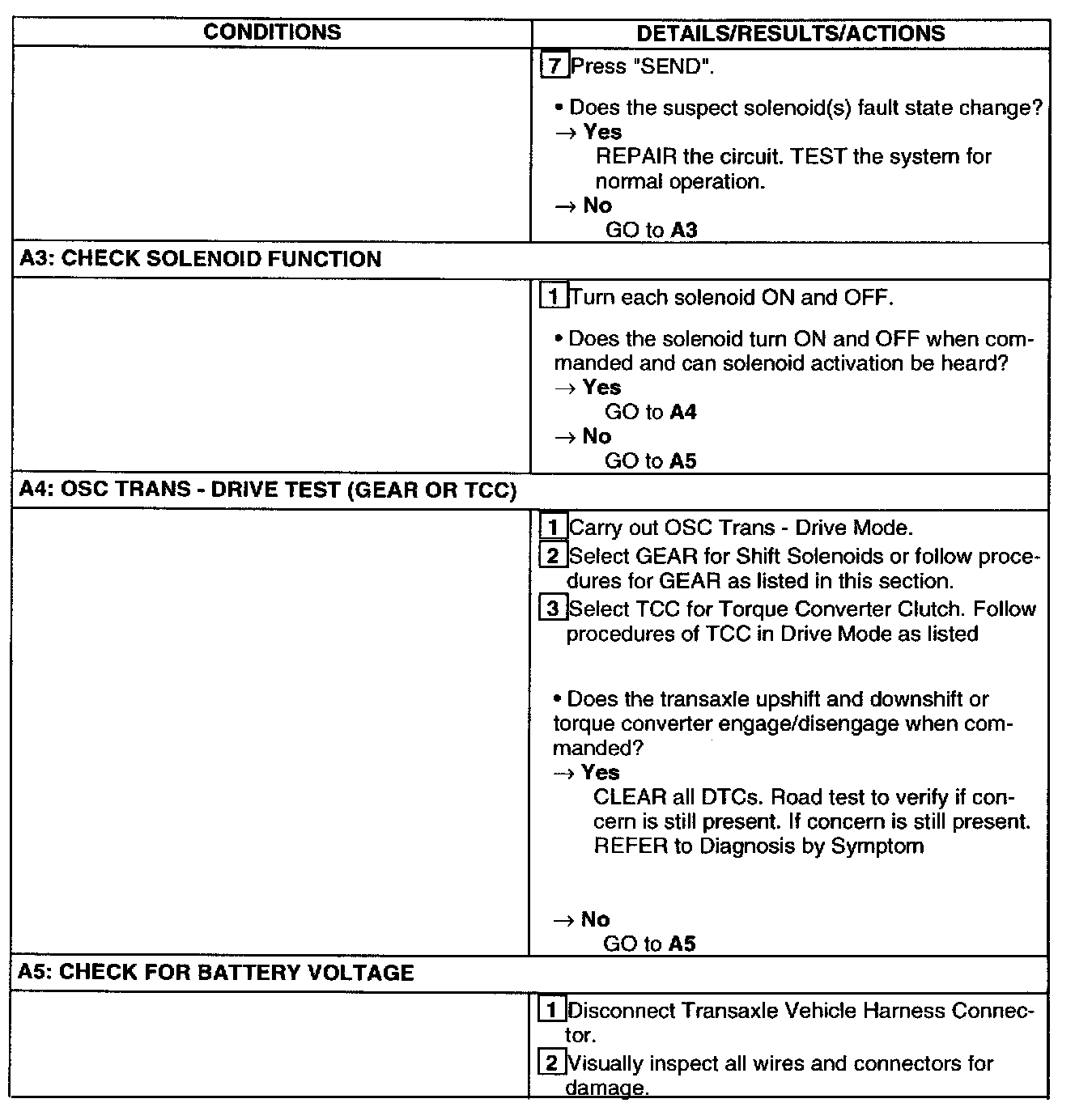

Test A3-A5

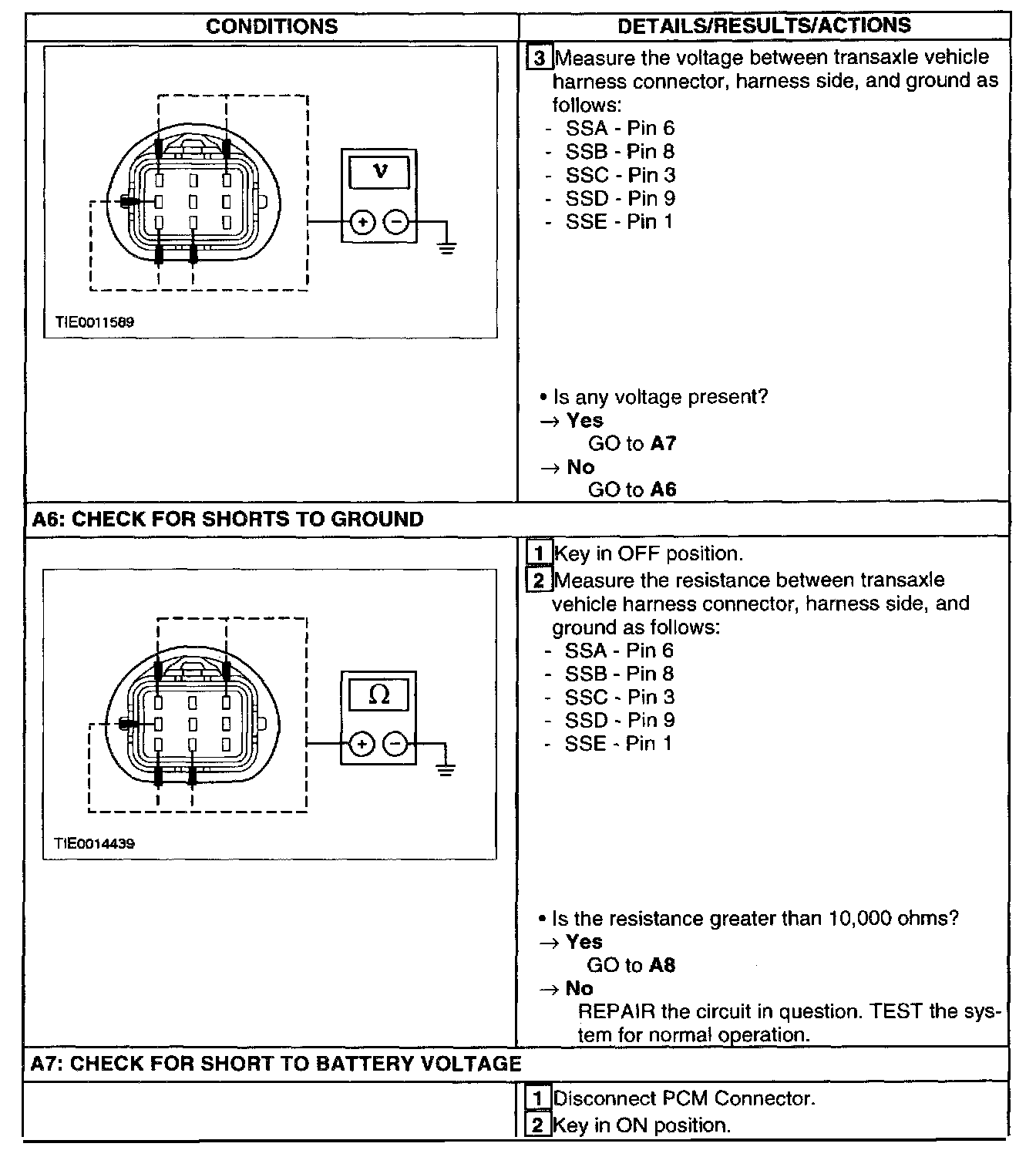

Test A6-A7

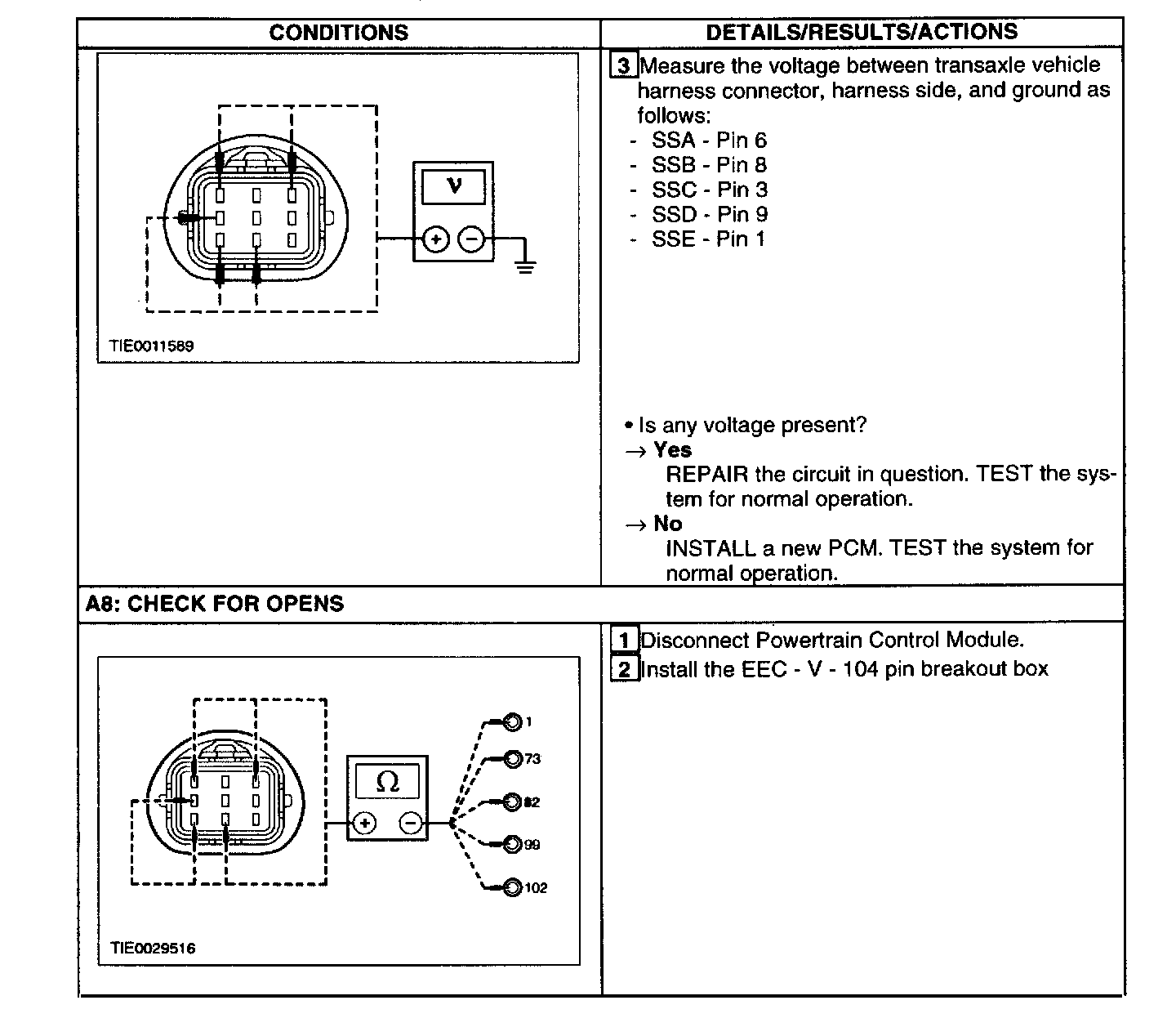

Test A8

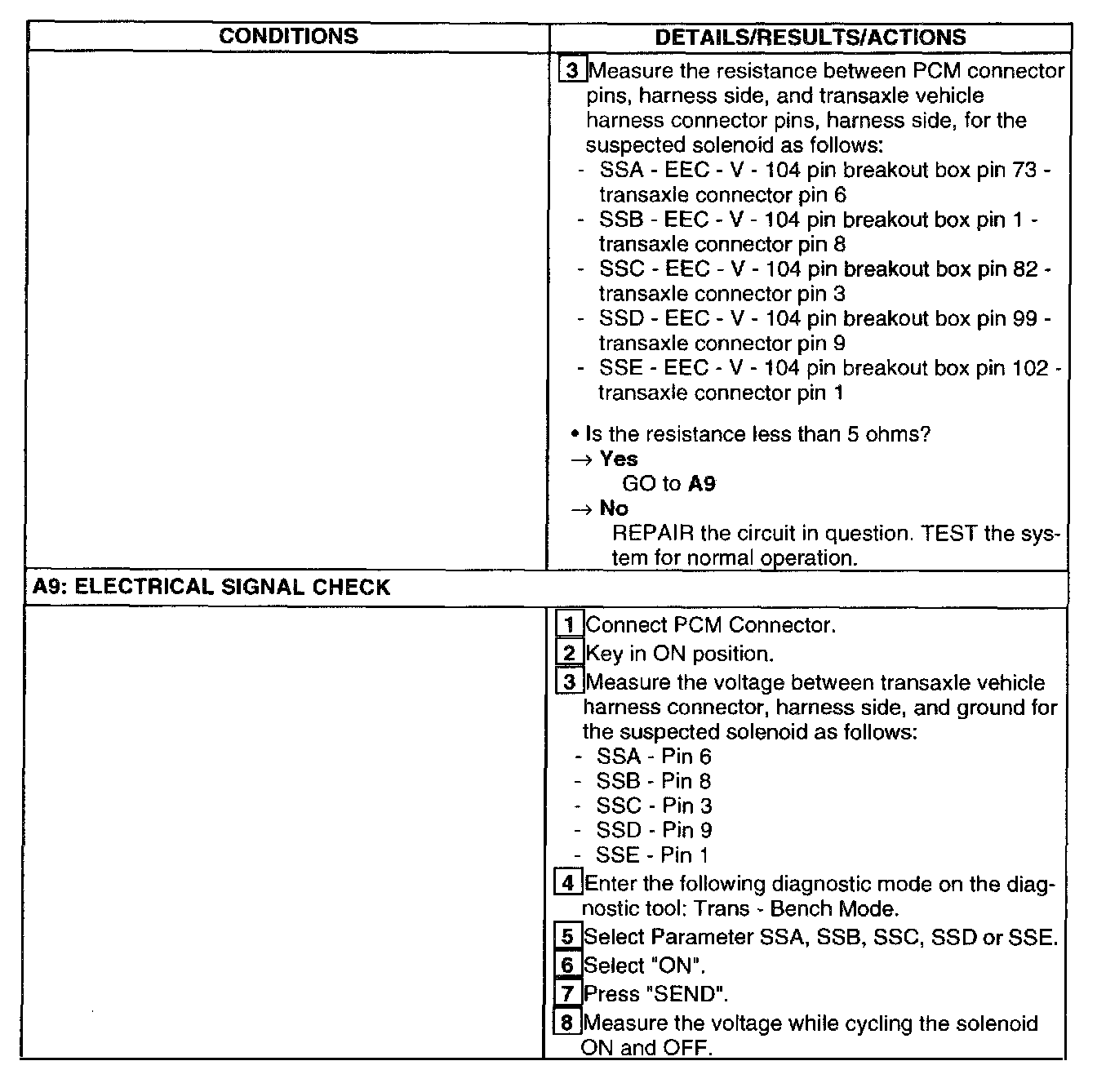

Test A9

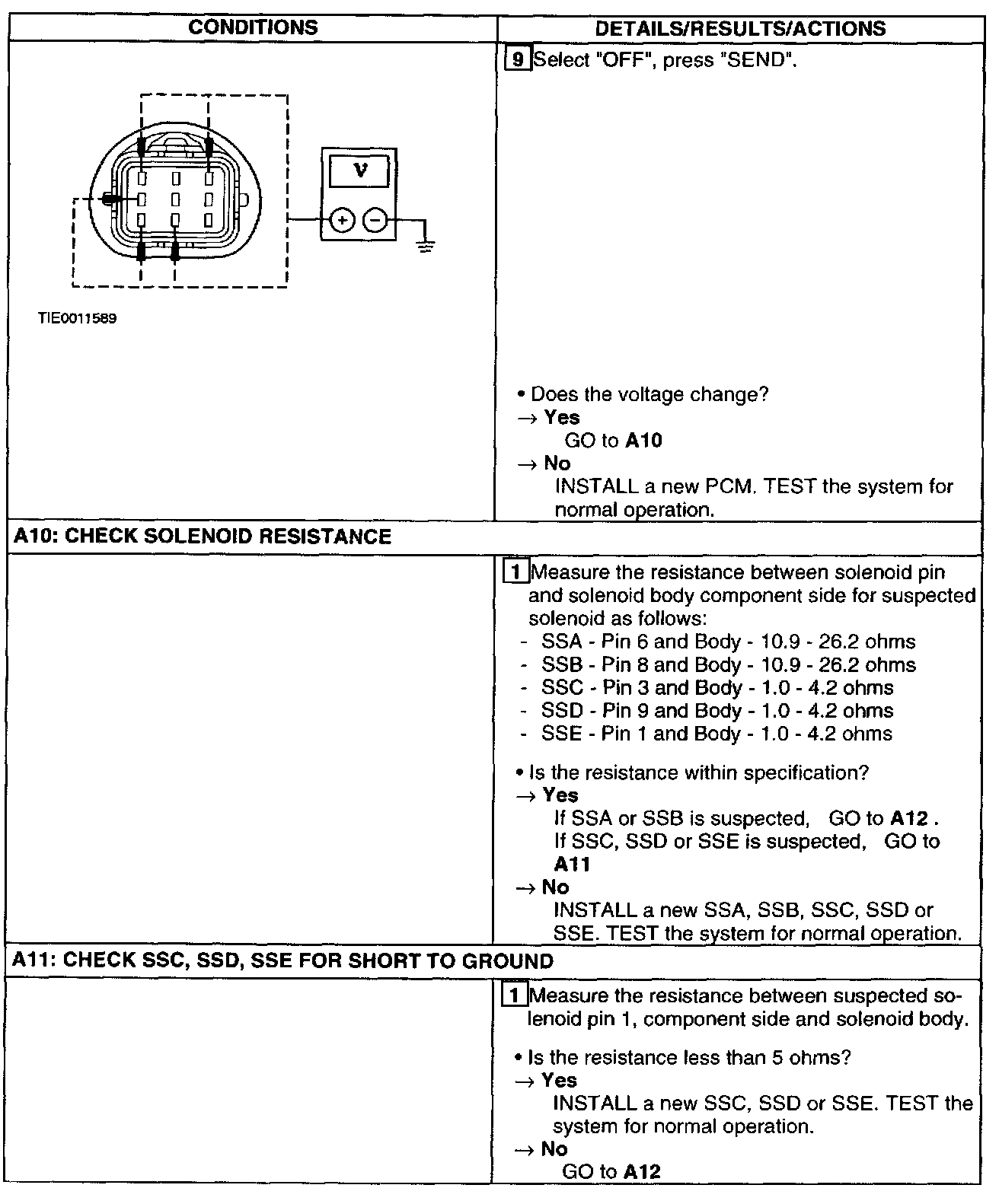

Test A10-A11

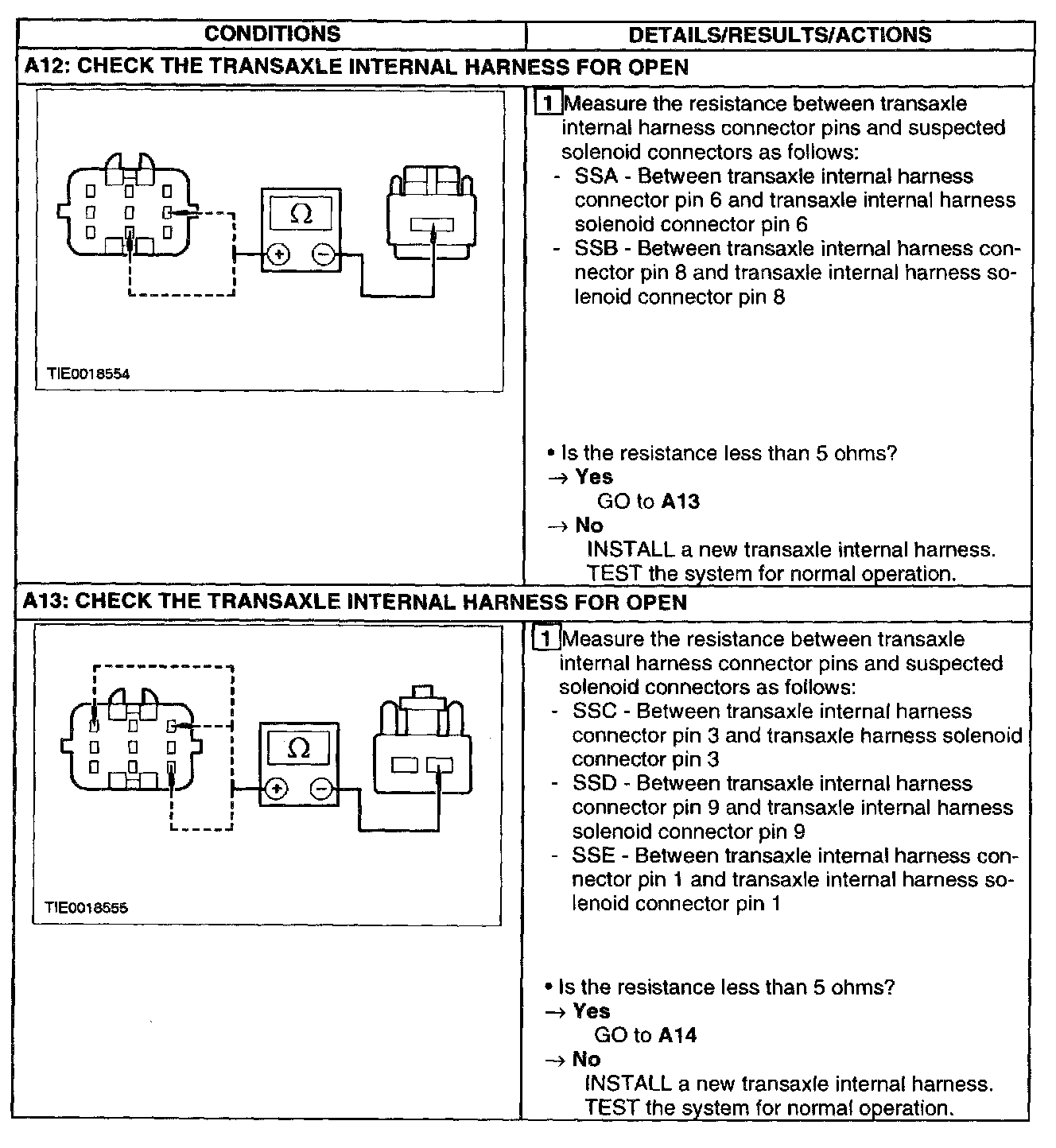

Test A12-A13

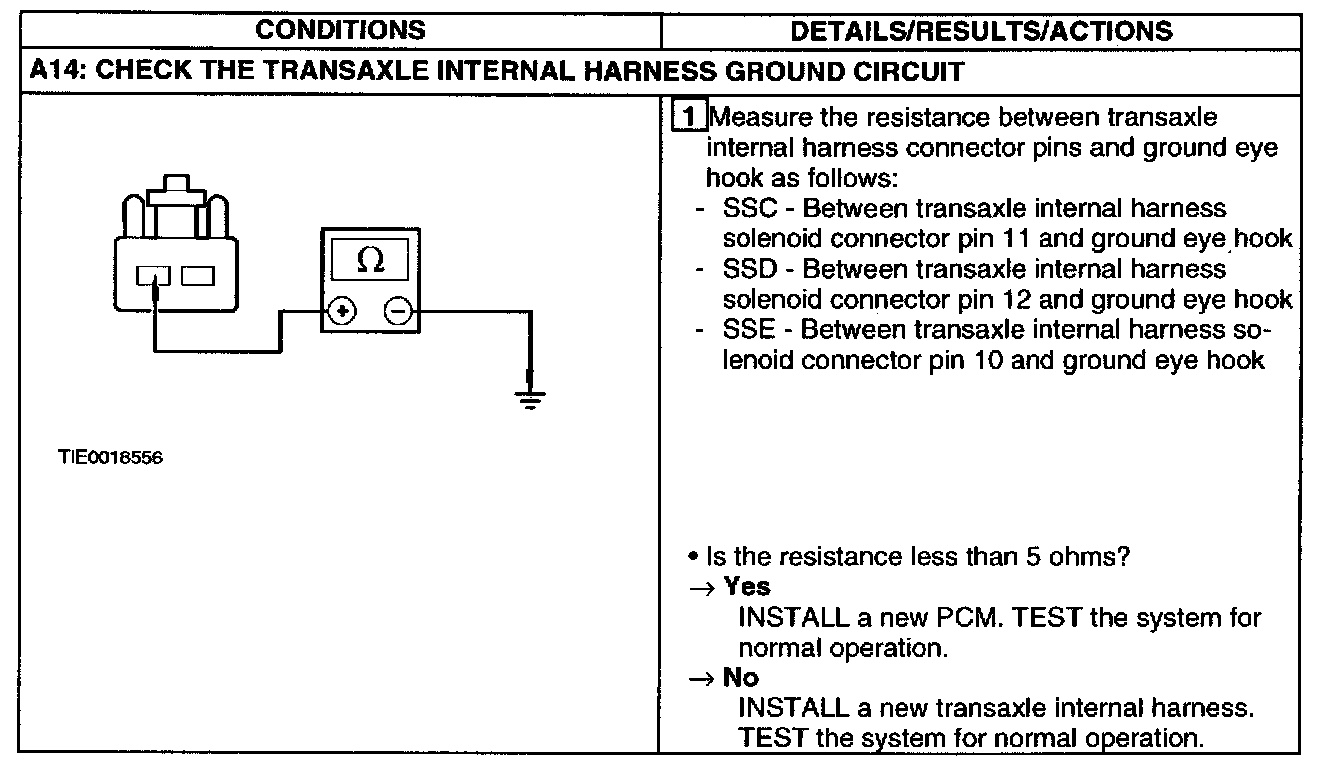

Test A14
